Home
>>
Lexus
>>
2008
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Angle Sensor
Steering Angle Sensor

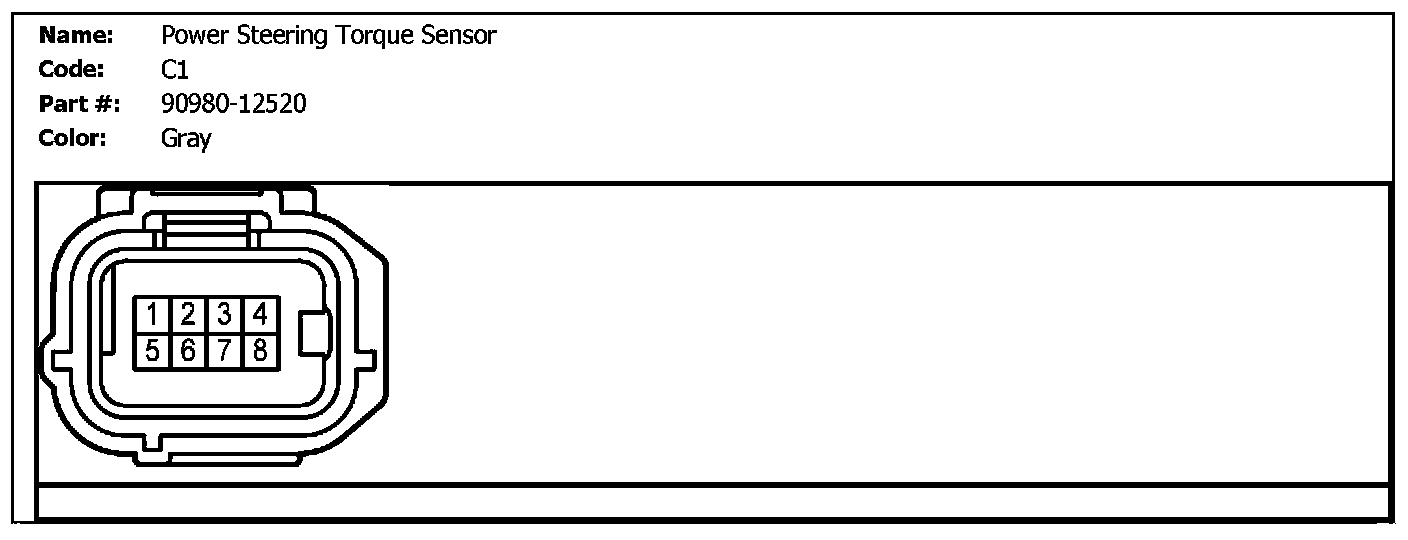

C1 (Power Steering Torque Sensor):

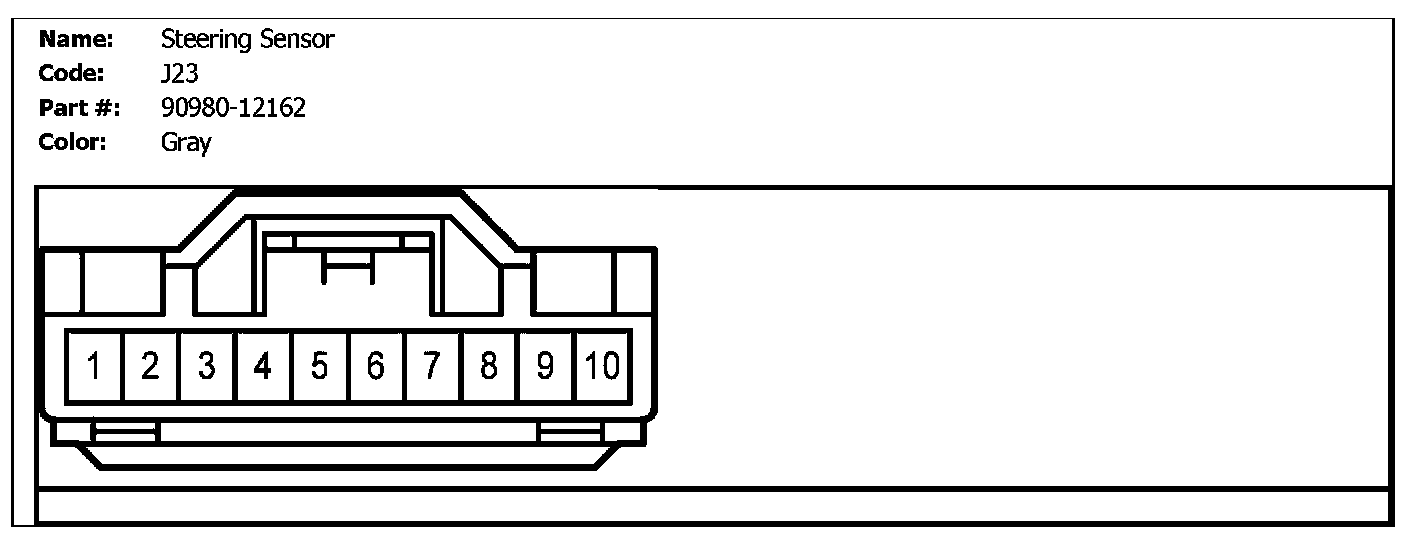

J23 (Steering Sensor):
