GS 460 V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Spark Plug
>>
Service and Repair
>>
Components
Components

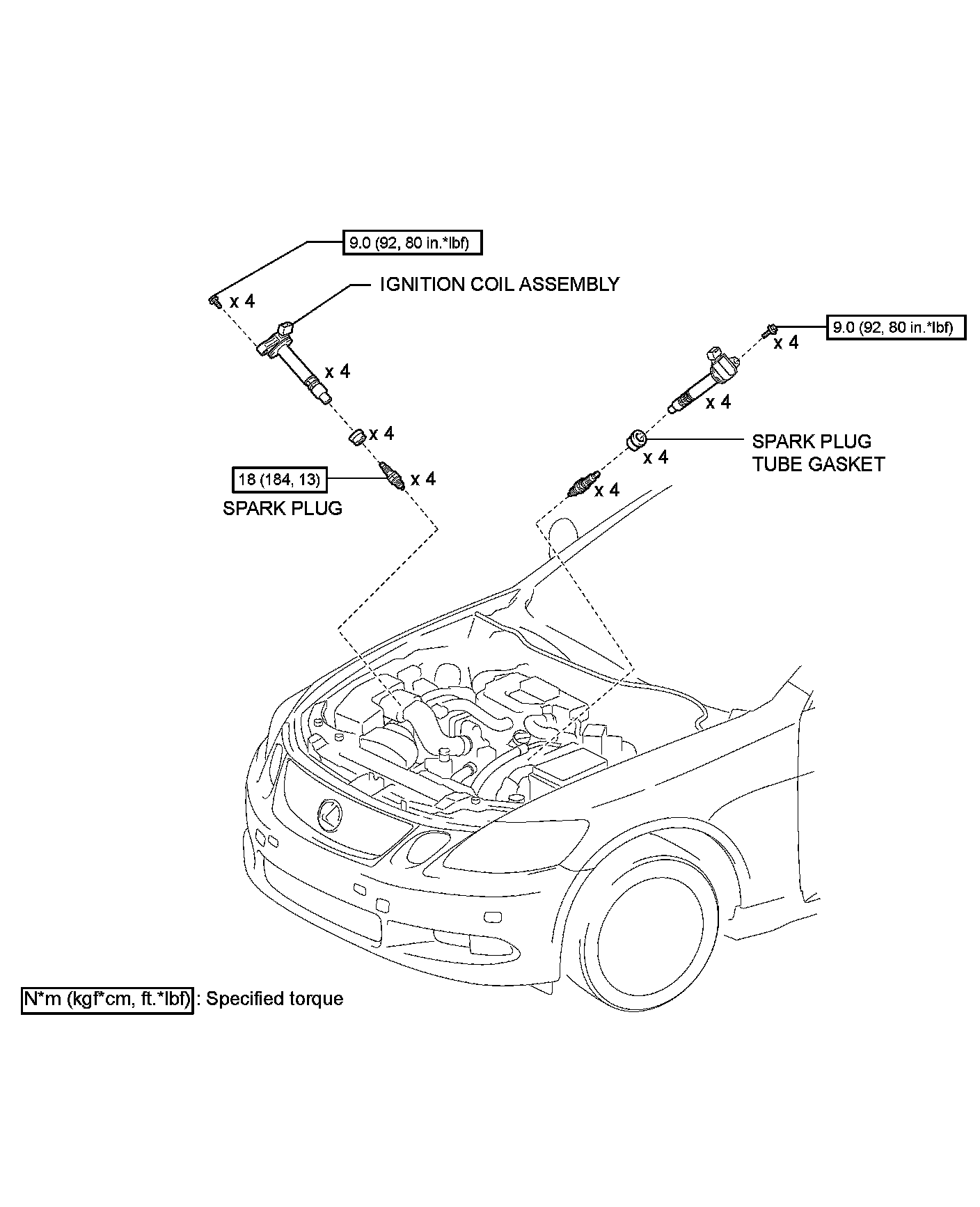

1UR-FSE IGNITION: IGNITION COIL AND
SPARK PLUG
: COMPONENTS
ILLUSTRATION
