Global Positioning System Module
Global Positioning System Module

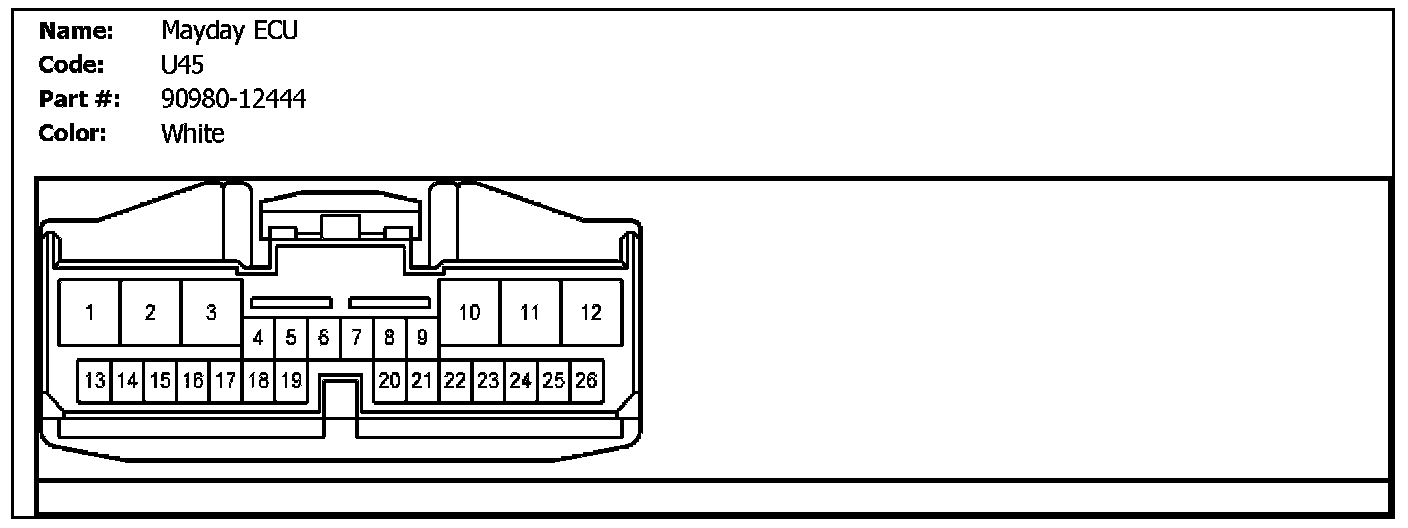

U45 (Mayday ECU):

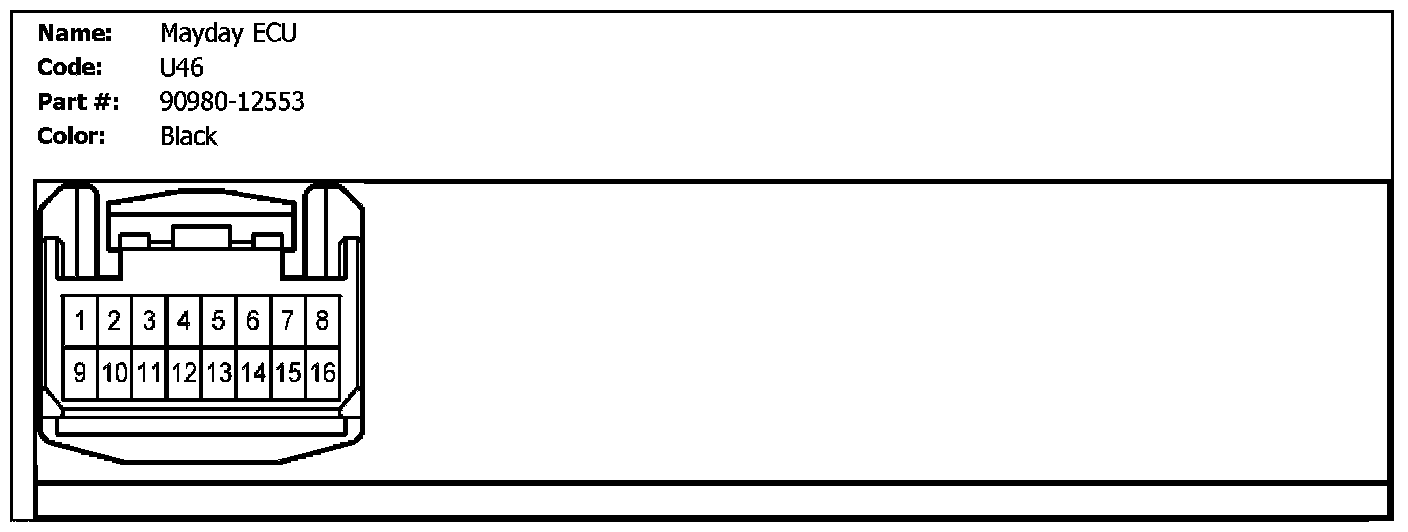

U46 (Mayday ECU):
