Components

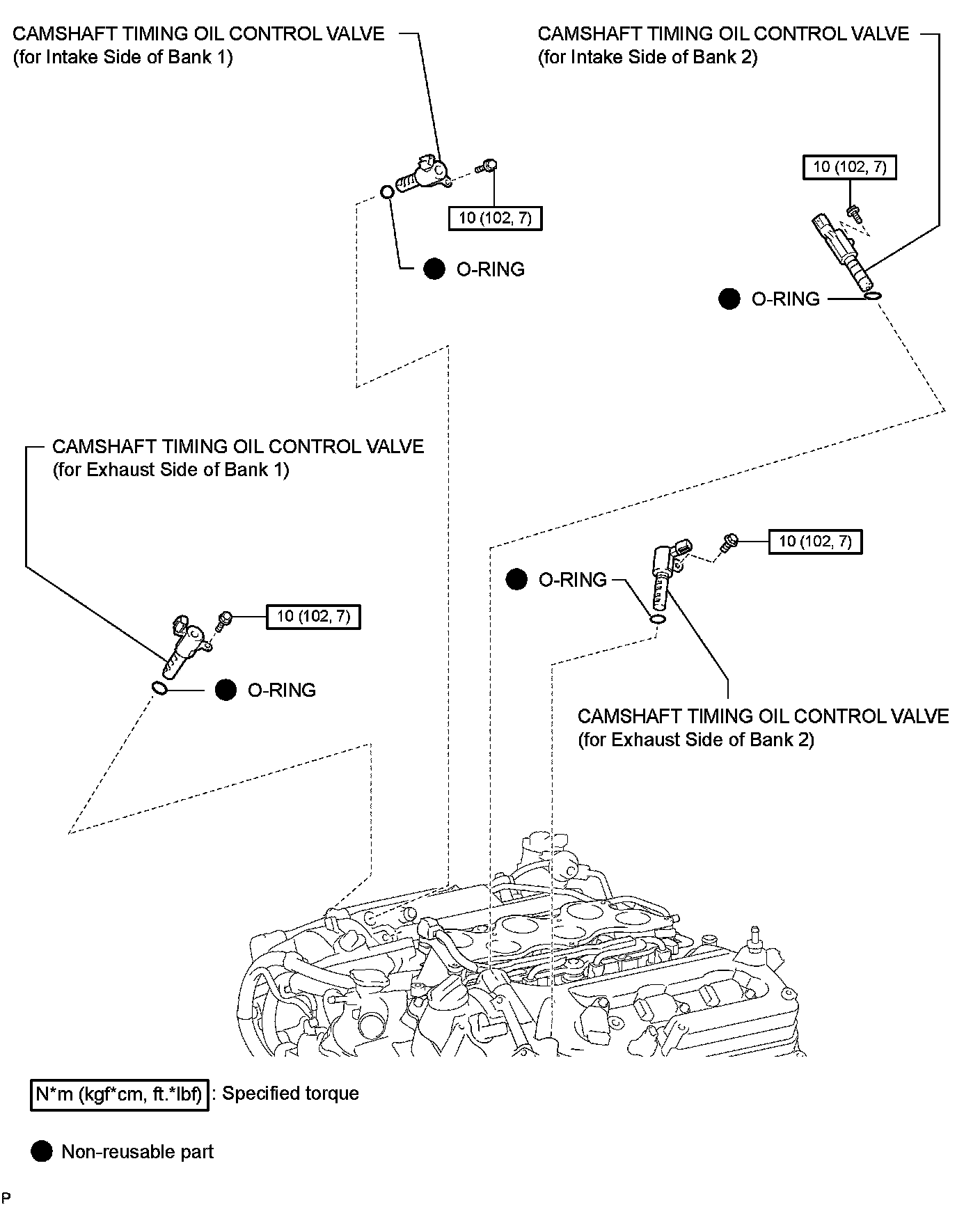

2GR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: COMPONENTS

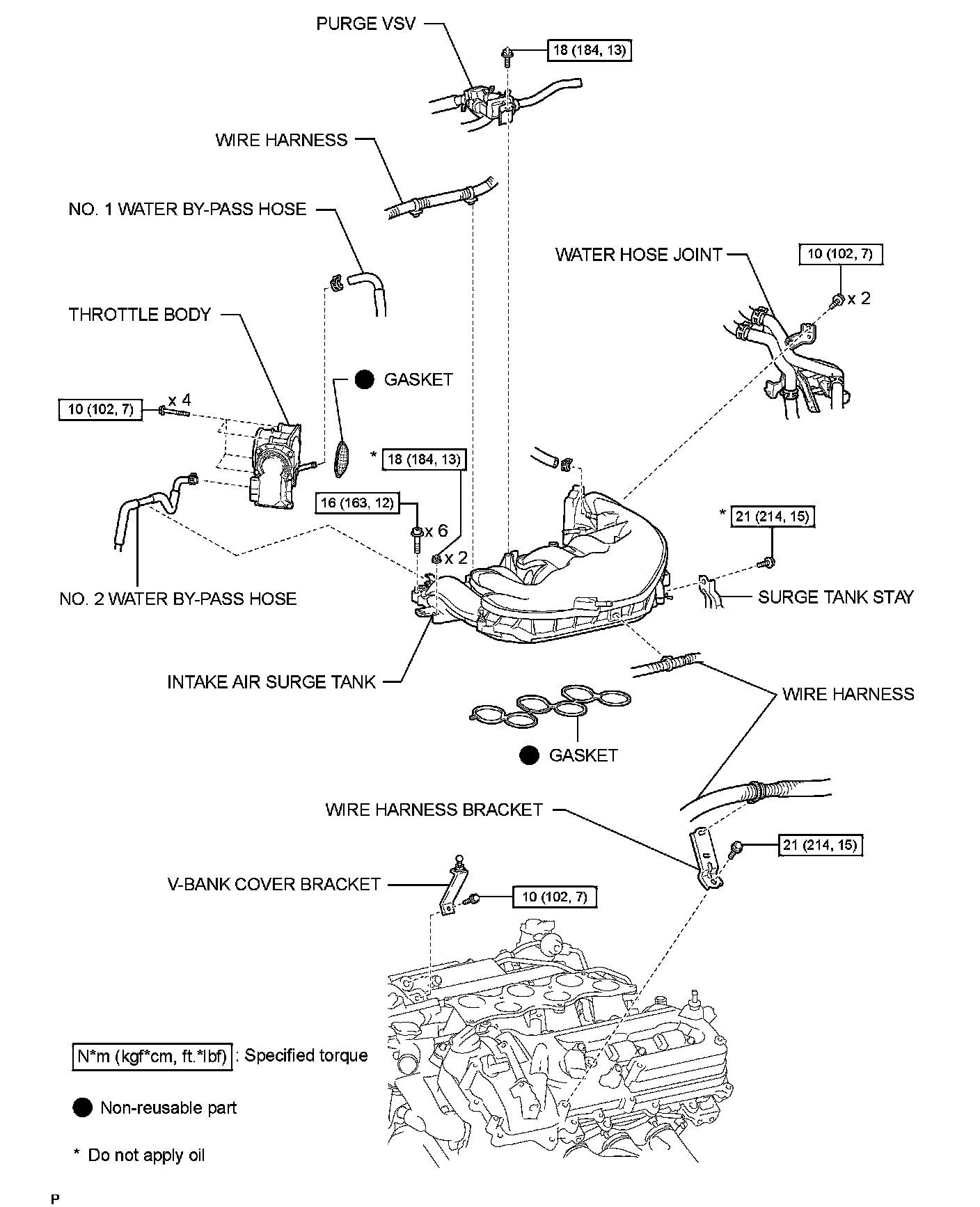

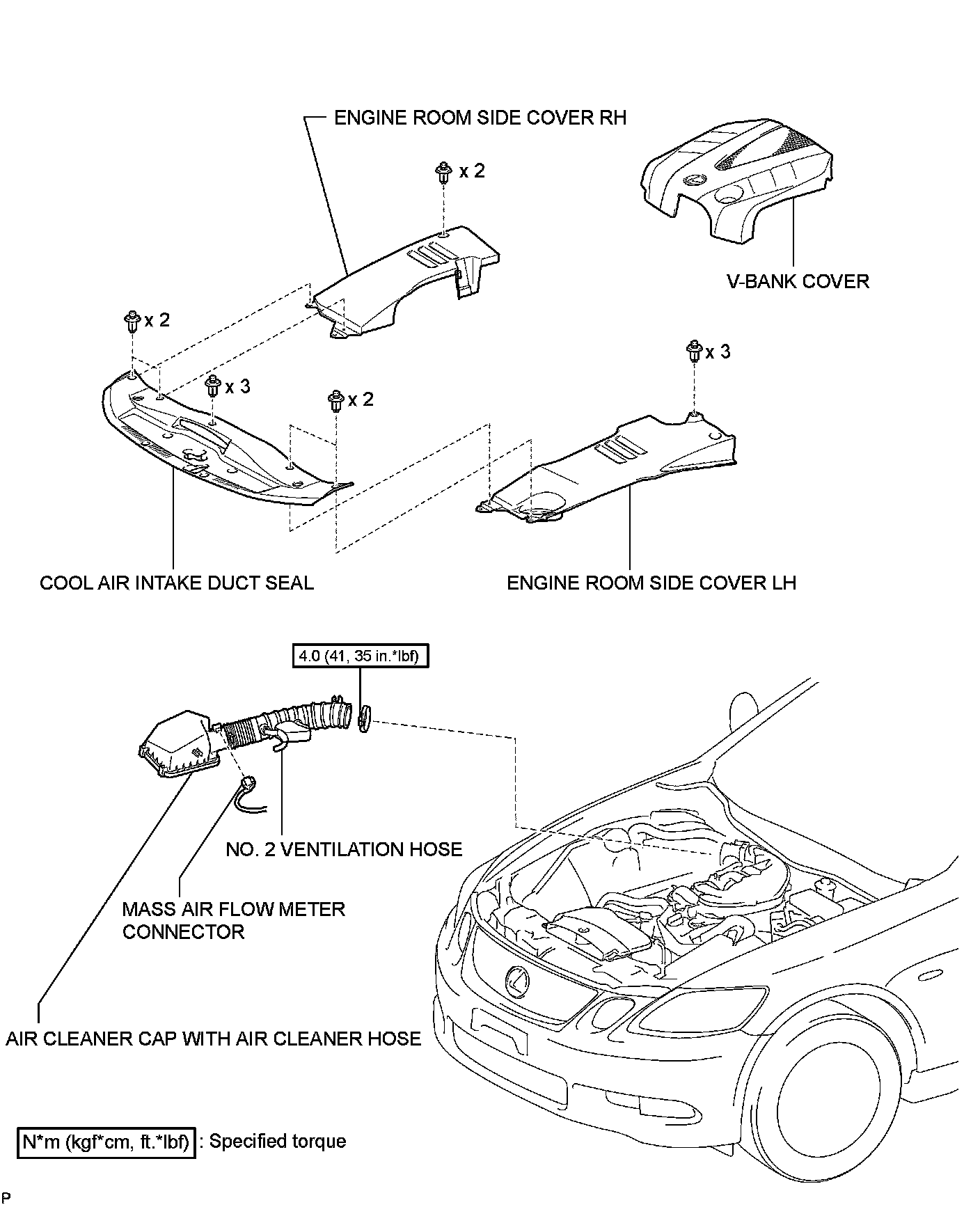

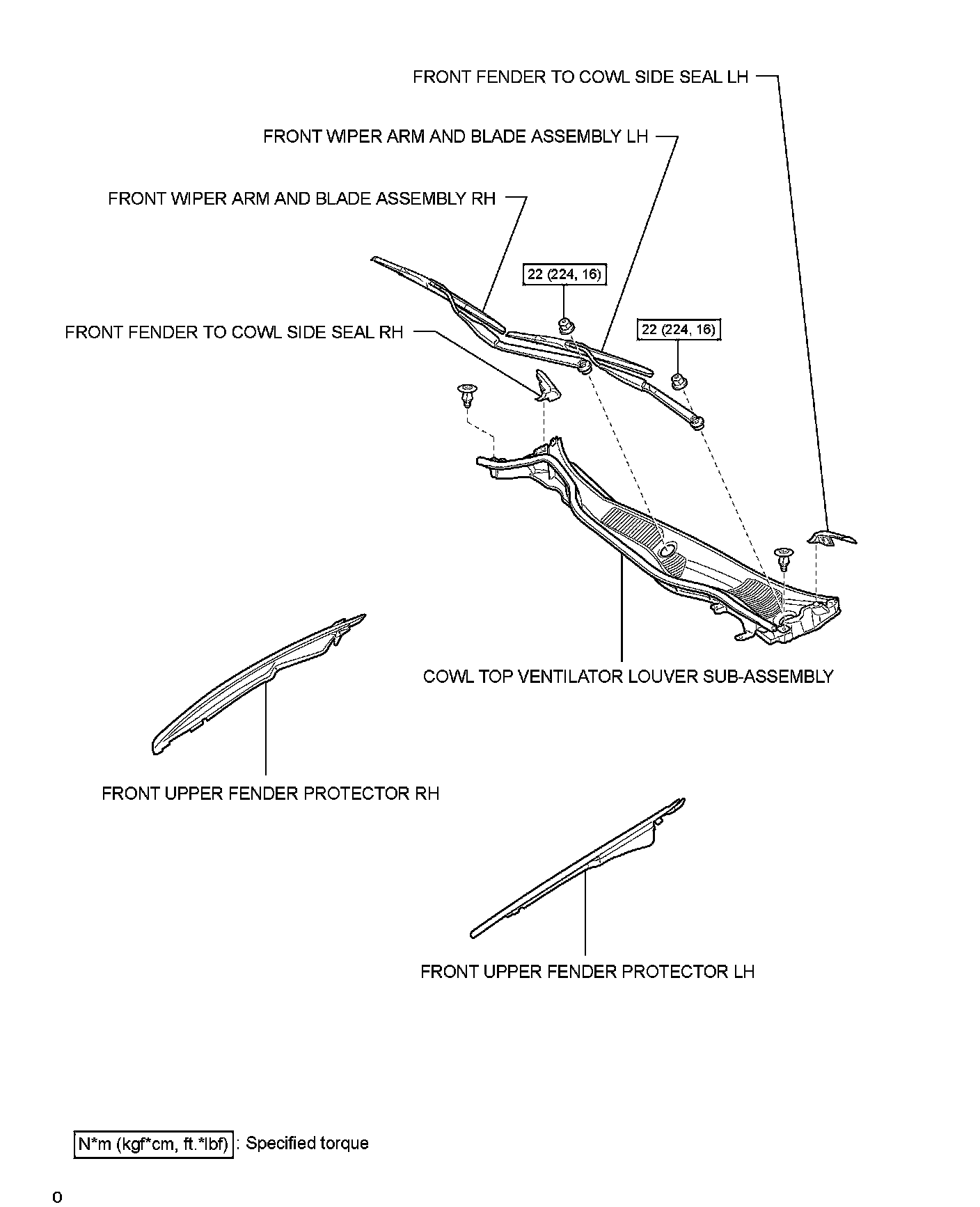

ILLUSTRATION
