Body Control Module
Body Control Module

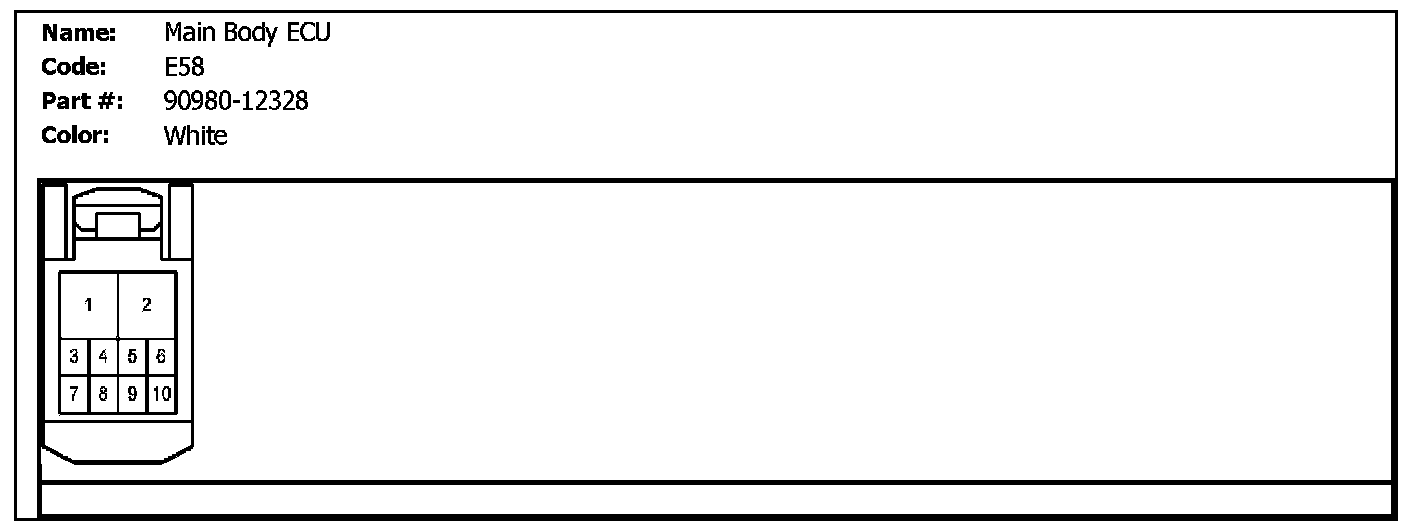

E58 (Main Body ECU):

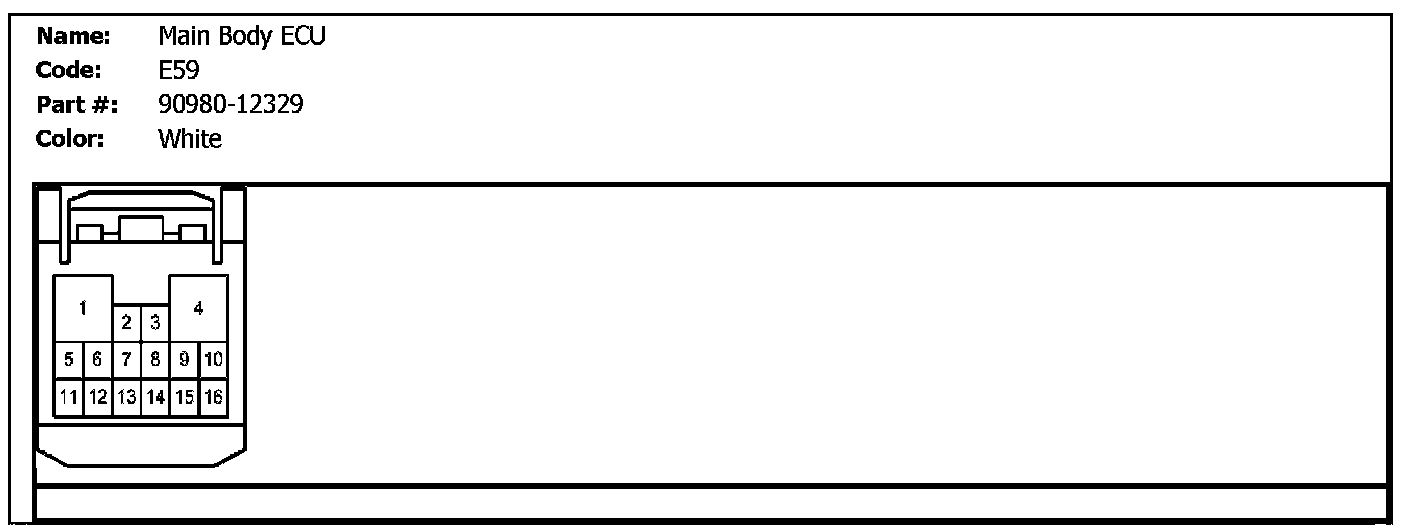

E59 (Main Body ECU):

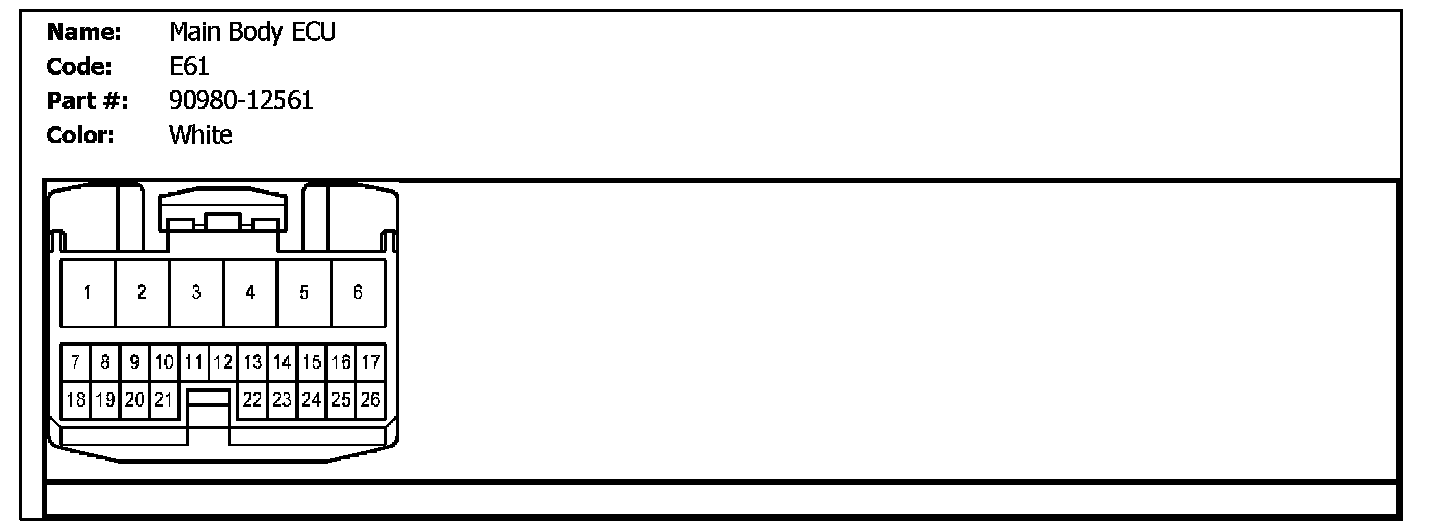

E61 (Main Body ECU):
