Variable Valve Timing Actuator

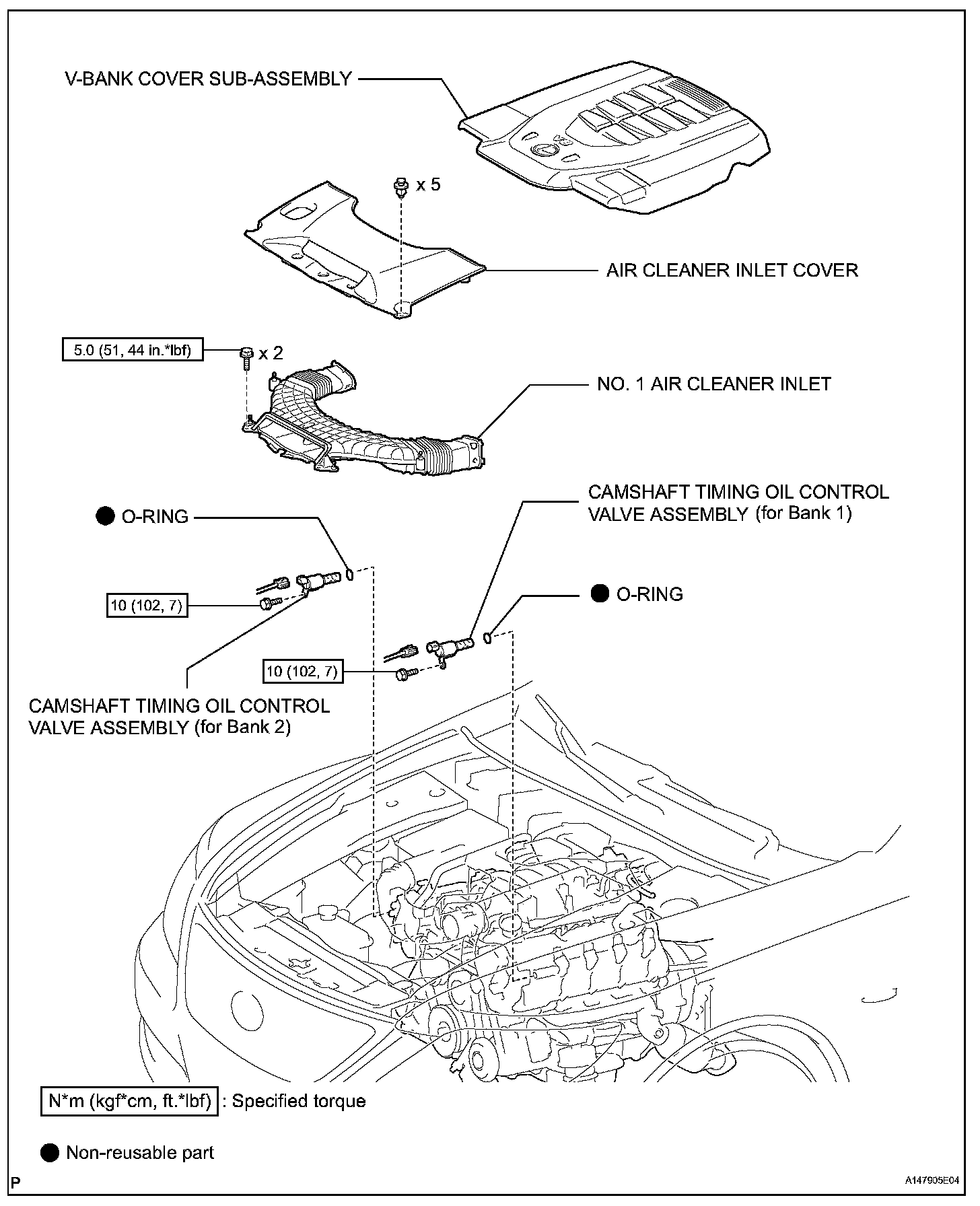

Camshaft Oil Control Valve:

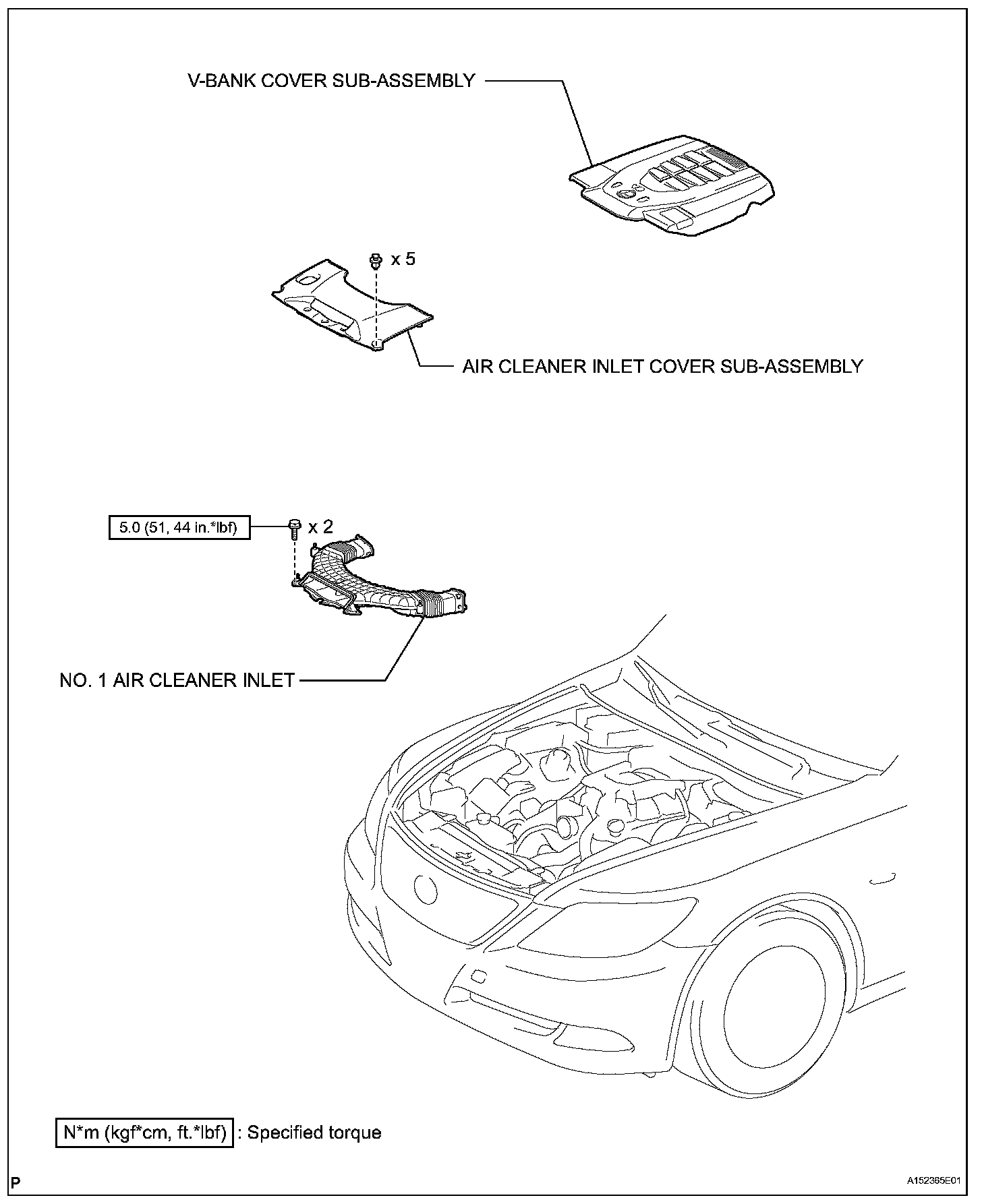

Camshaft Timing Control Motor:

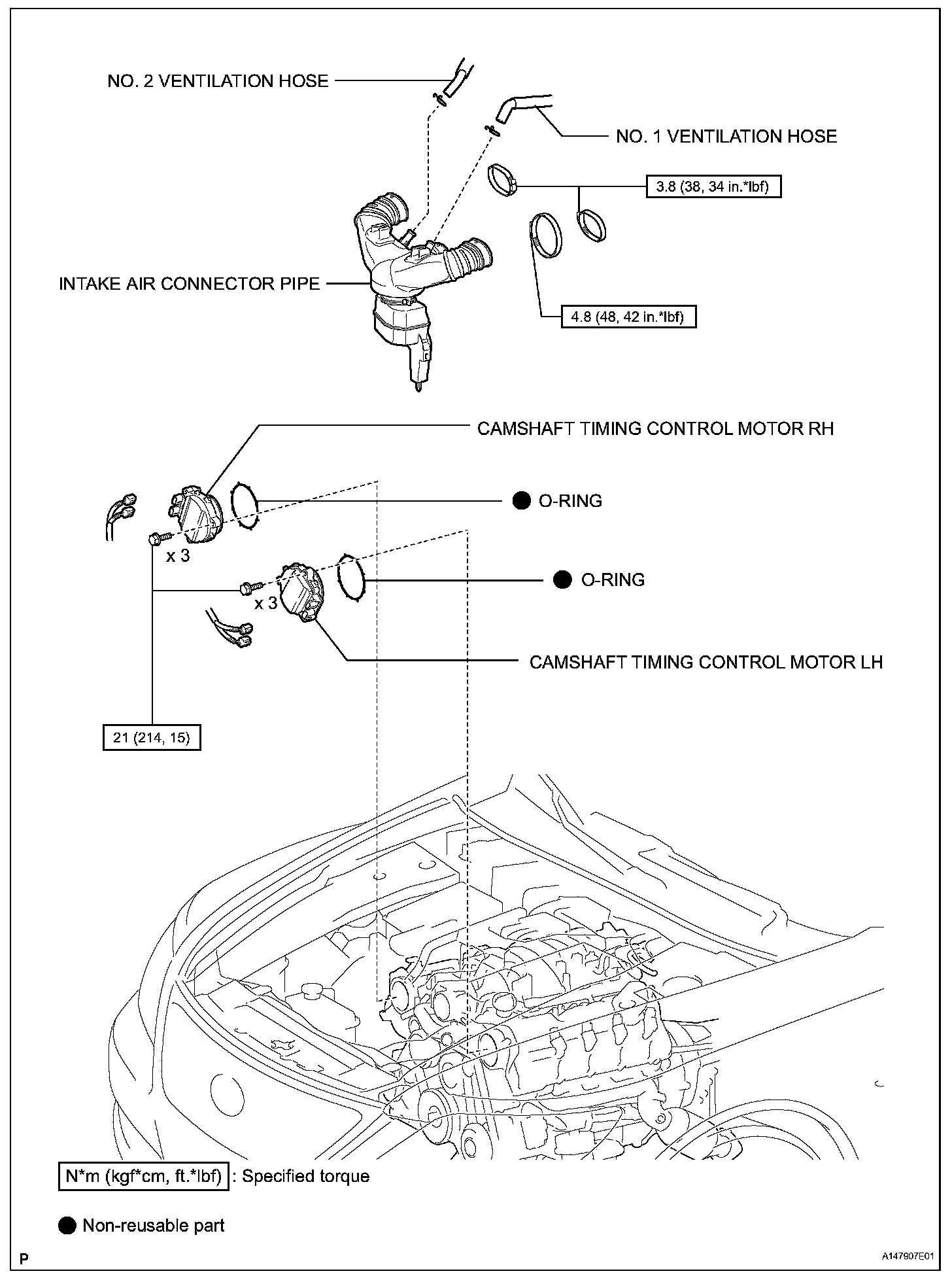

Camshaft Timing Control Motor:
