Acceleration Sensor, Suspension Control
Acceleration Sensor, Suspension Control

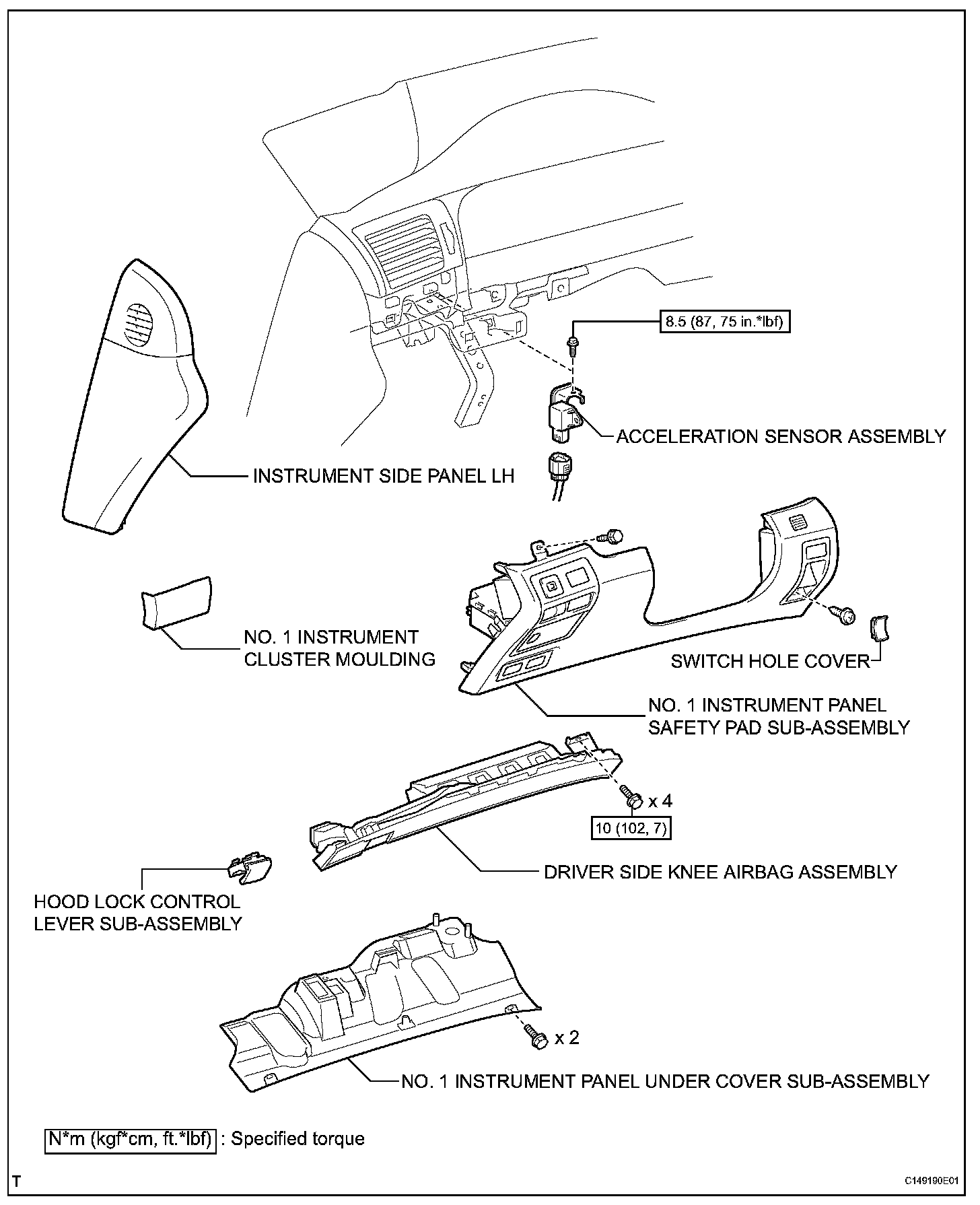

Front Acceleration Sensor:
Rear Acceleration Sensor:
Rear Acceleration Sensor:

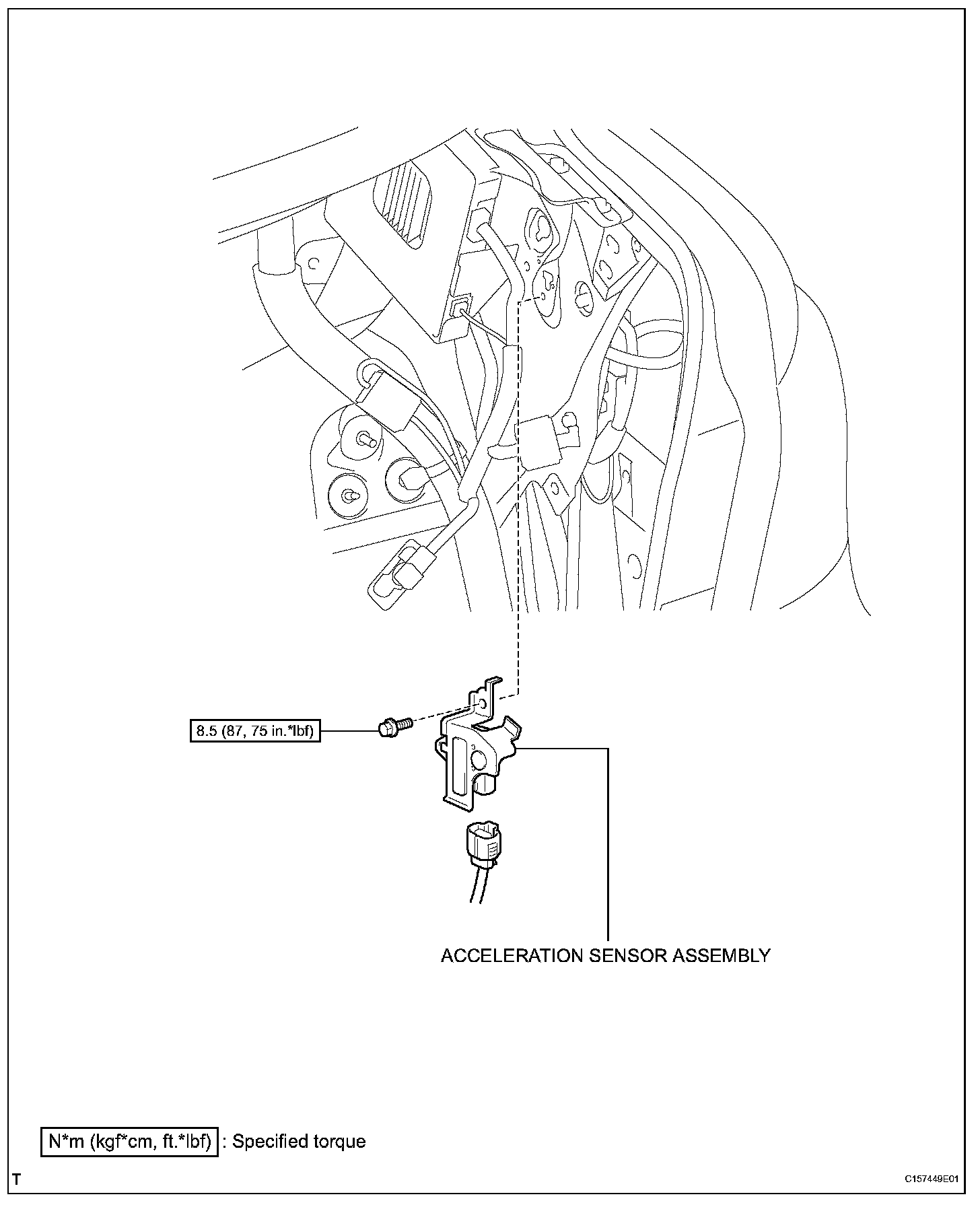

Rear Acceleration Sensor:
