Home >> Lexus >> 2007 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Technical Service Bulletins >> Recalls >> Generals >> Campaign - EPS Steering Gear Replacement >> Technical Instructions For Various 2006 and 2007 GS and IS Models >> VI. Power Steering Link Assembly Replacement >> D. Install Power Steering Link Assembly

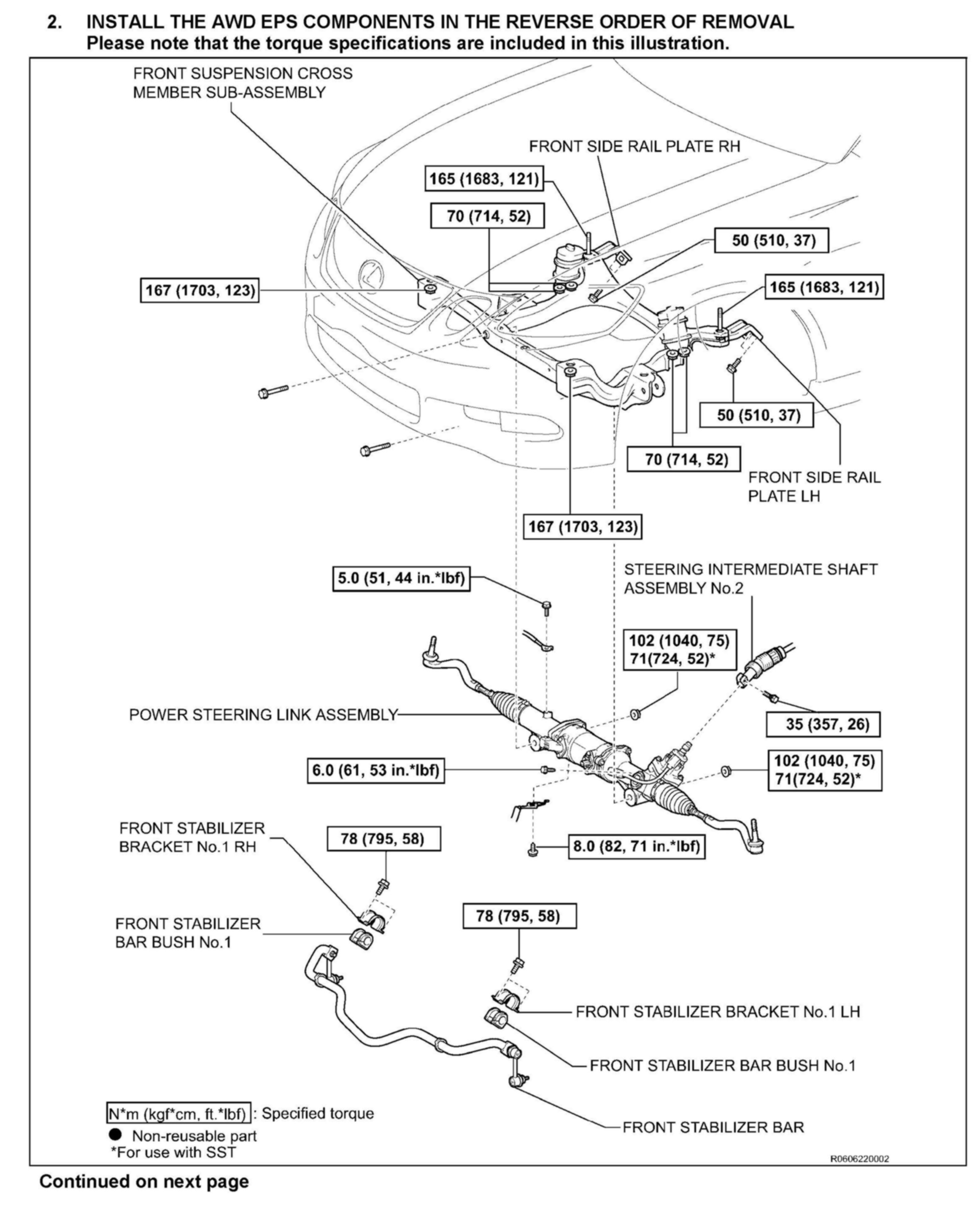

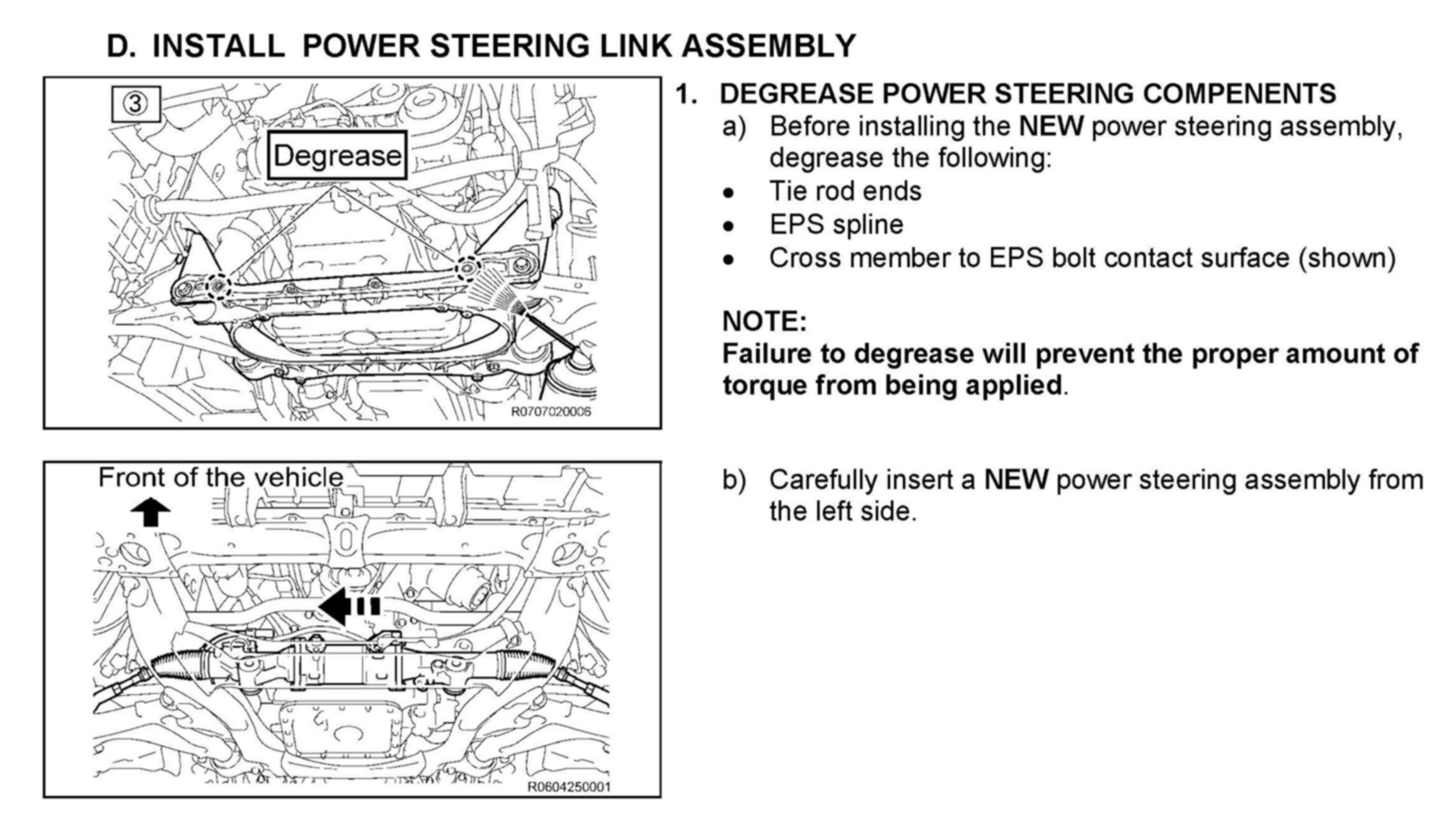

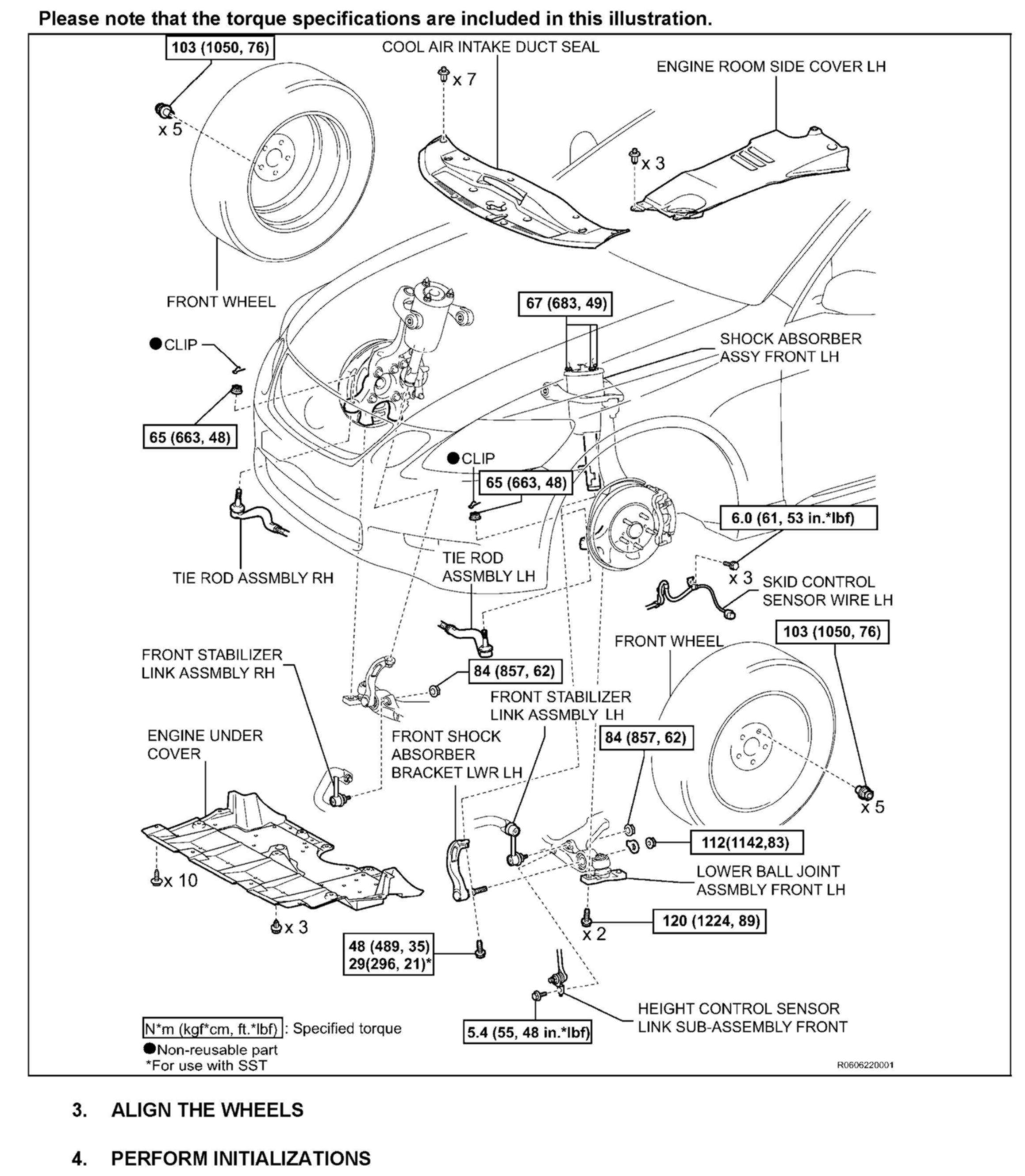

D. Install Power Steering Link Assembly
