Home
>>
Lexus
>>
2007
>>
GS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

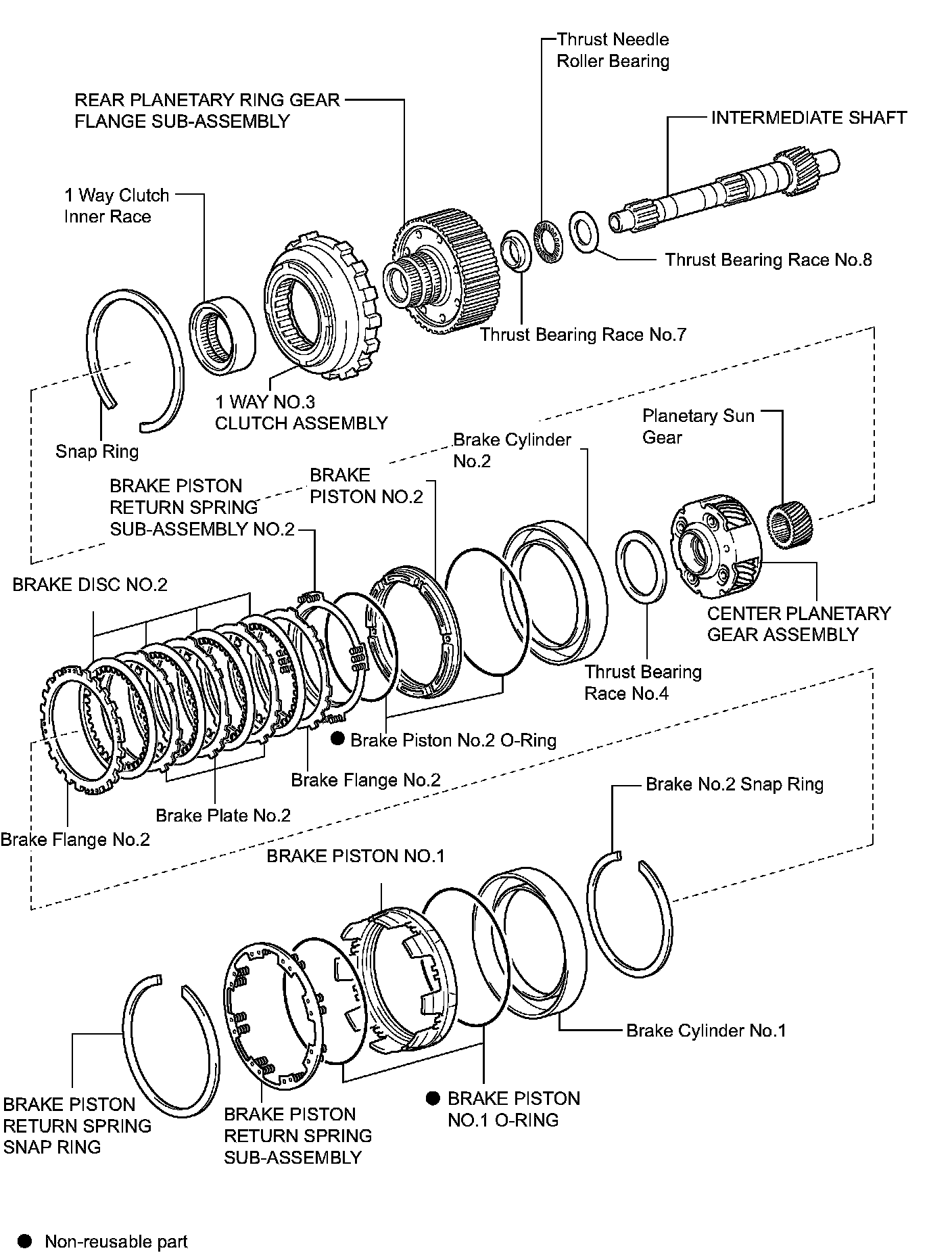

COMPONENTS:

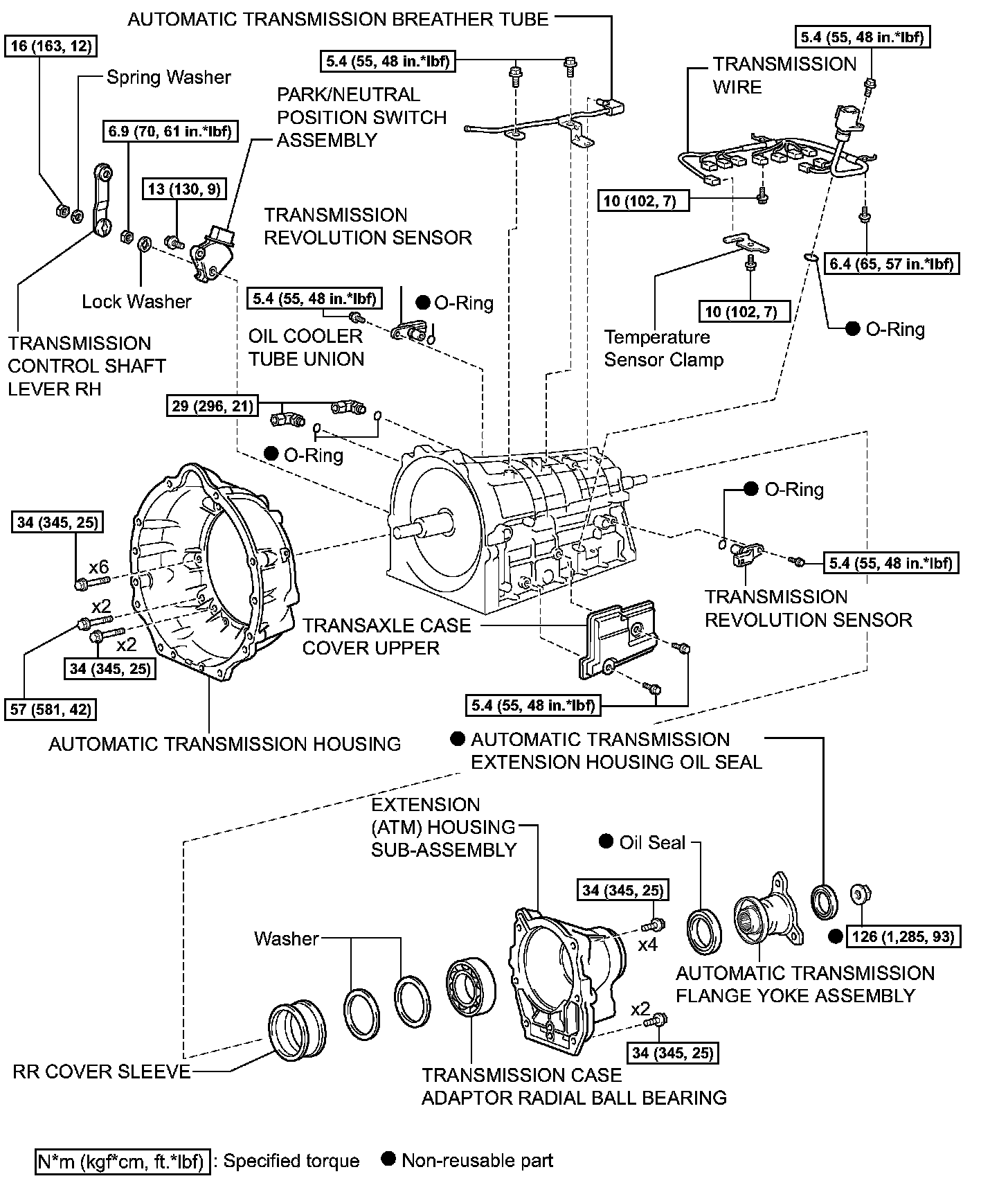

COMPONENTS:

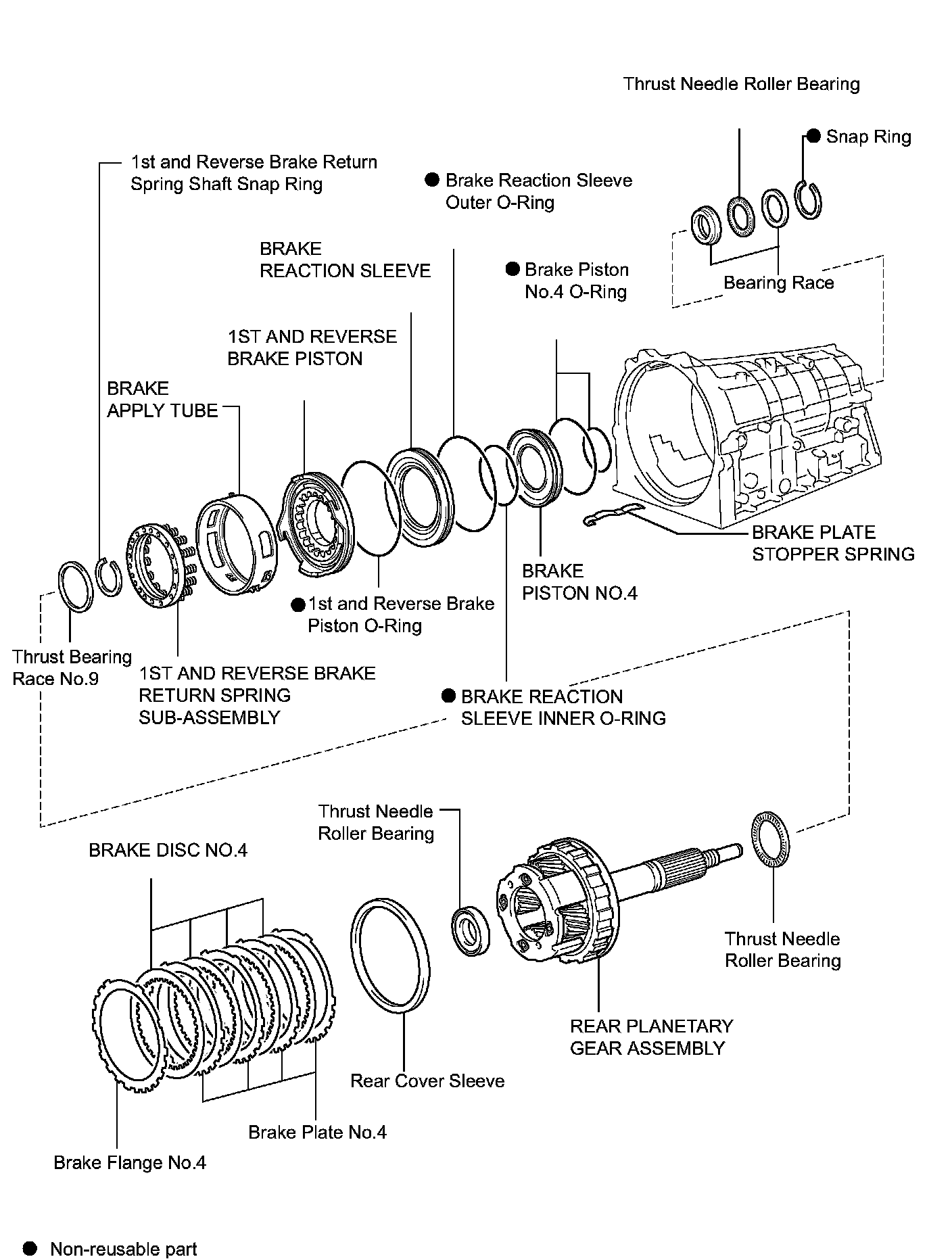

COMPONENTS:

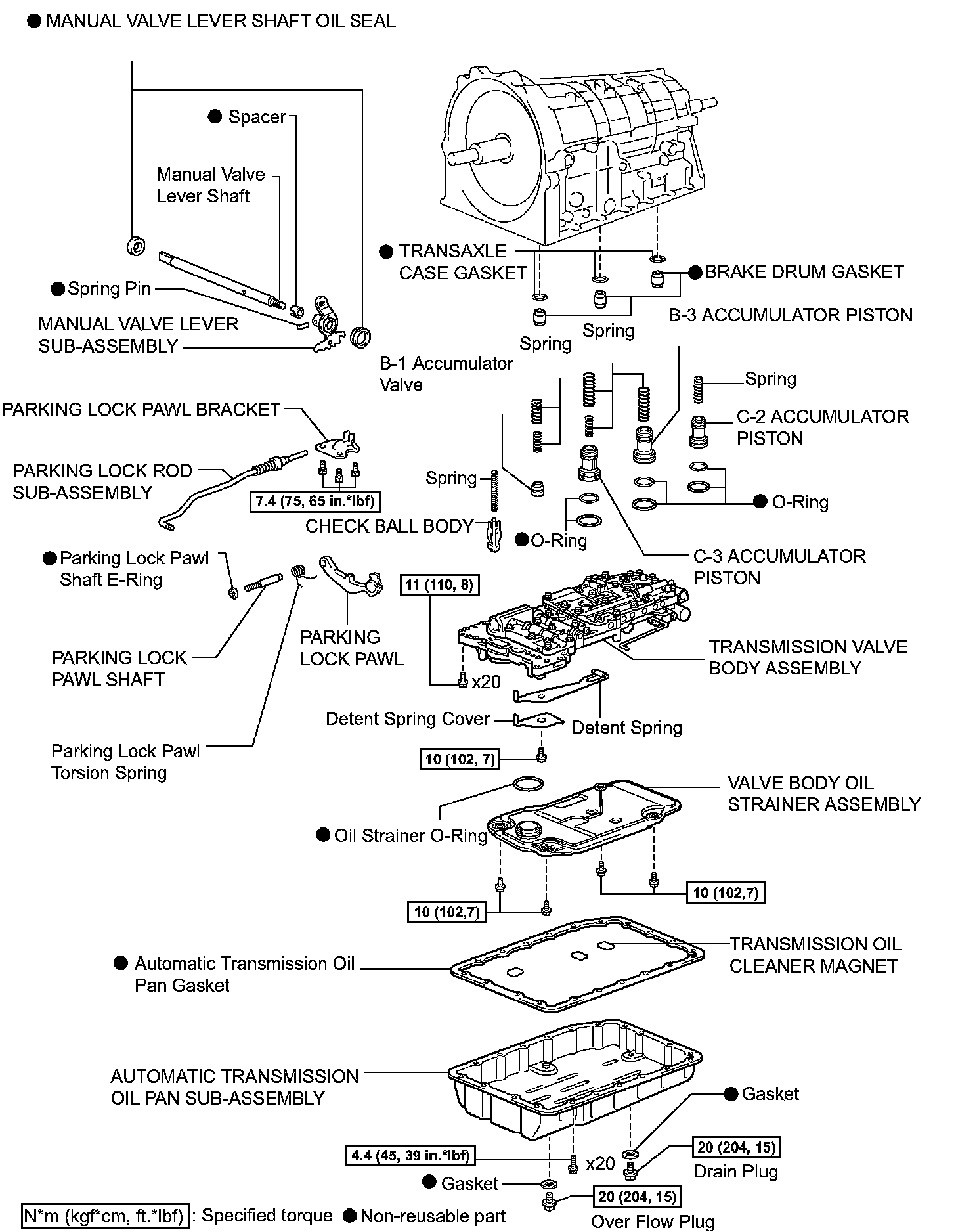

COMPONENTS:
COMPONENTS:
