IS 350 V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Secondary Injector Control Module
Secondary Injector Control Module

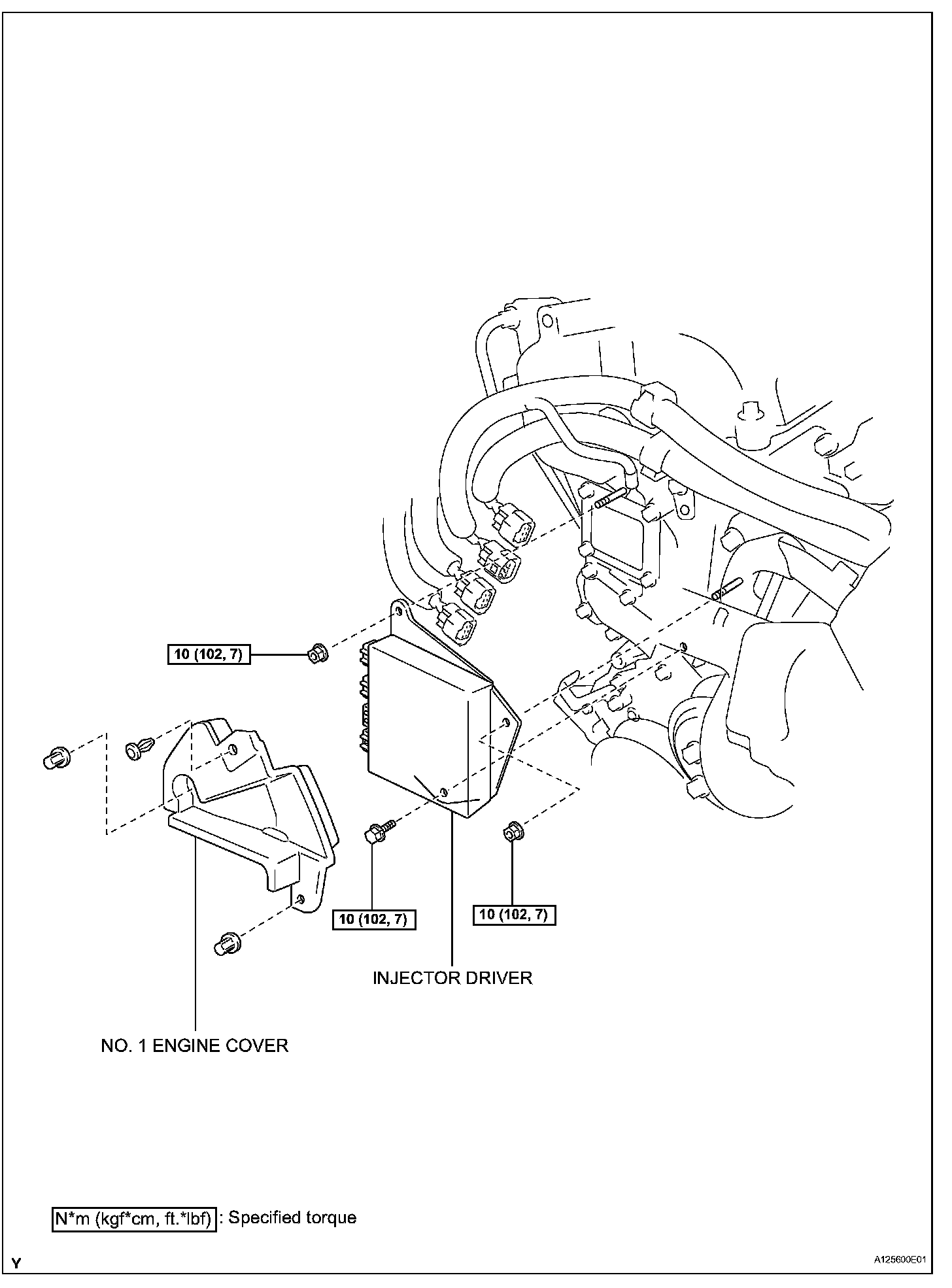

Injector Driver:
Injector Driver:
