Heating and Air Conditioning
>>
Compressor HVAC
Compressor HVAC

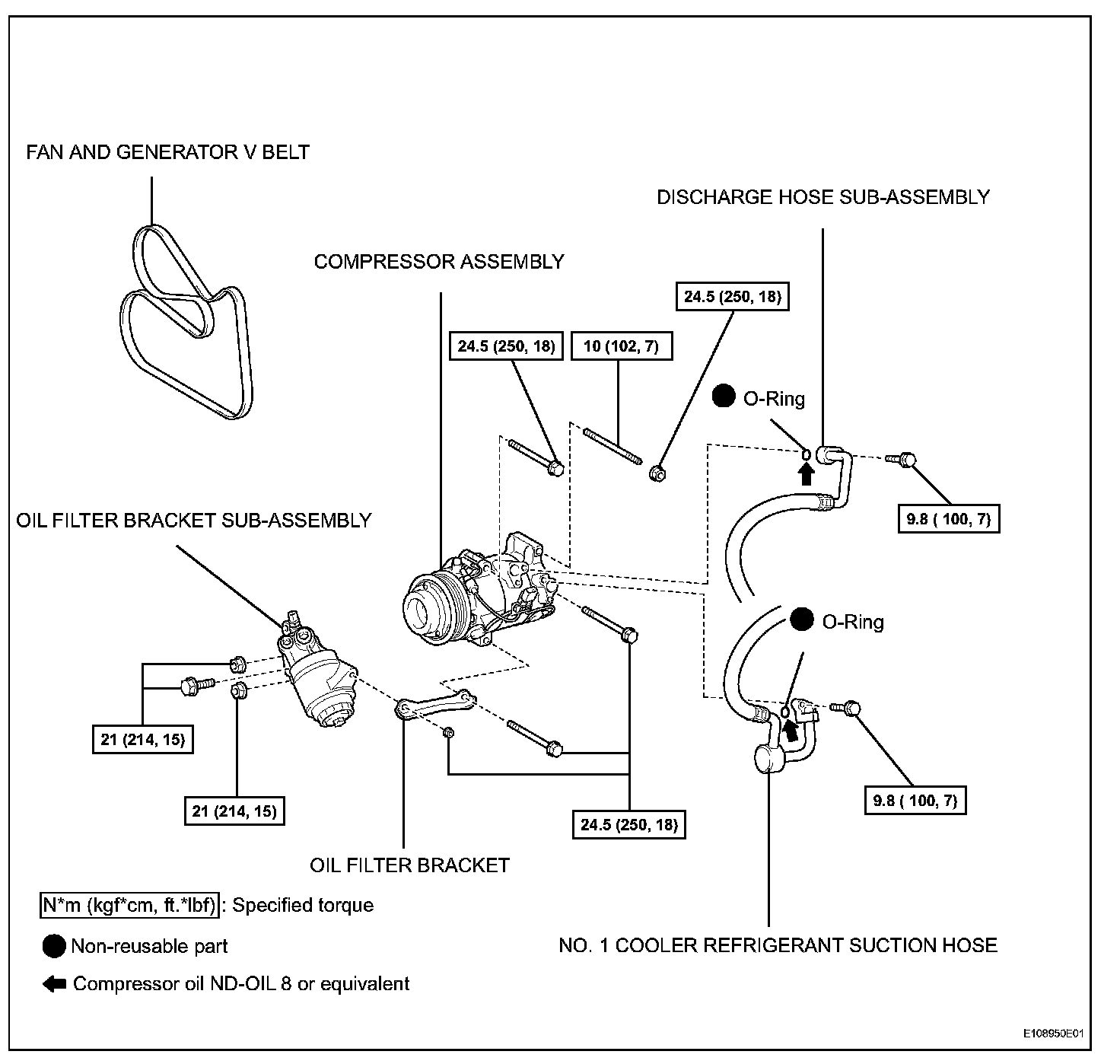

Compressor And Pulley:
Compressor And Pulley:
