Pinout Values and Diagnostic Parameters

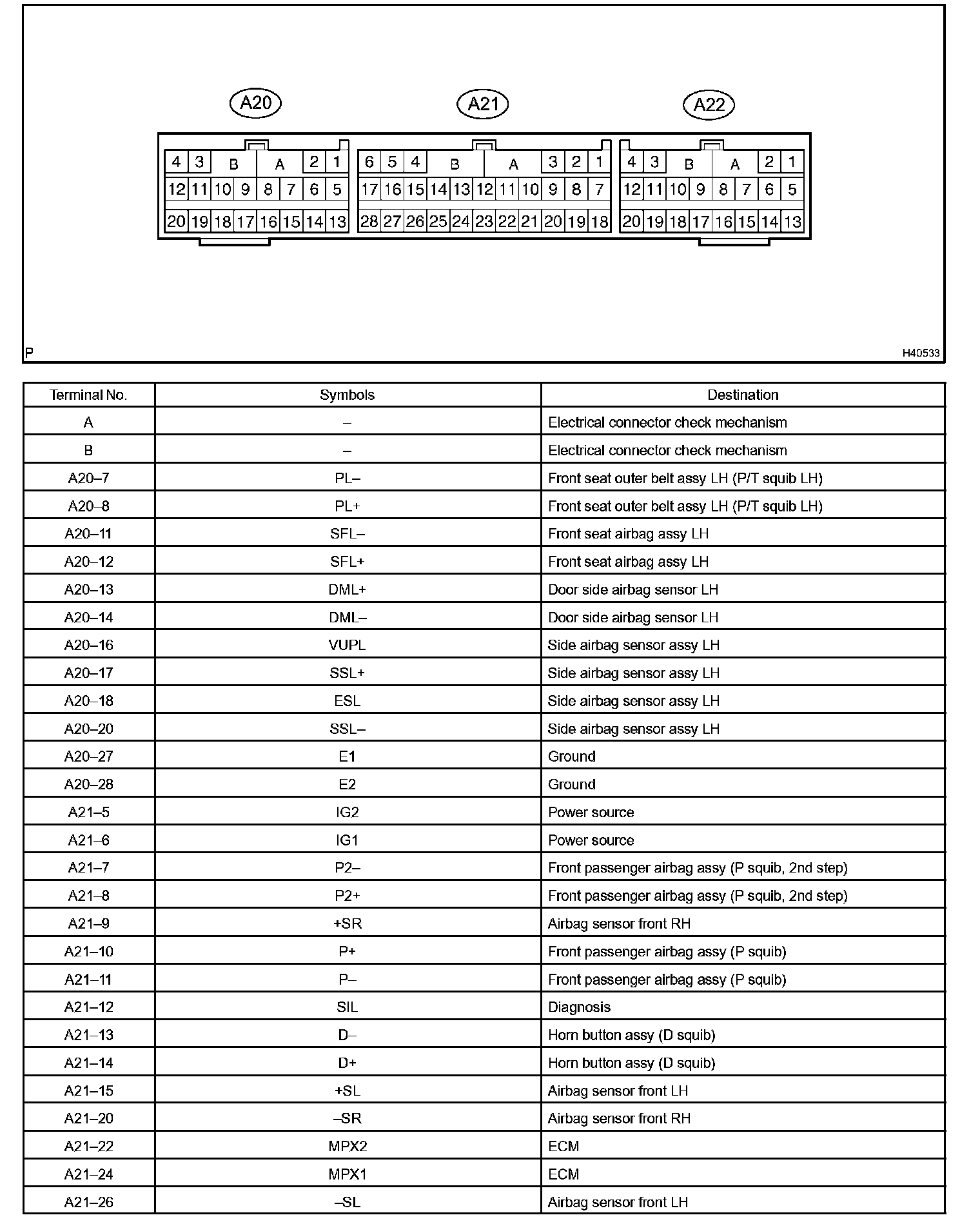

Terminals Of Control Module/Pinouts - Airbag Sensor Assy Center ECU Part 1:

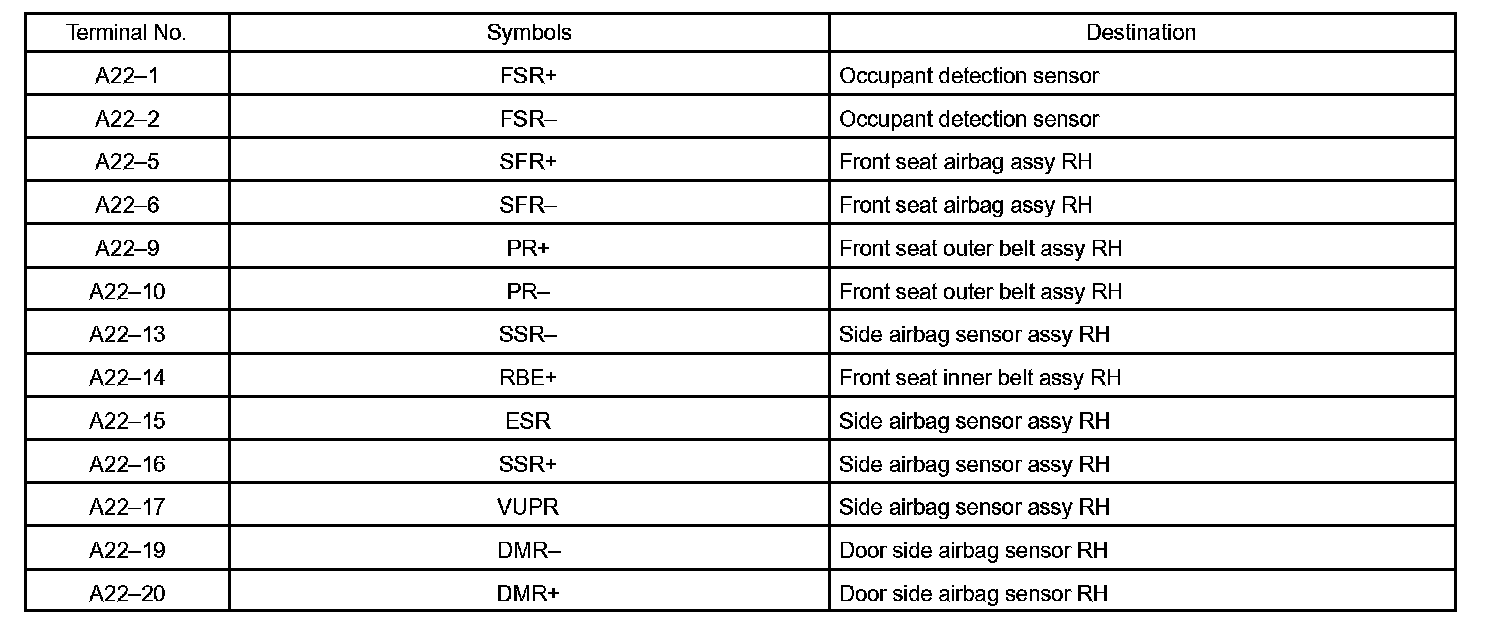

Terminals Of Control Module/Pinouts - Airbag Sensor Assy Center ECU Part 2:
