Pinout Values and Diagnostic Parameters

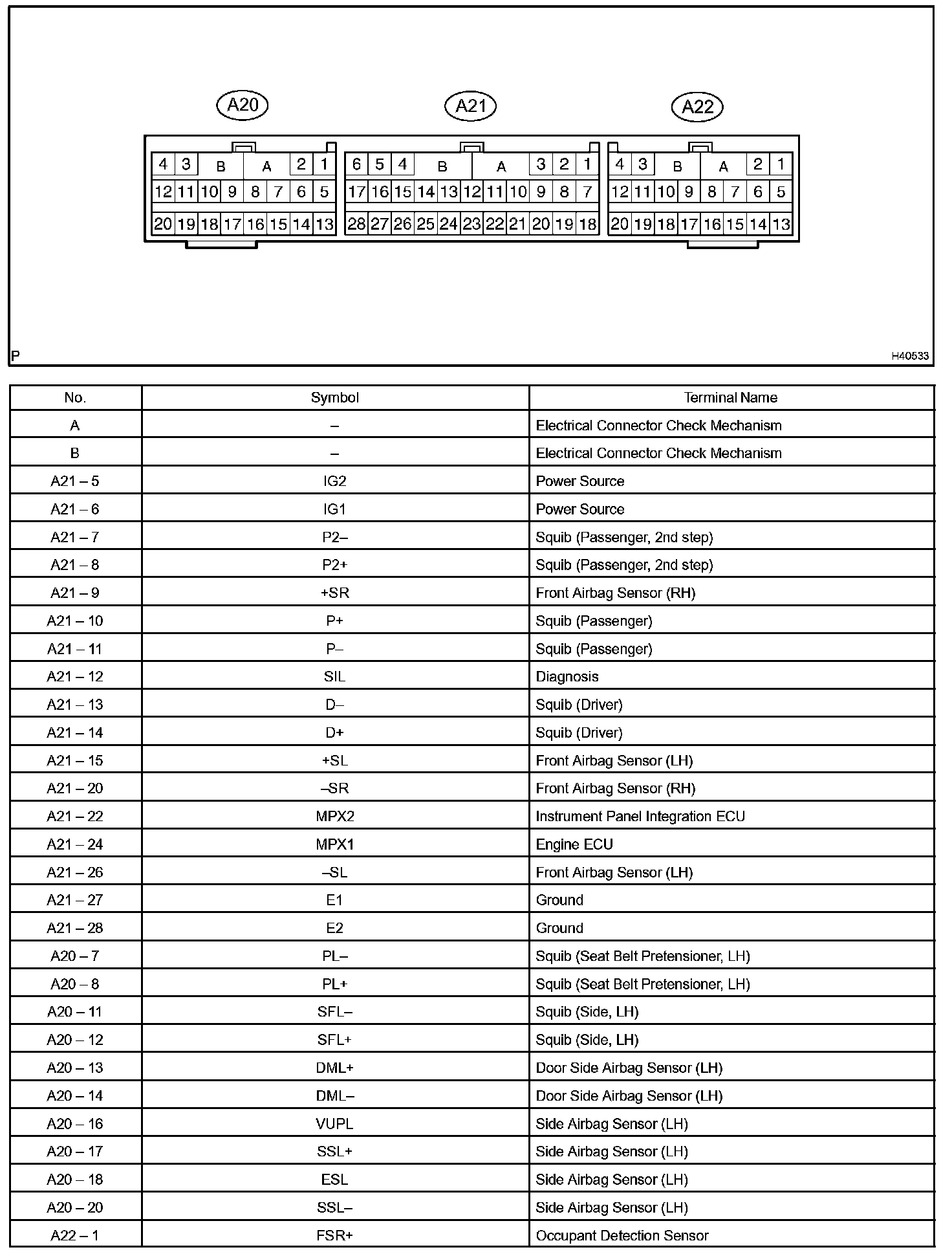

Terminals Of ECU/Pinouts - Part 1:

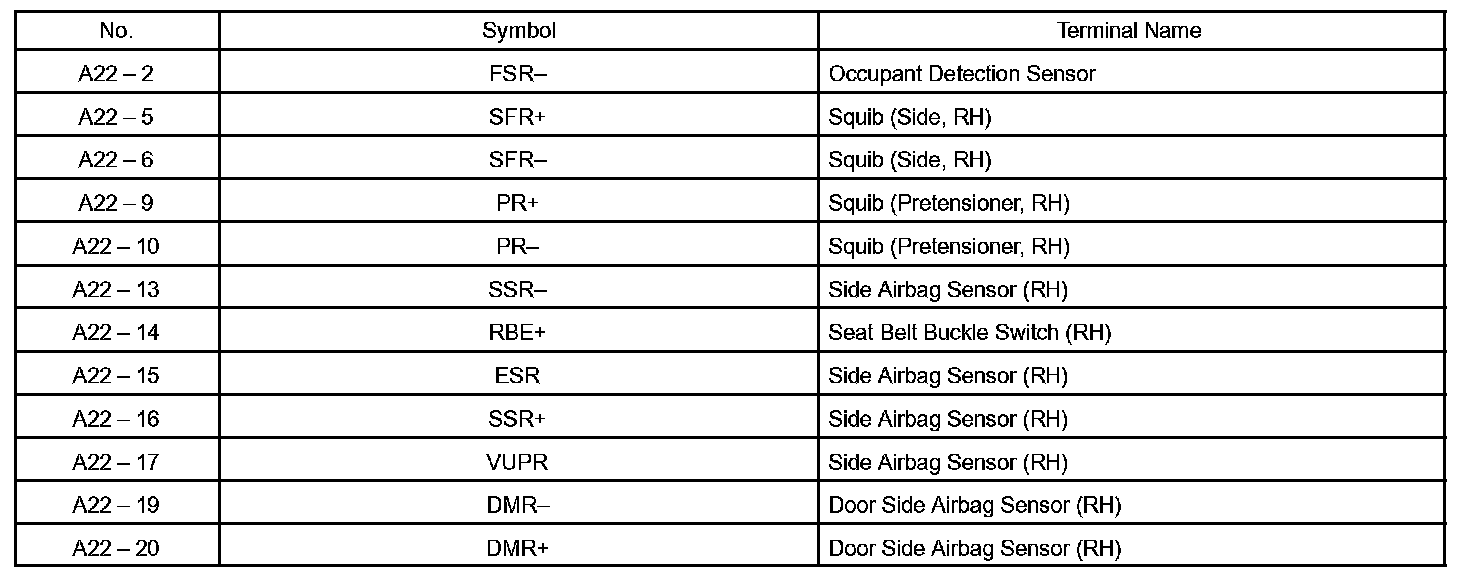

Terminals Of ECU/Pinouts - Part 2:
