Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2004
>>
GS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Air Bag Control Module

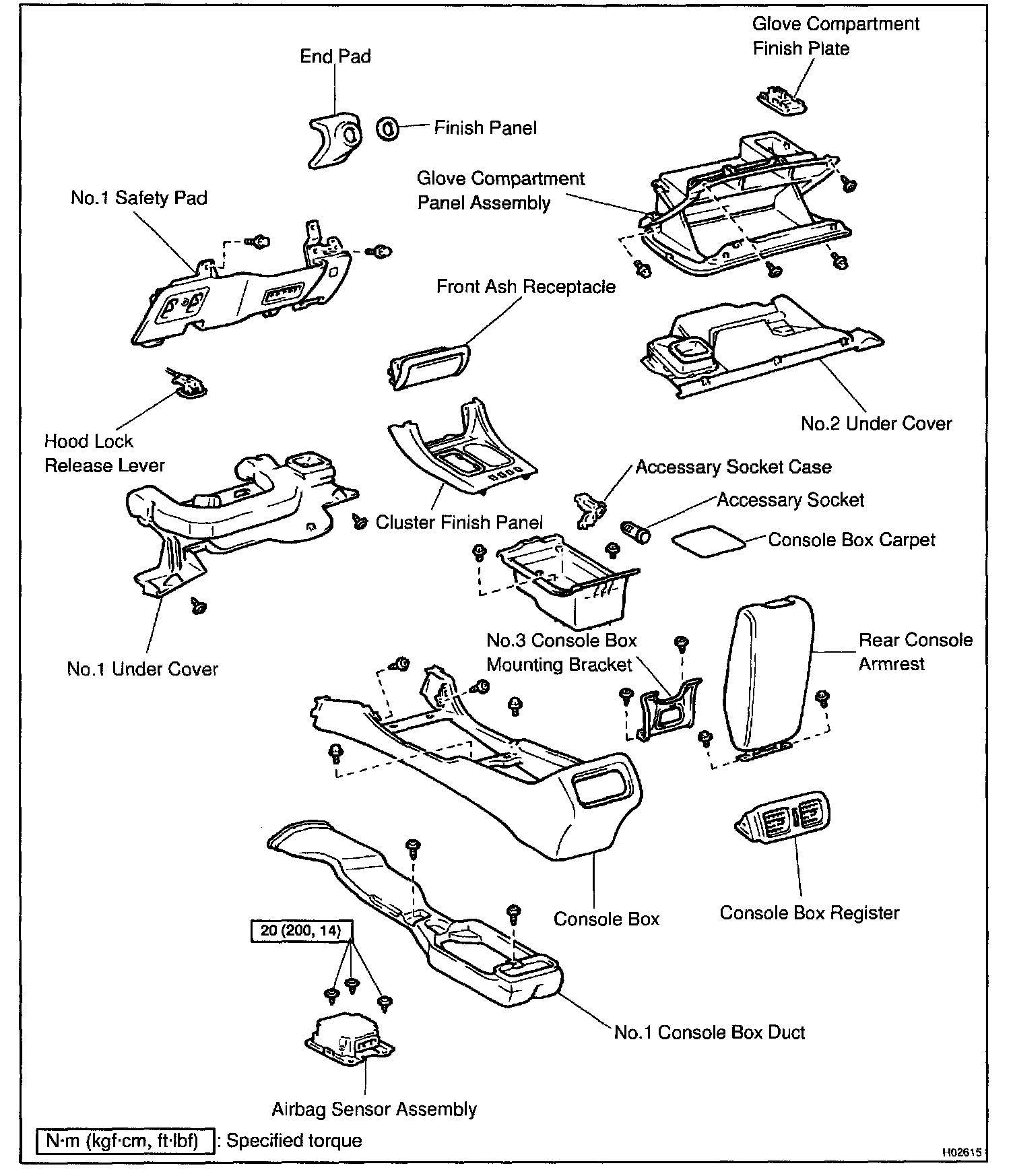

Air Bag Control Module

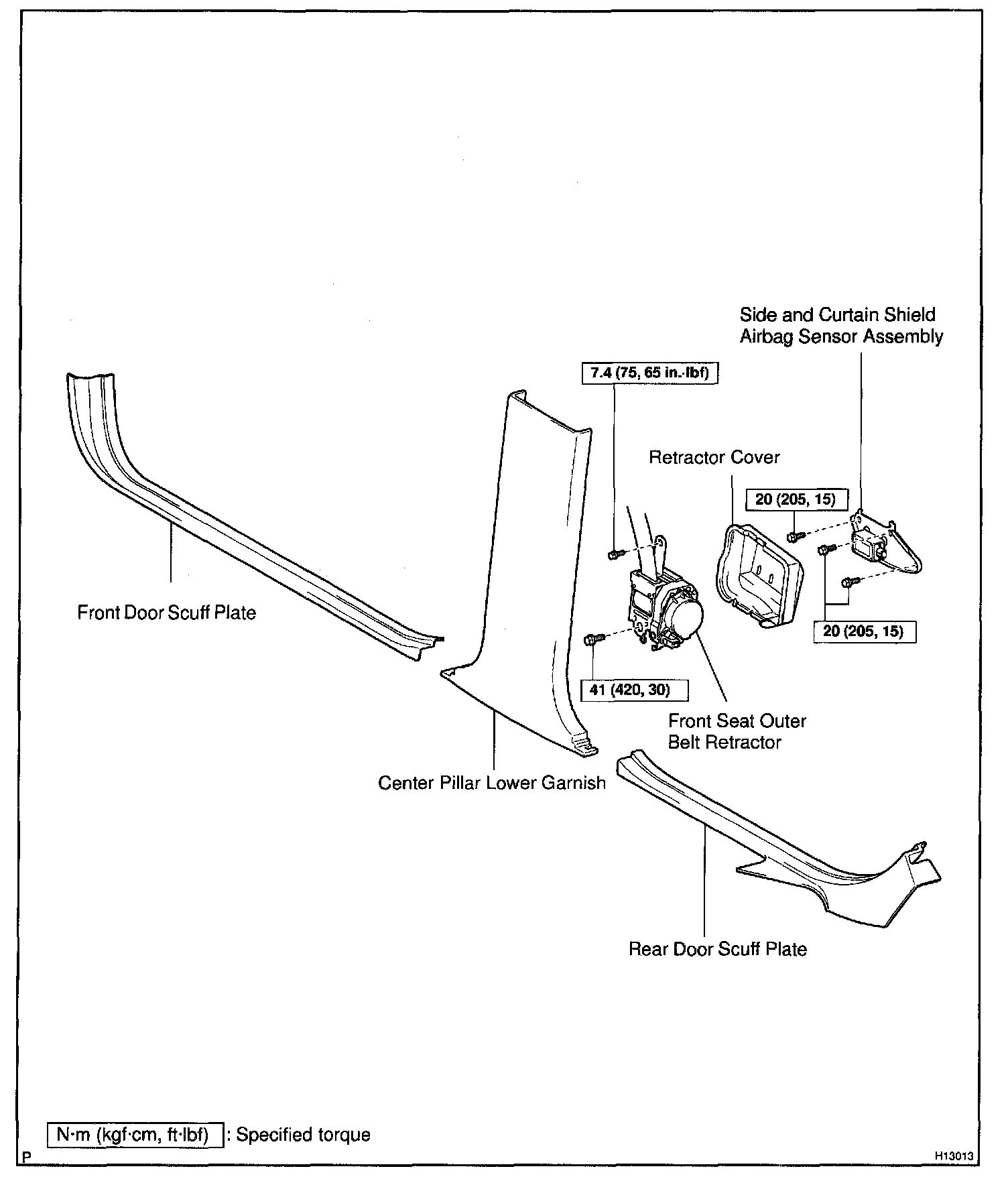

Side And Curtain Airbag Sensor Assembly:
Airbag Sensor Assembly:
