Home
>>
Lexus
>>
2003
>>
LS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Headlamp Control Module
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview

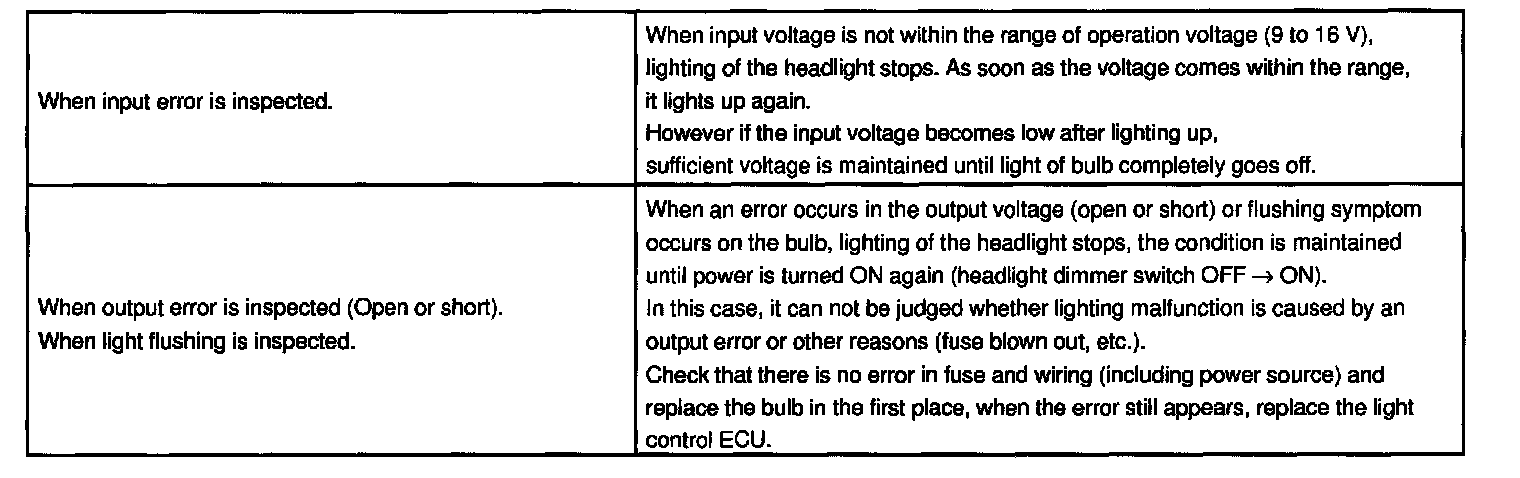

Fail-Safe Function (Light Control ECU):
