Disassembly and Reassembly
Disassembly and Reassembly

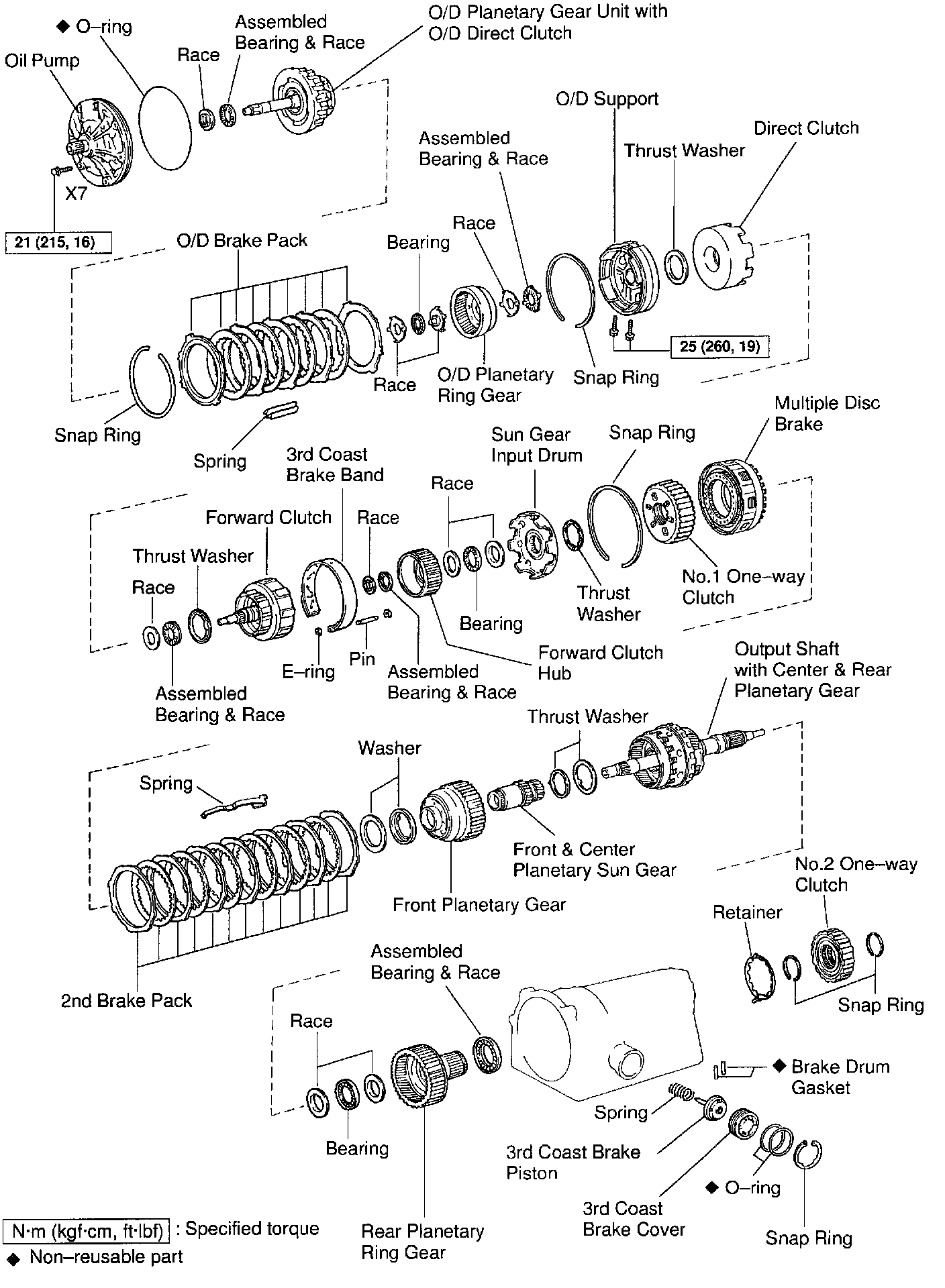

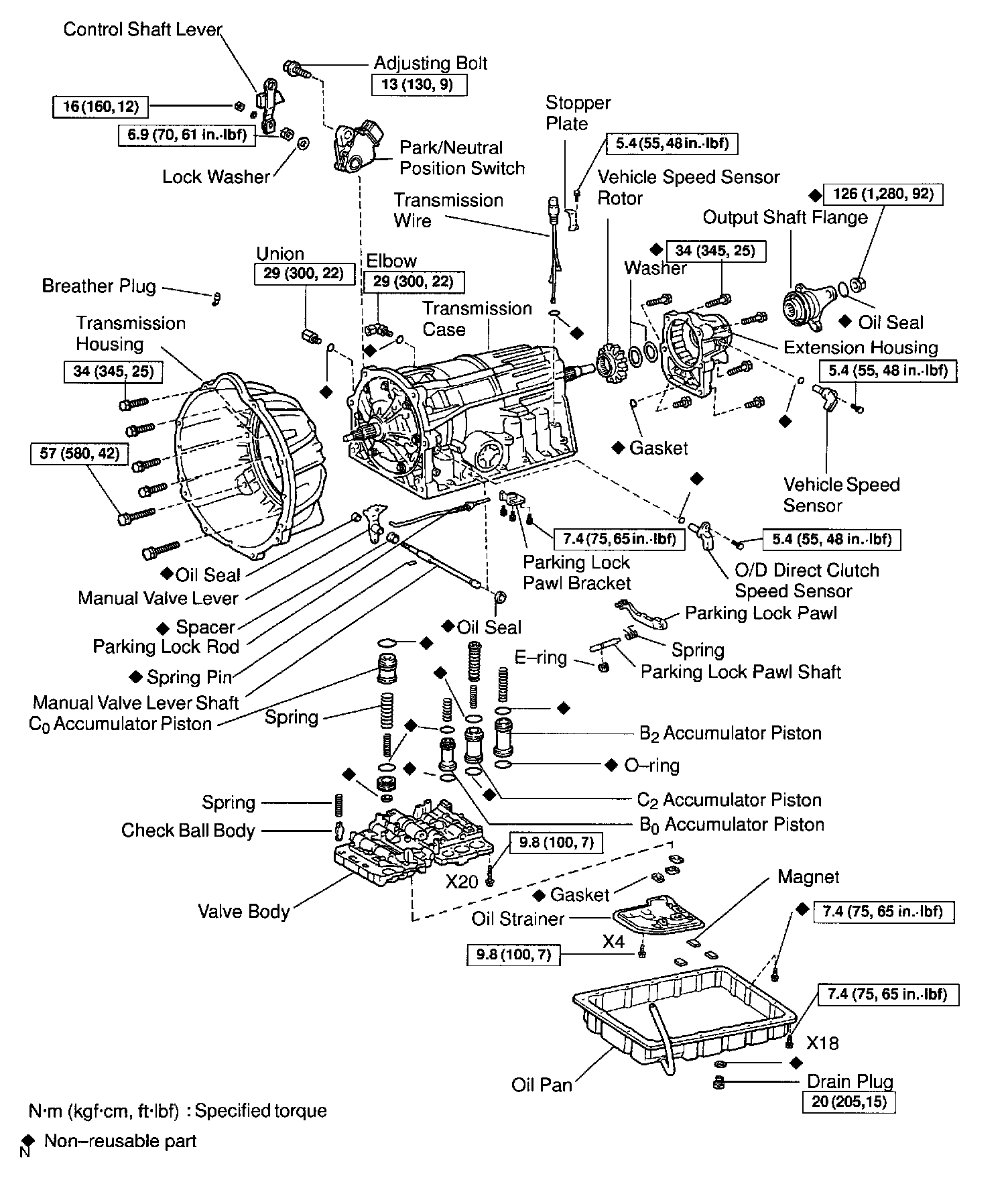

AUTOMATIC TRANSMISSION COMPONENT PARTS W/ RELATED COMPONENTS
