Home >> Lexus >> 2002 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Technical and Torque Data

Engine Technical and Torque Data

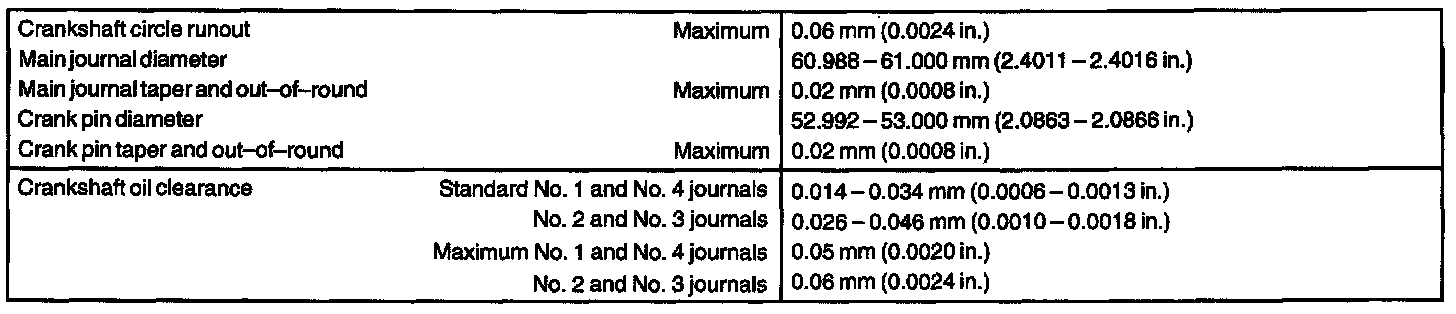

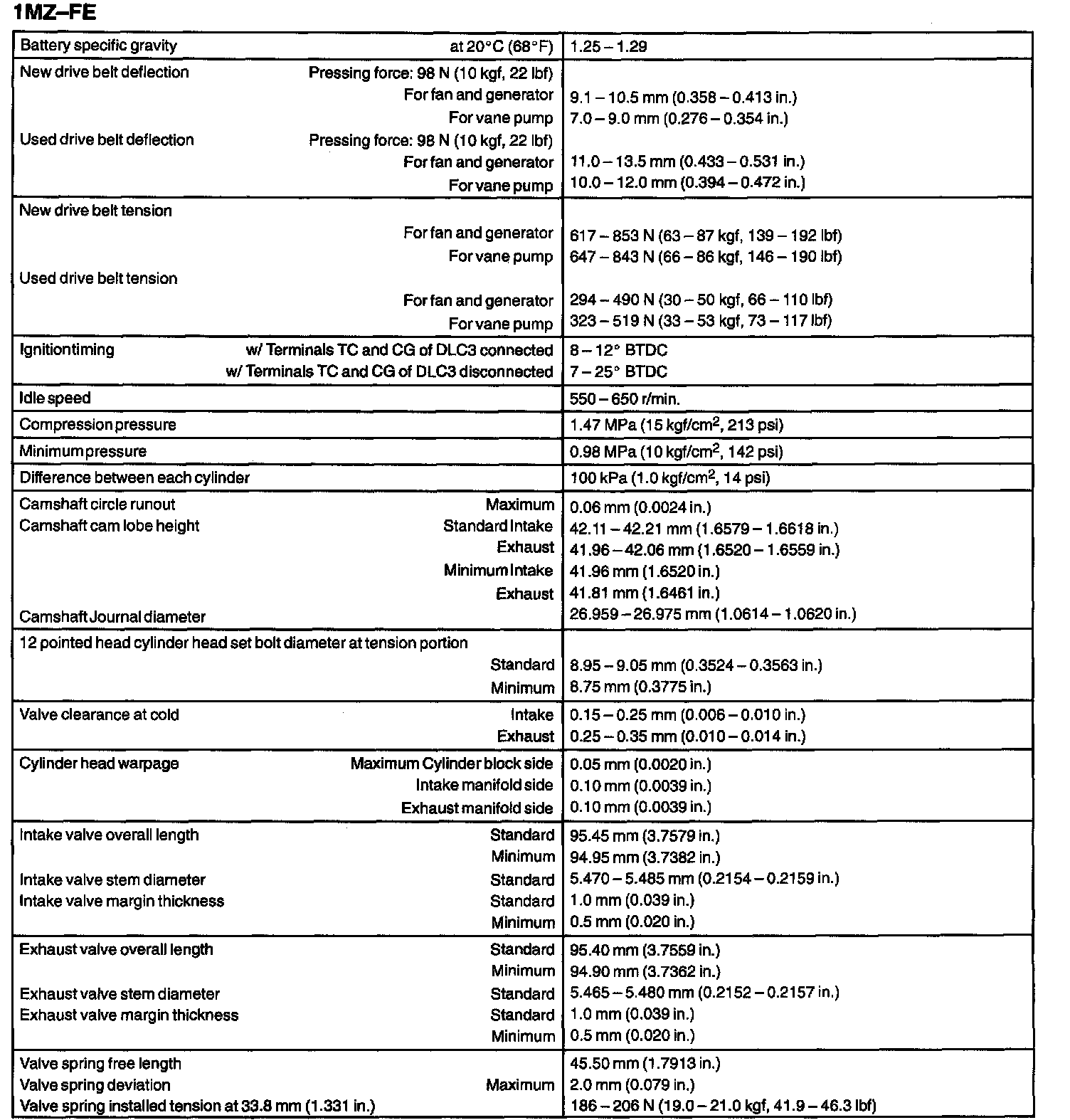

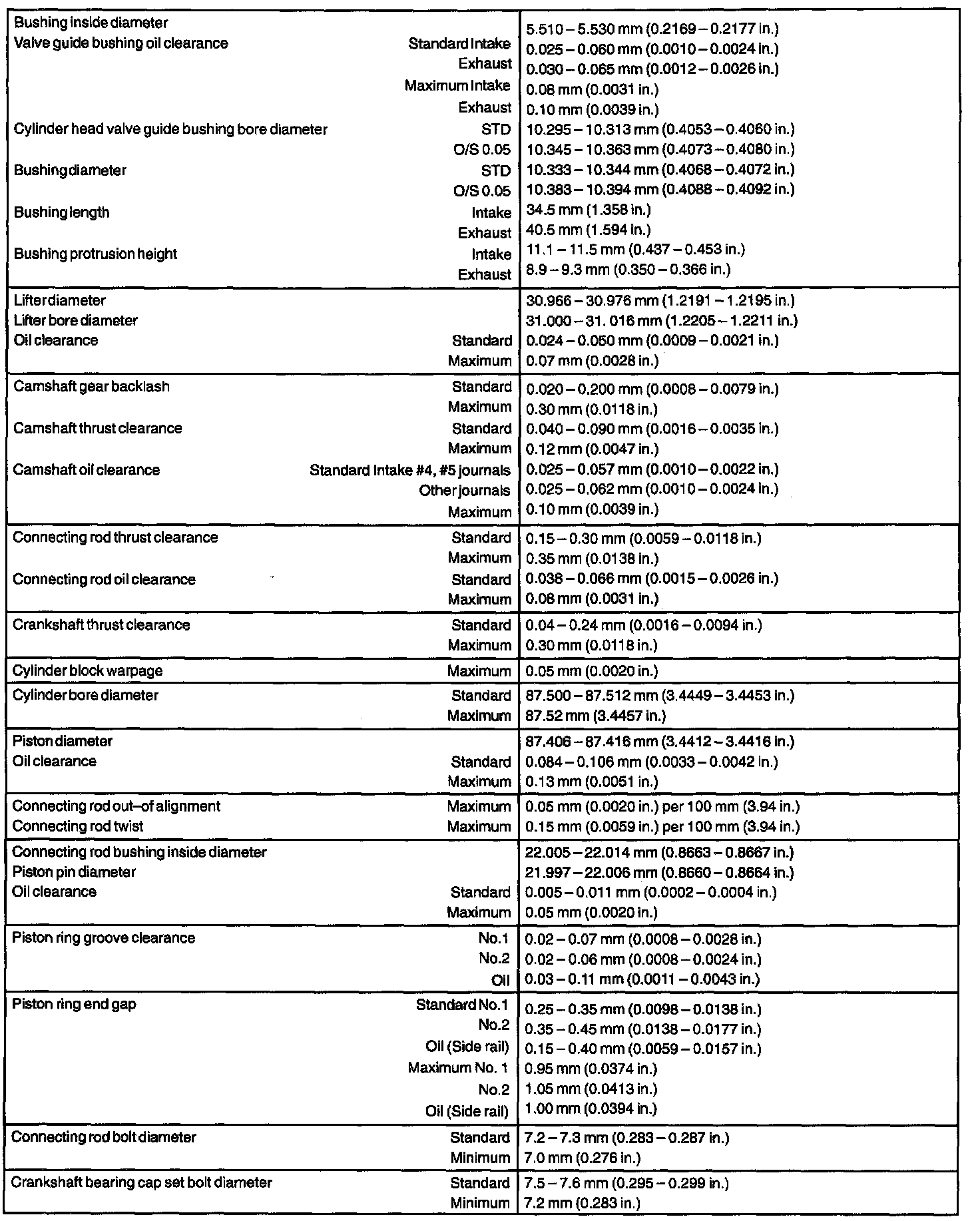

ENGINE MECHANICAL SERVICE DATA:




ENGINE MECHANICAL SERVICE DATA:




ENGINE MECHANICAL SERVICE DATA:

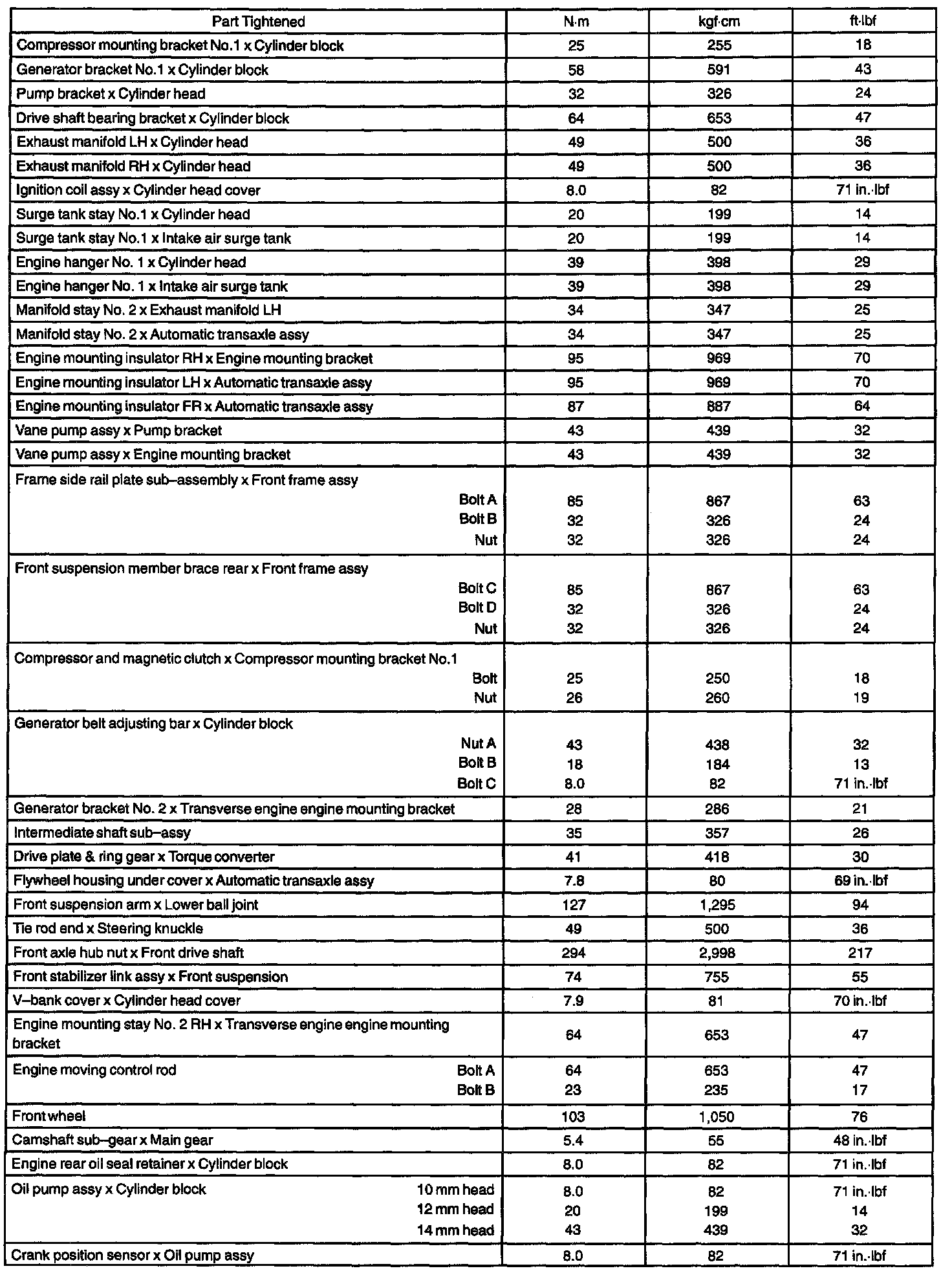

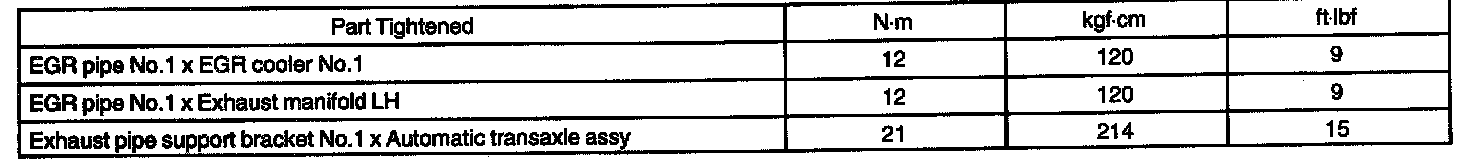

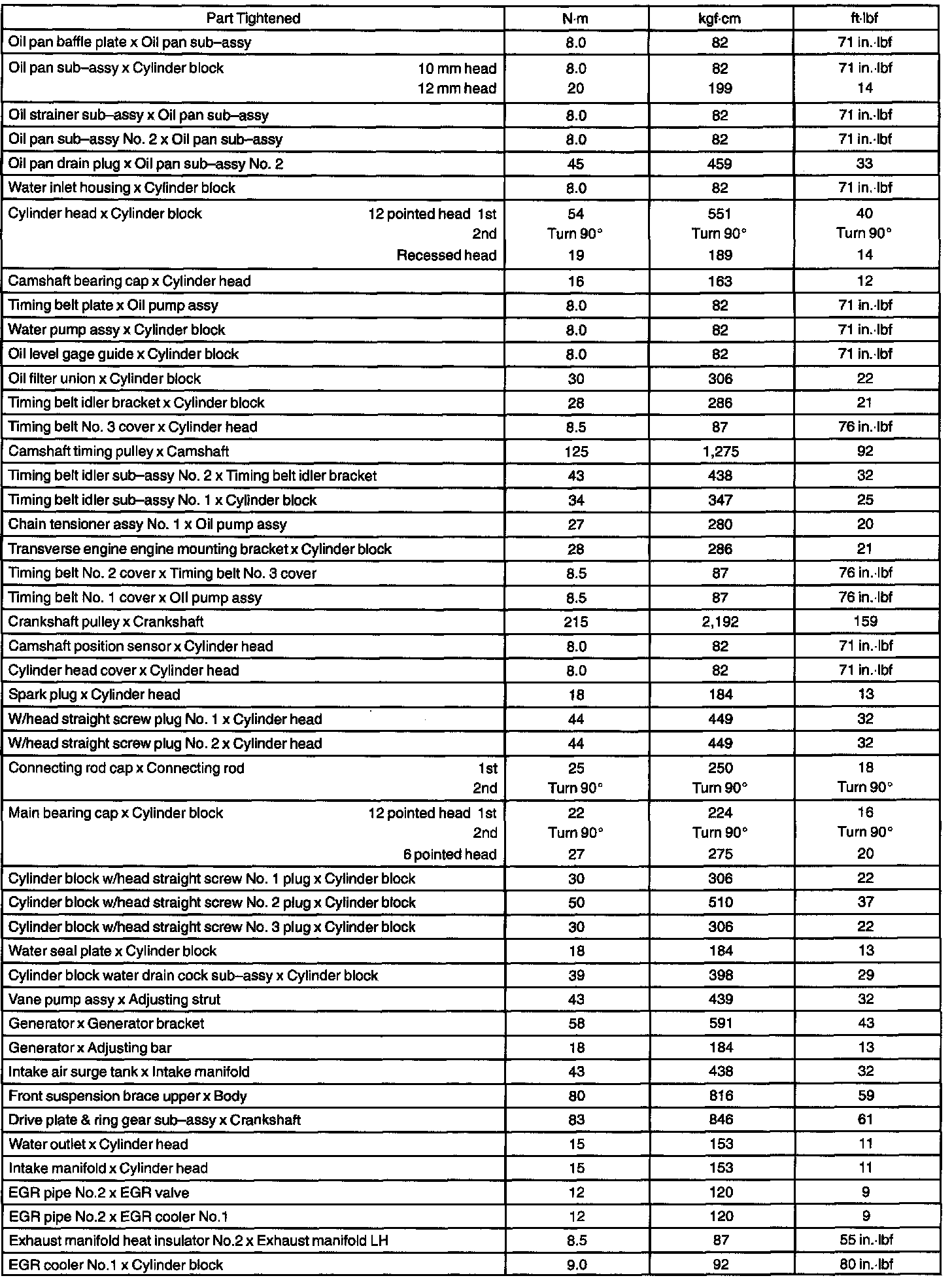

TORQUE SPECIFICATION:




TORQUE SPECIFICATION:




TORQUE SPECIFICATION:
