Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

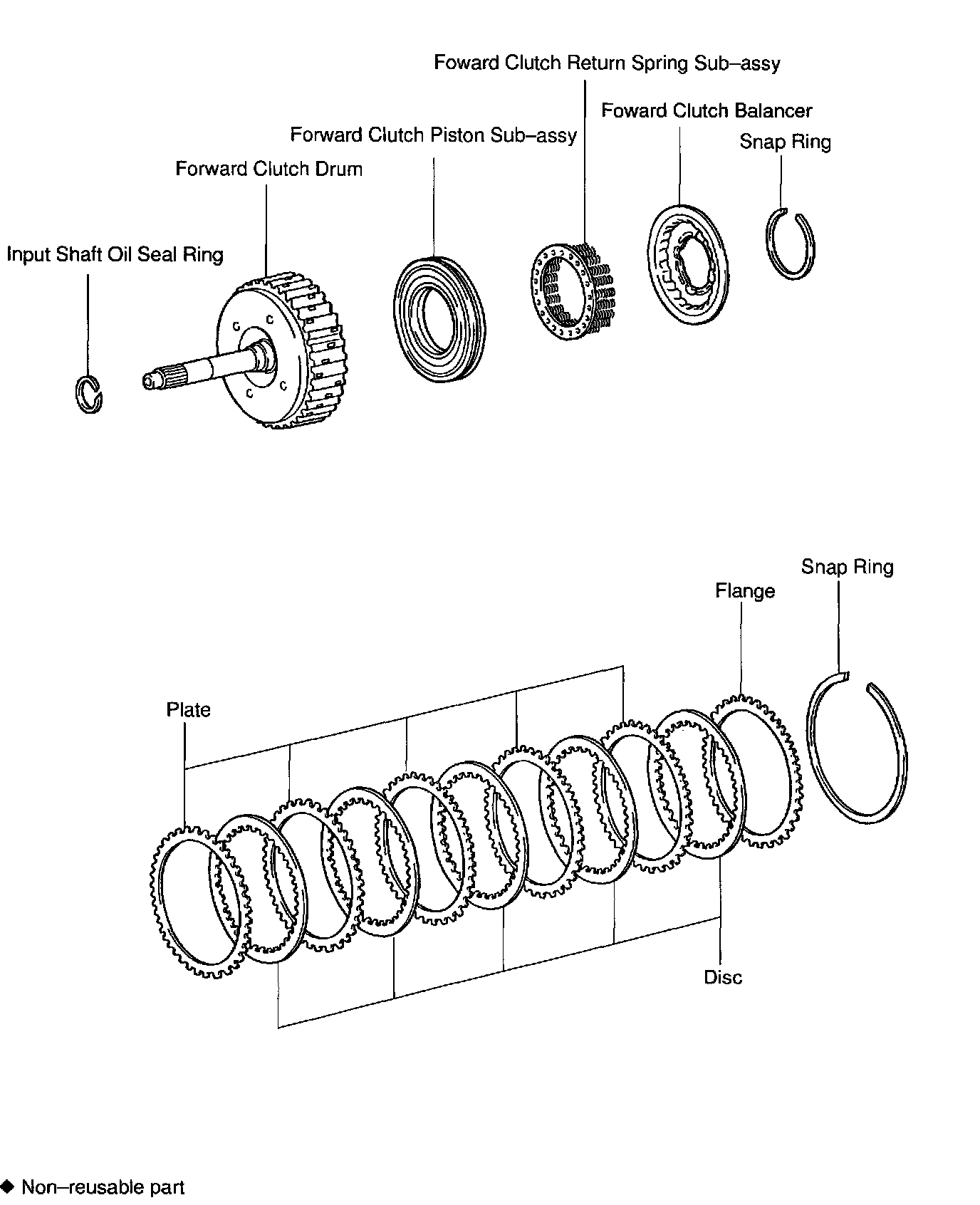

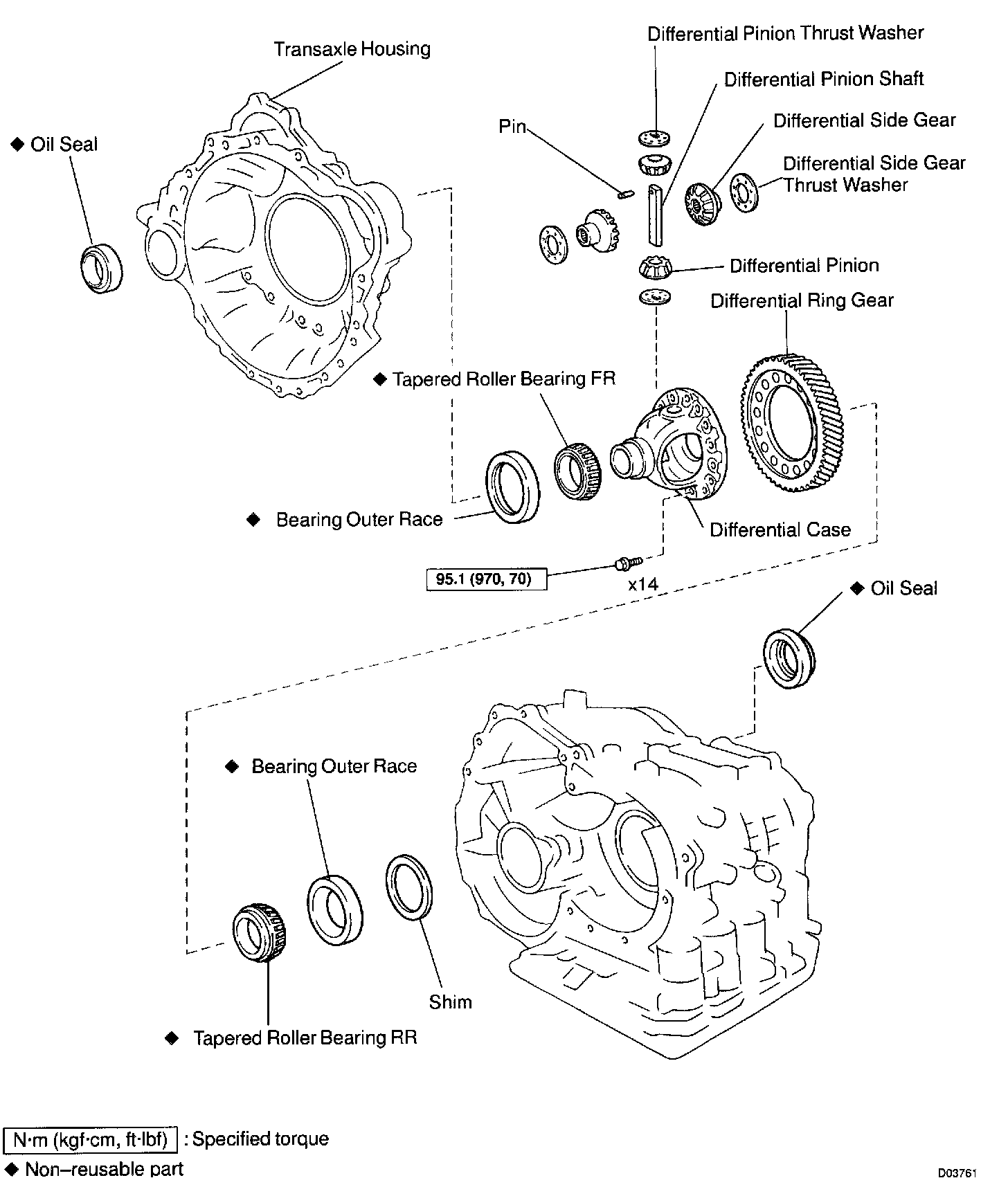

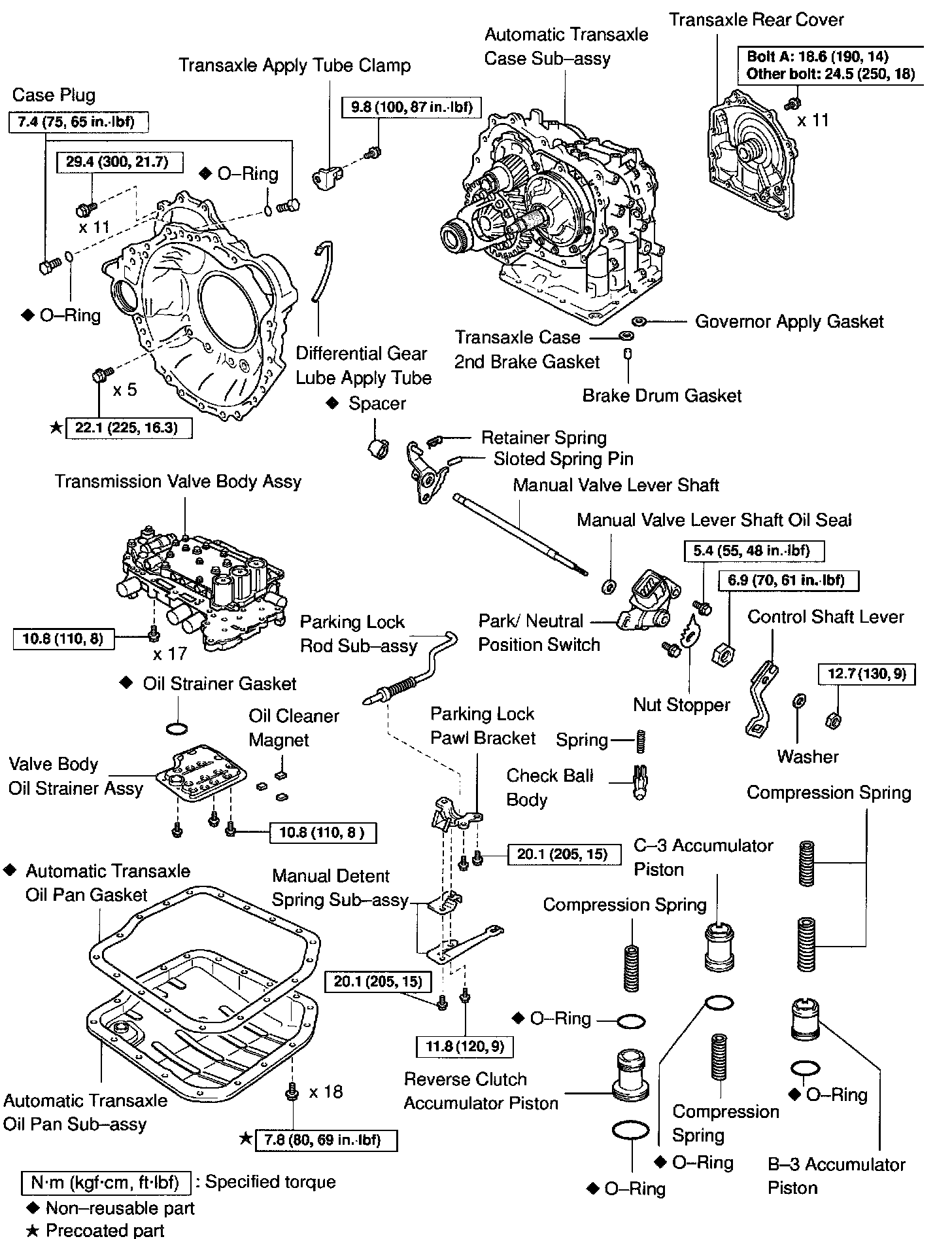

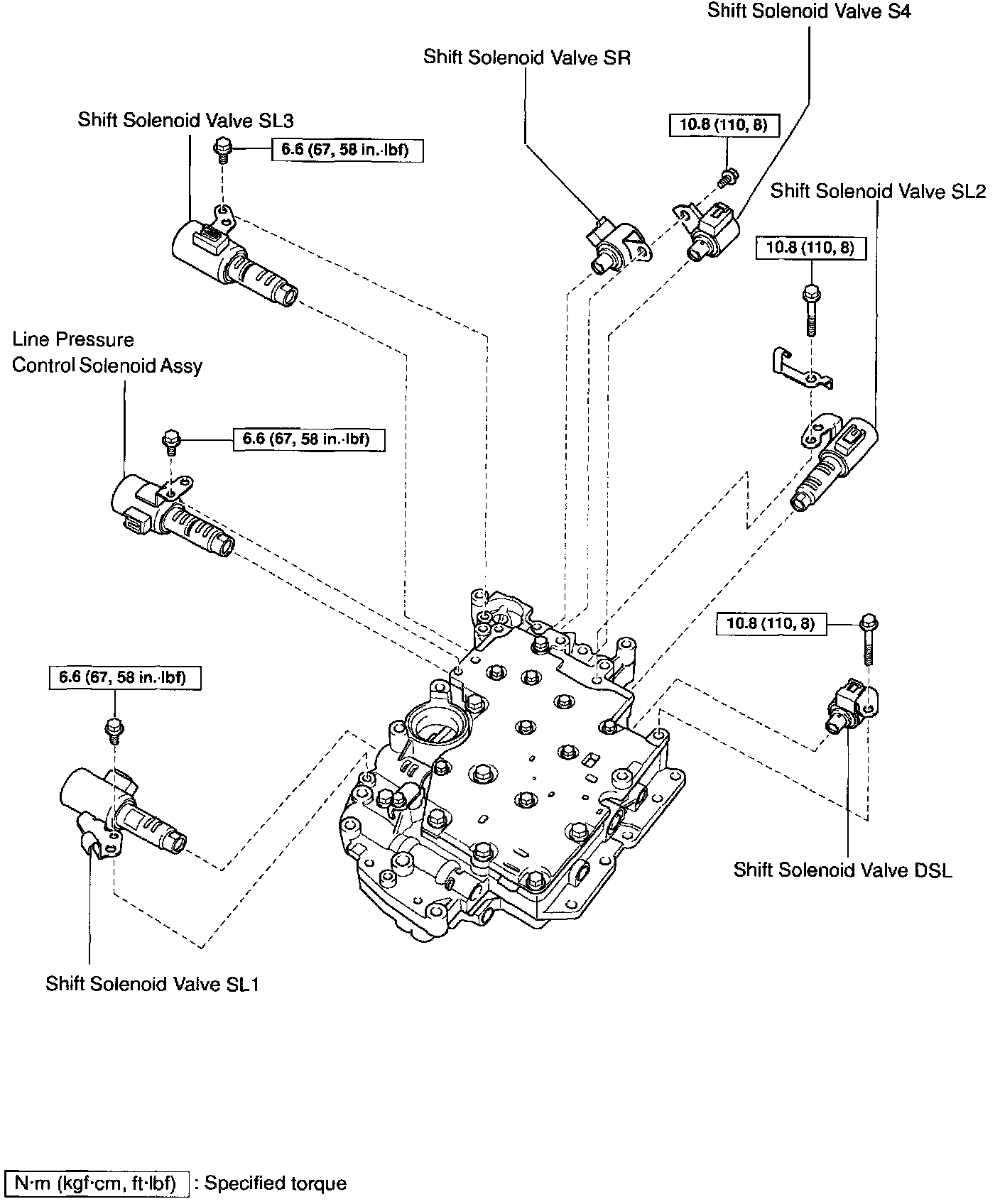

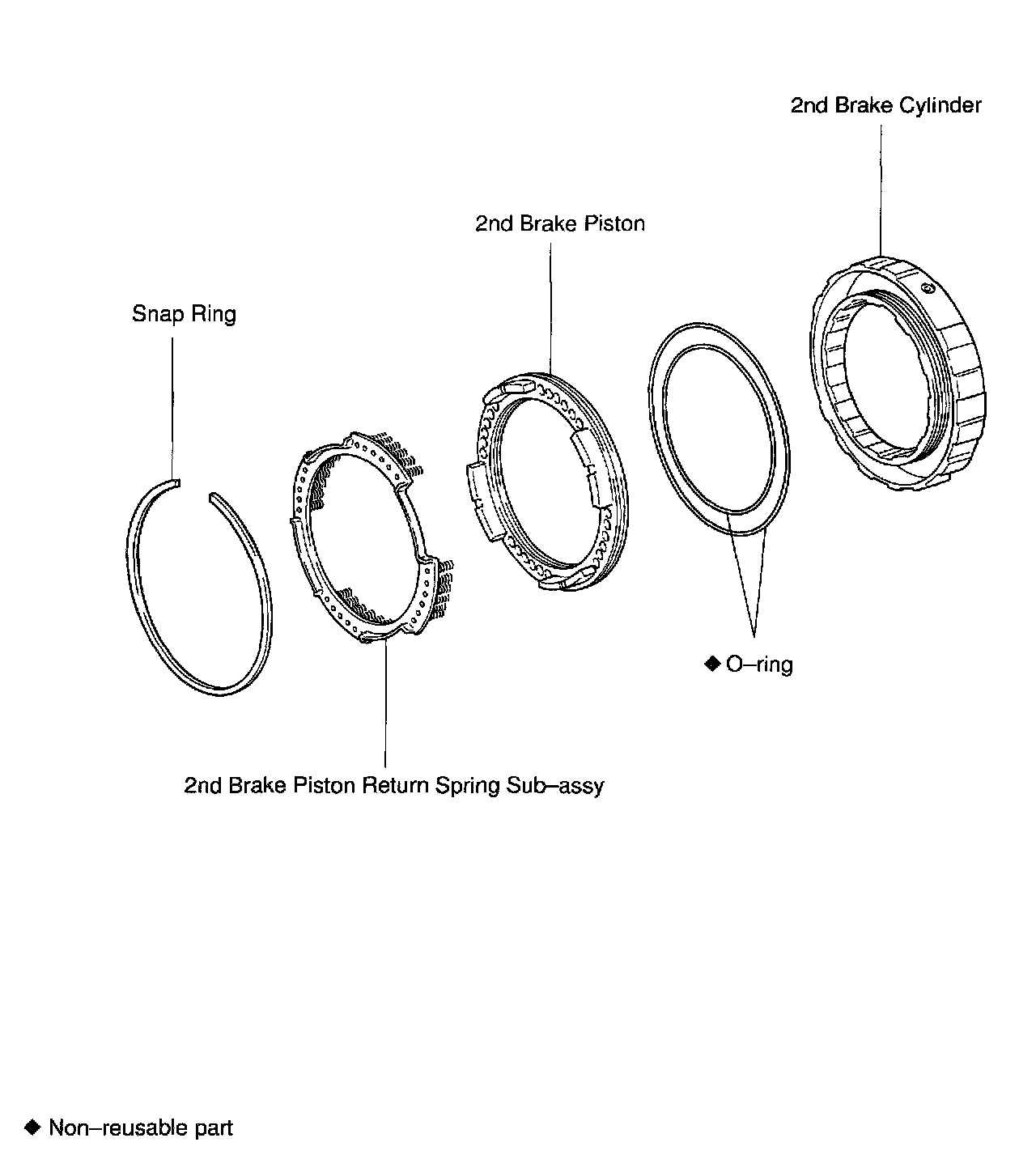

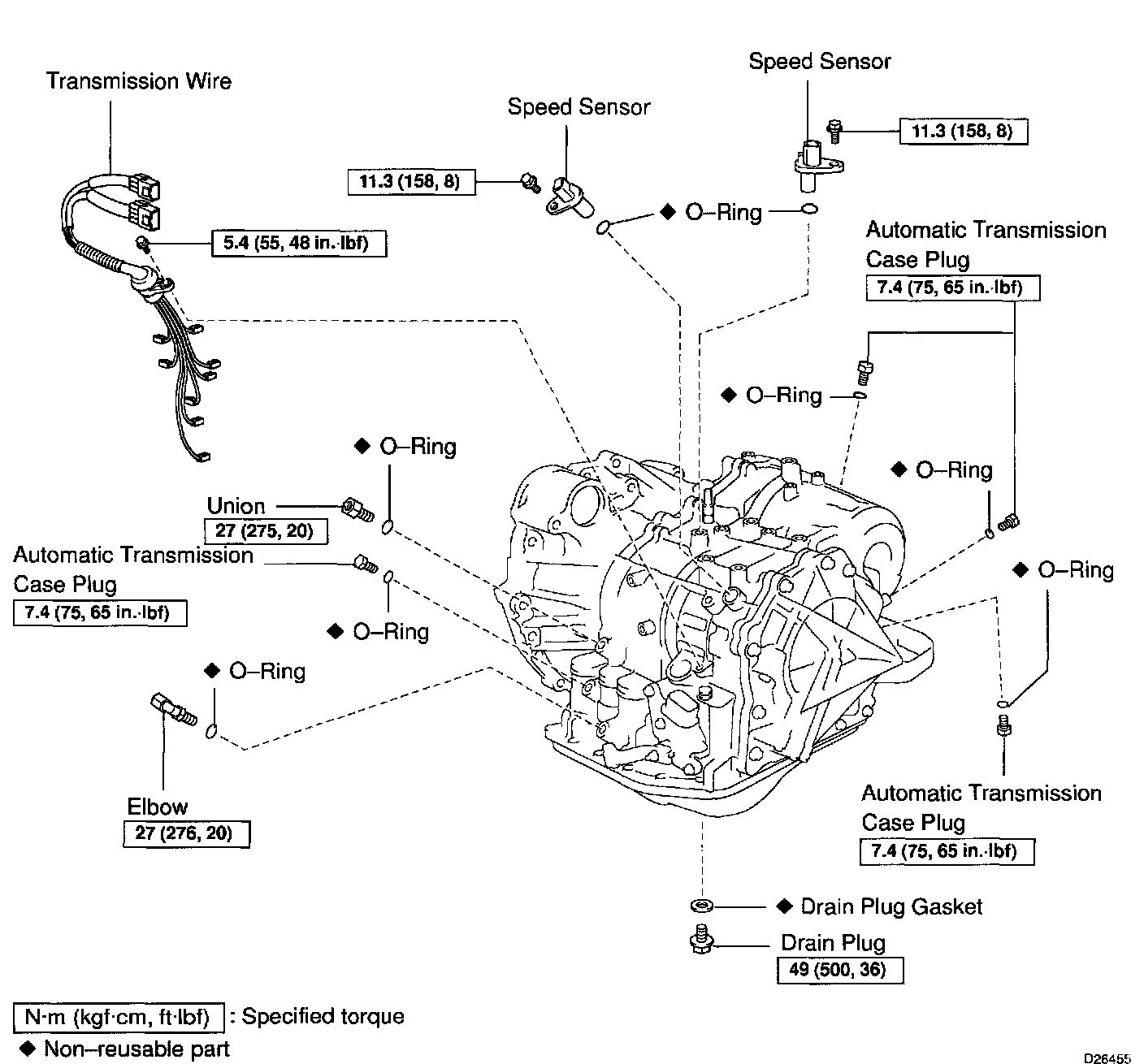

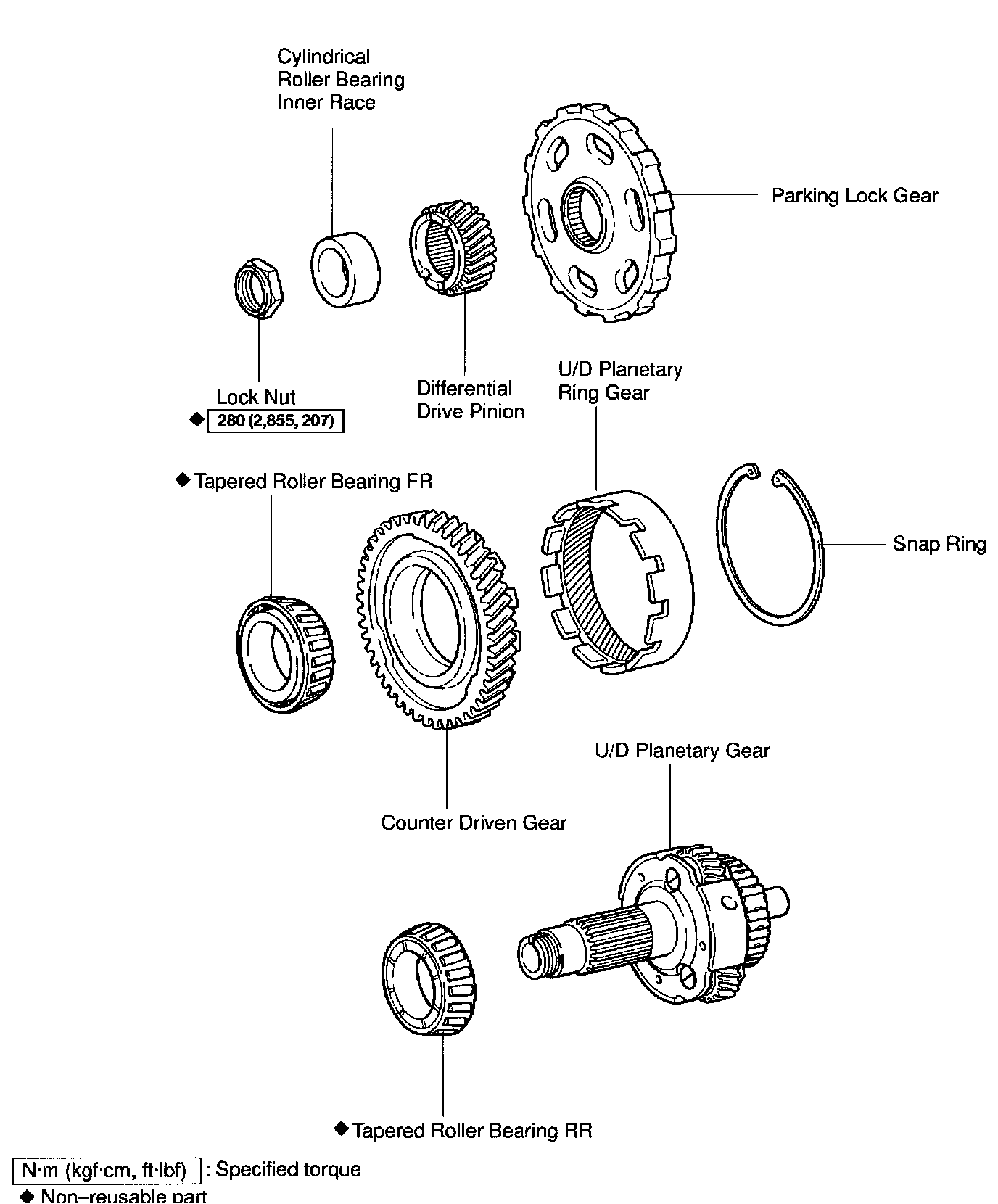

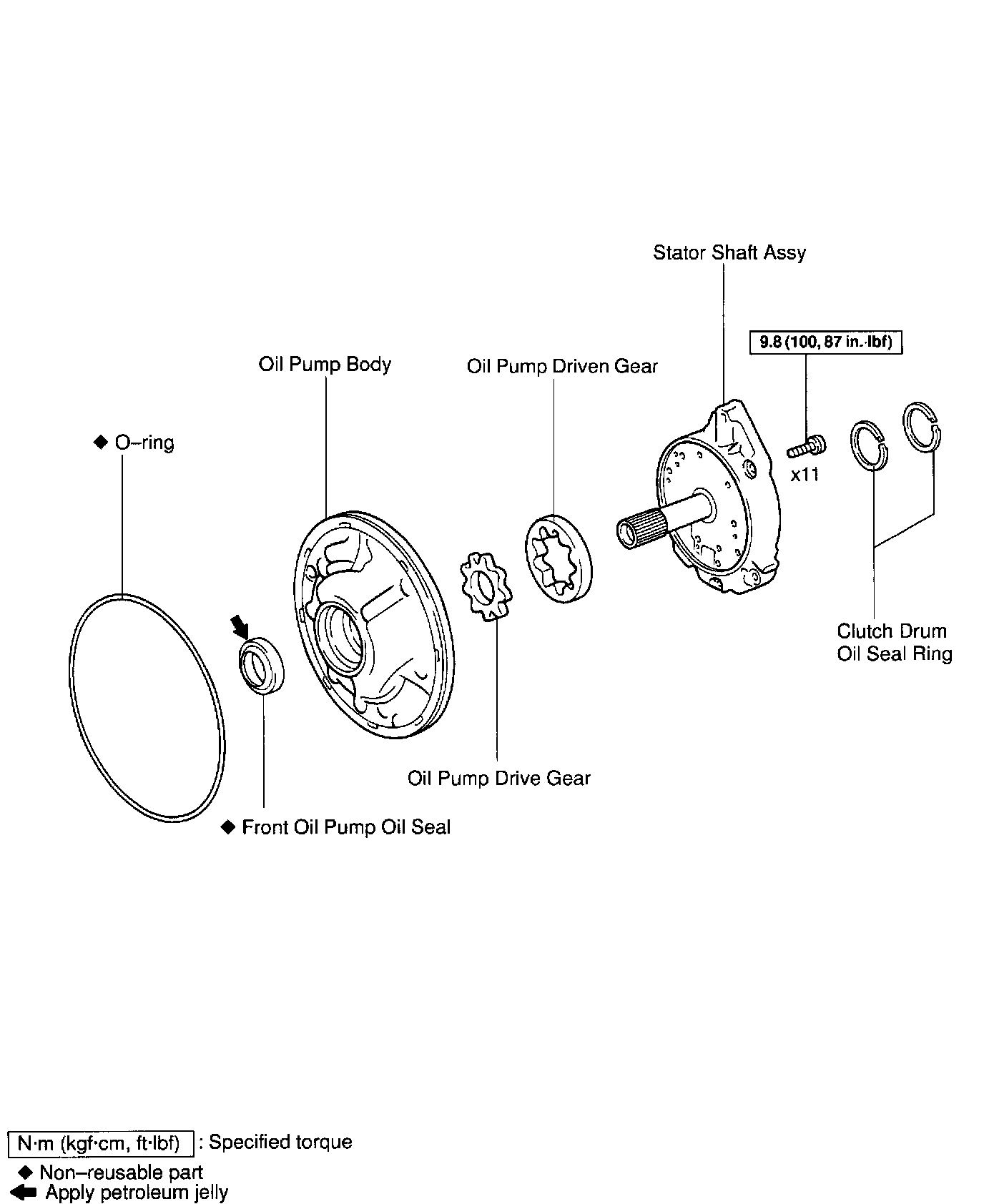

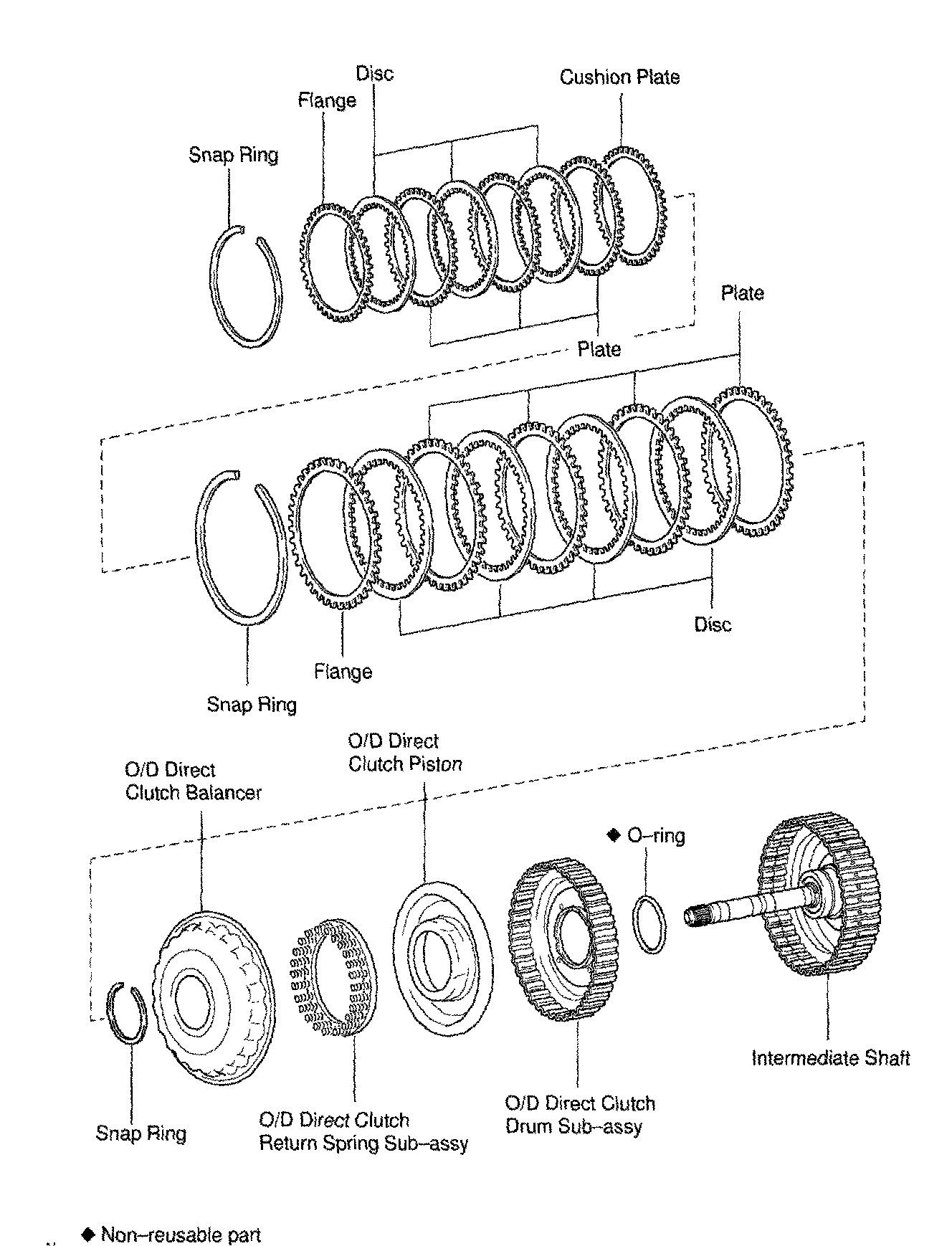

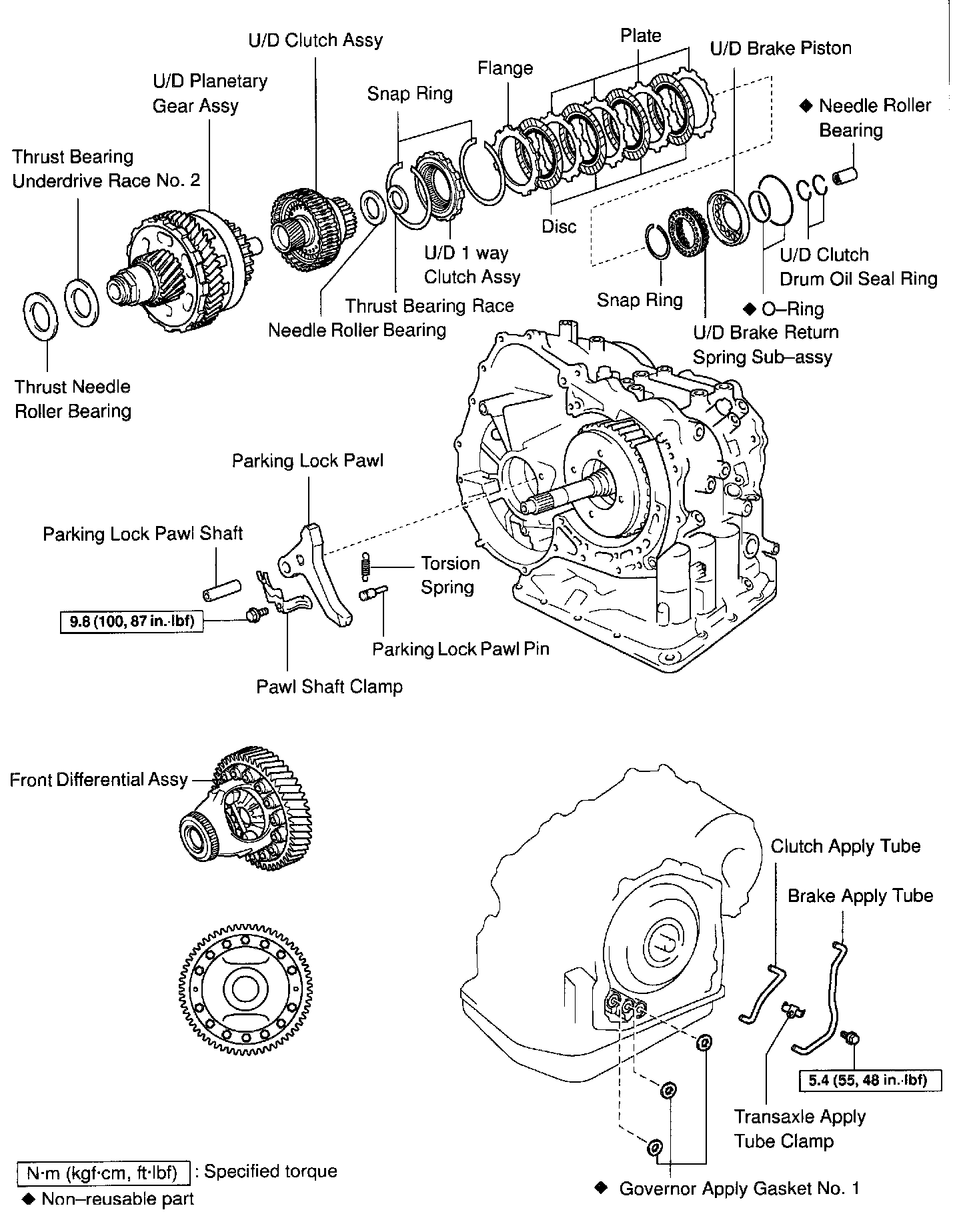

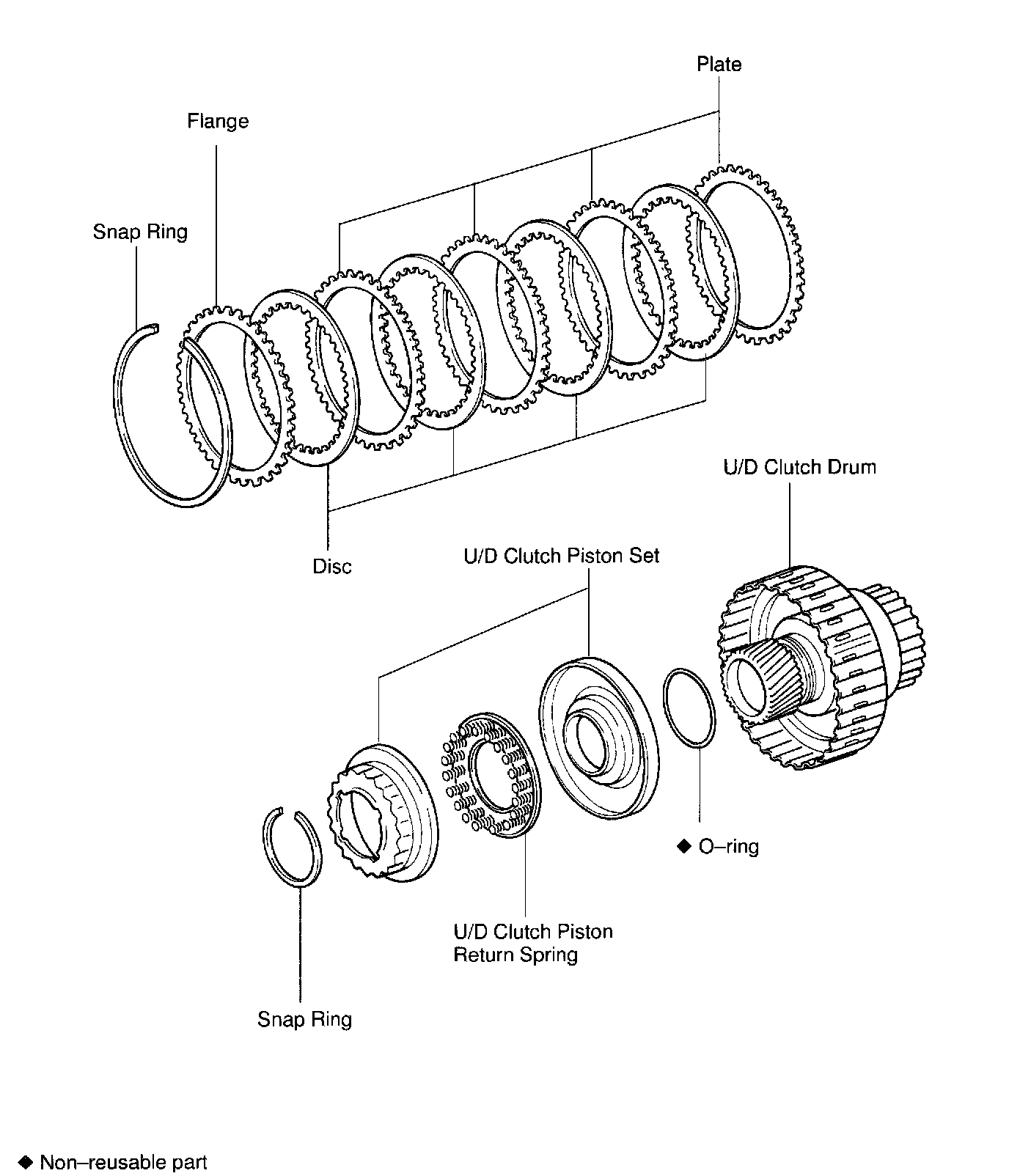

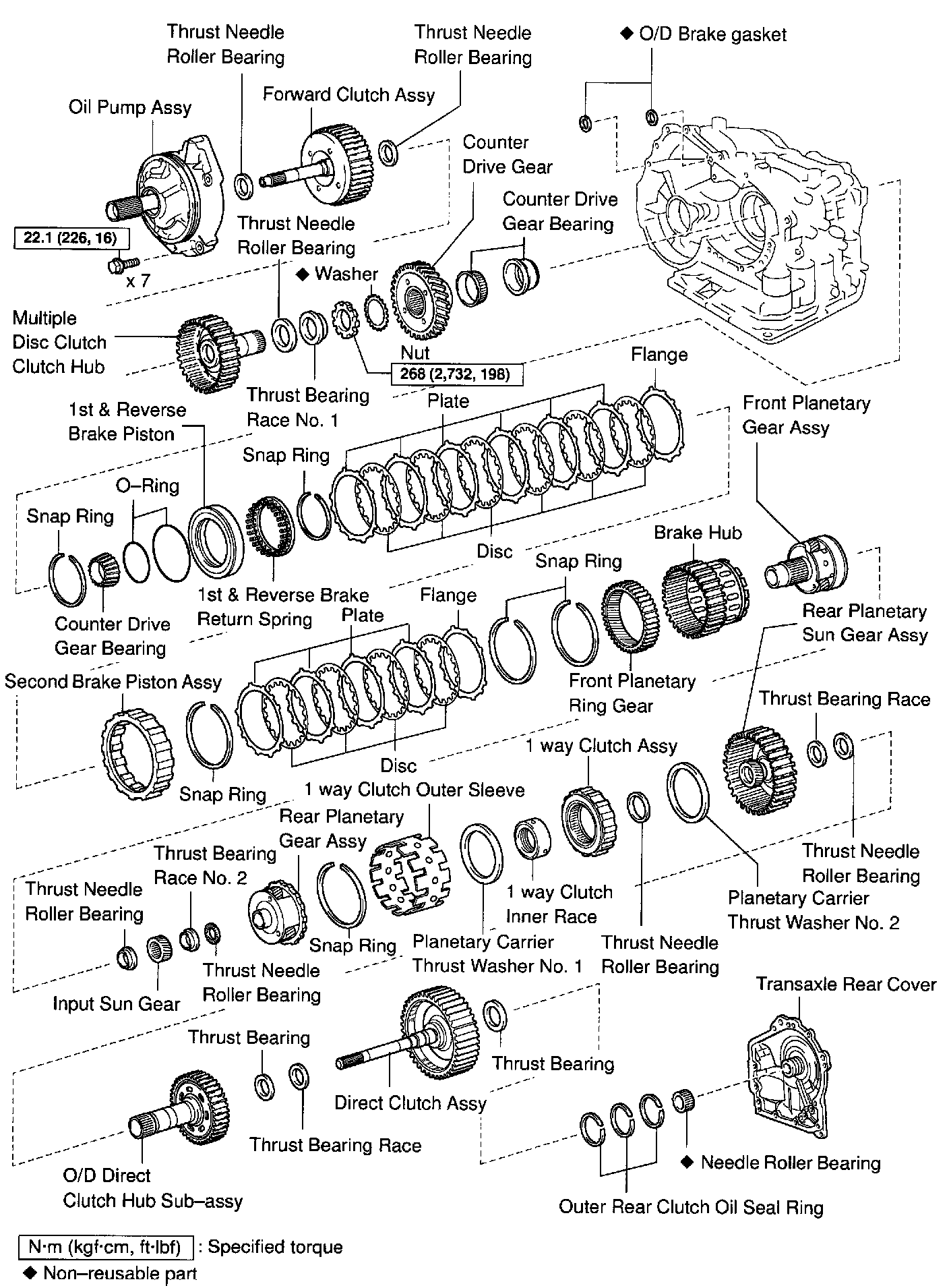

AUTOMATIC TRANSMISSION COMPONENT PARTS OVERHAUL W/ RELATED COMPONENTS
