Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2001
>>
GS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Body No. 2 Control System
Body No. 2 Control System

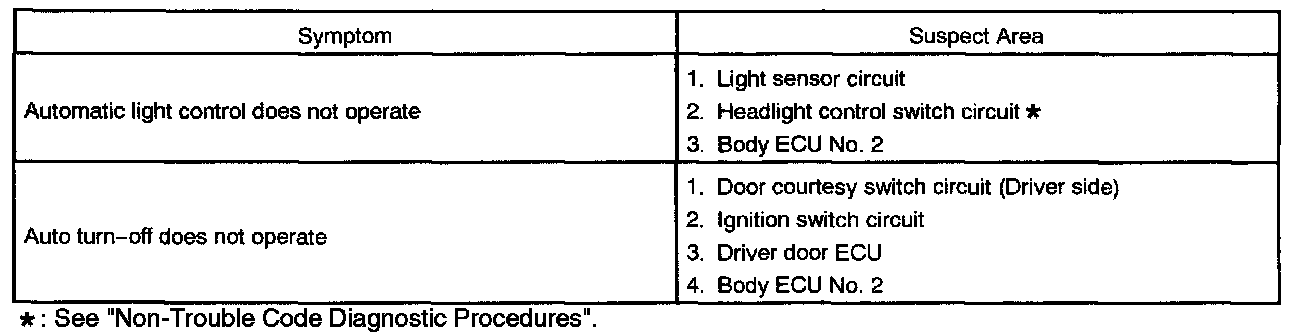

Problem Symptoms Table - Light Control:

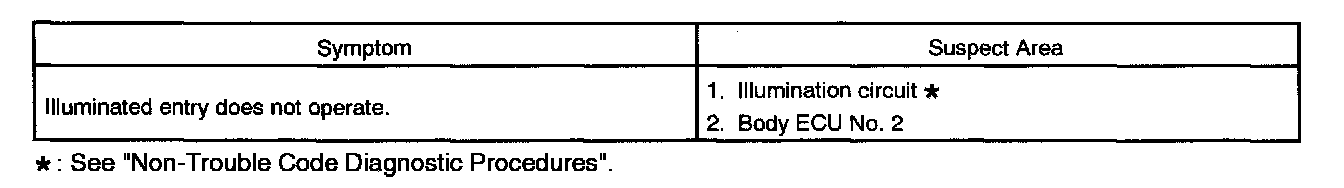

Problem Symptoms Table - Illuminated Entry:

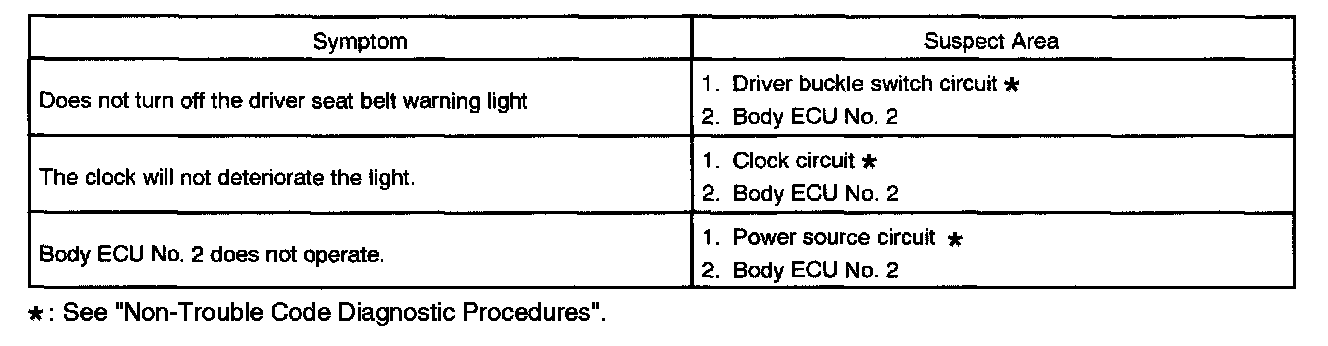

Problem Symptoms Table - Others:
