Lexus
>>
1999
>>
LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Head Assembly
Cylinder Head Assembly

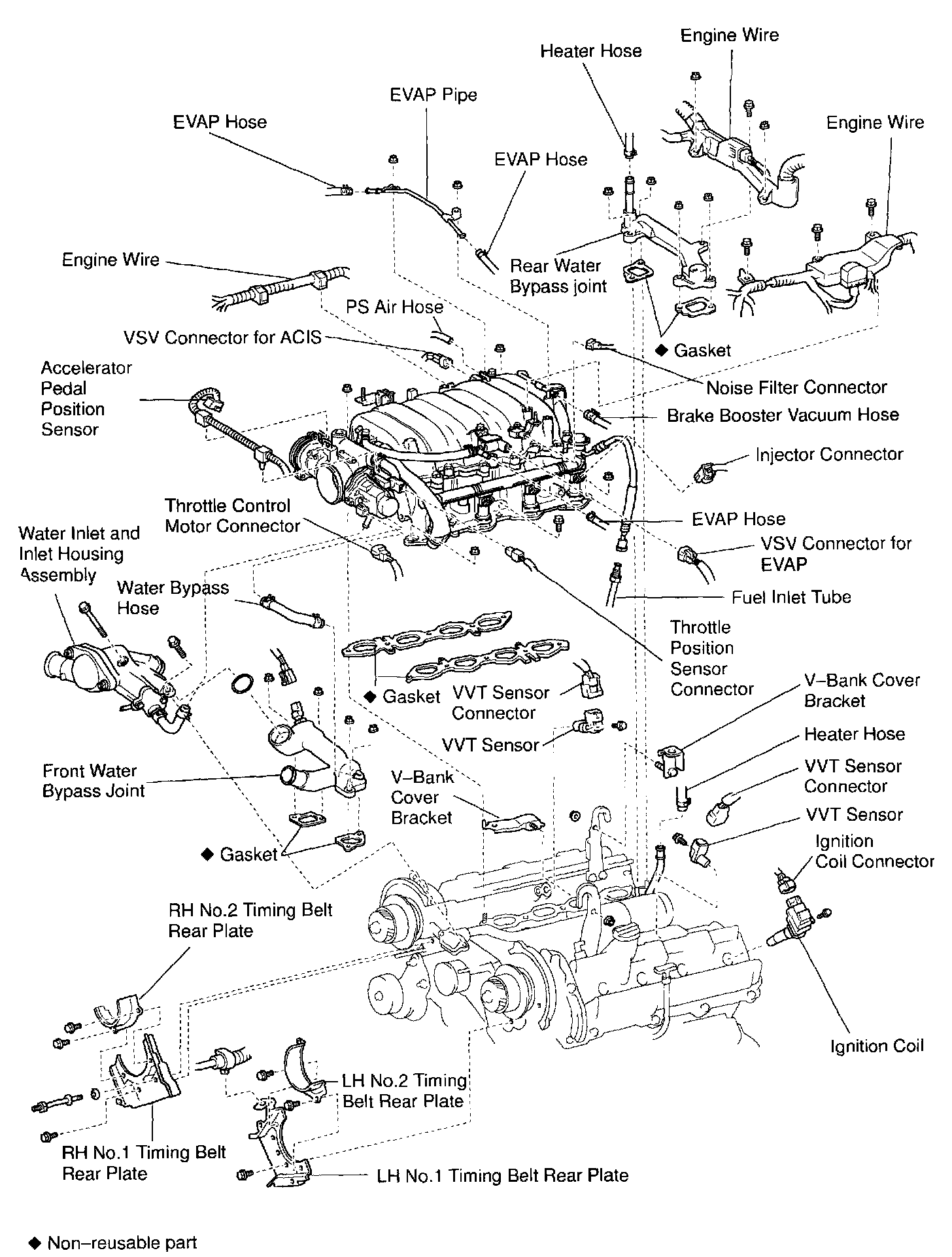

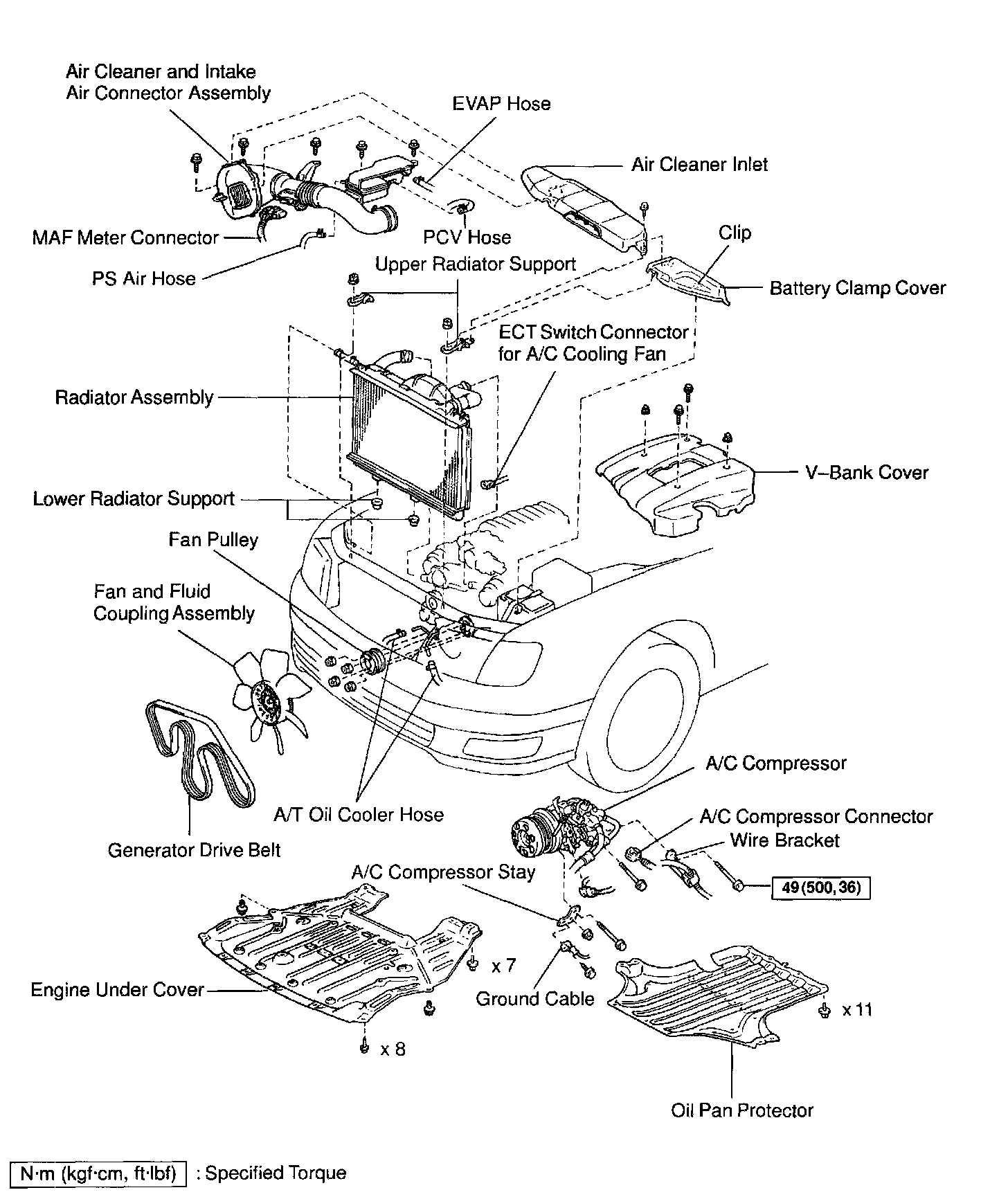

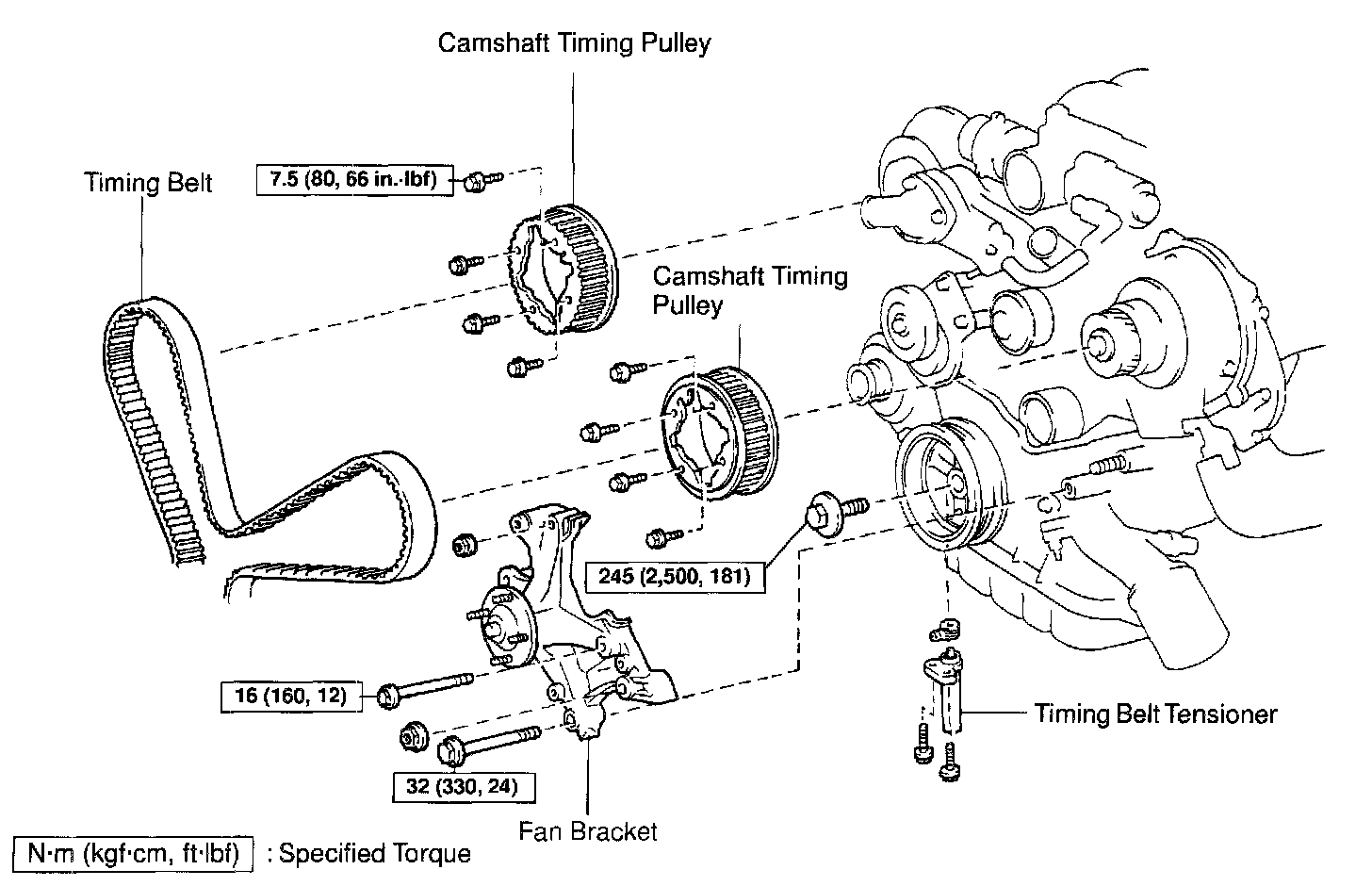

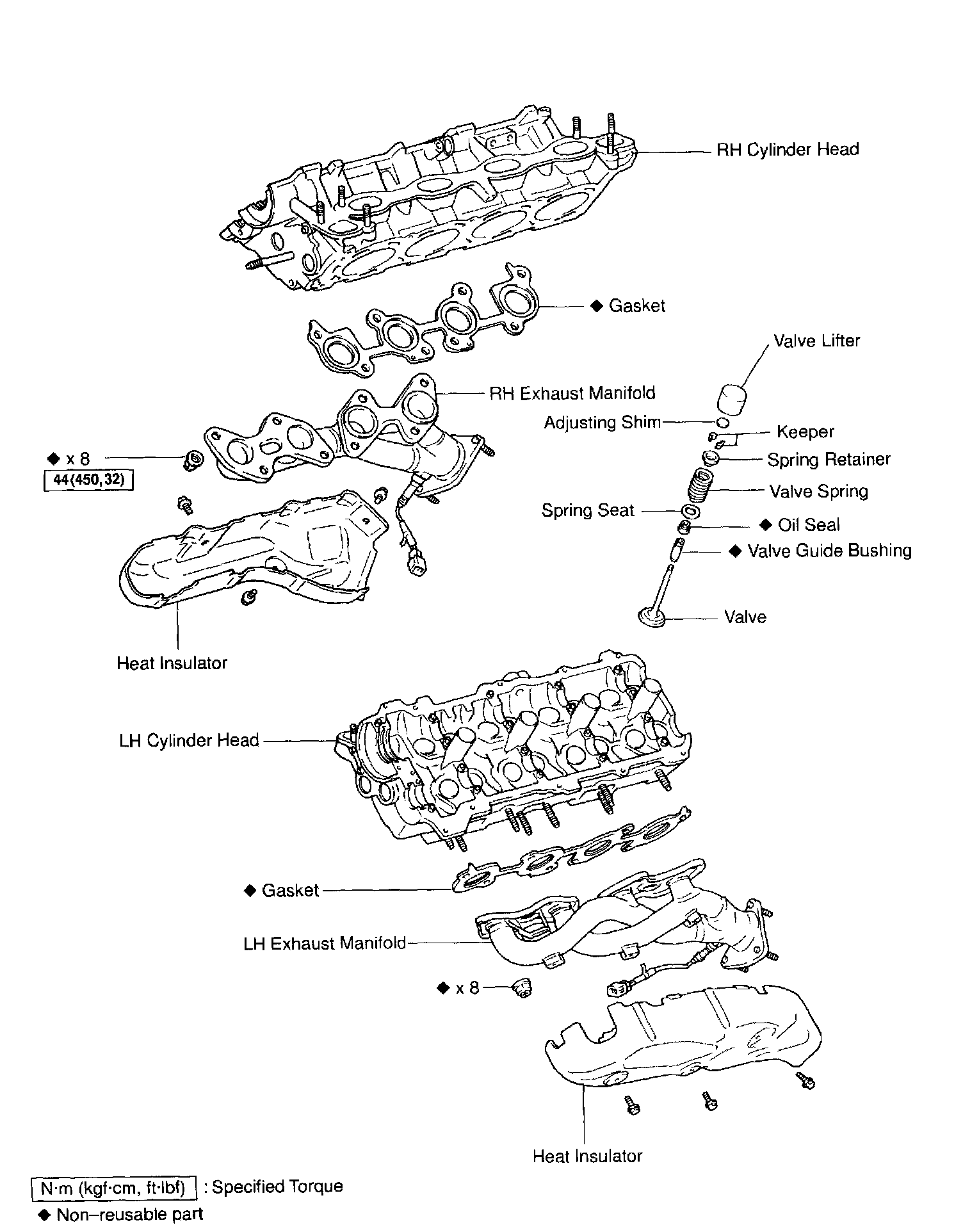

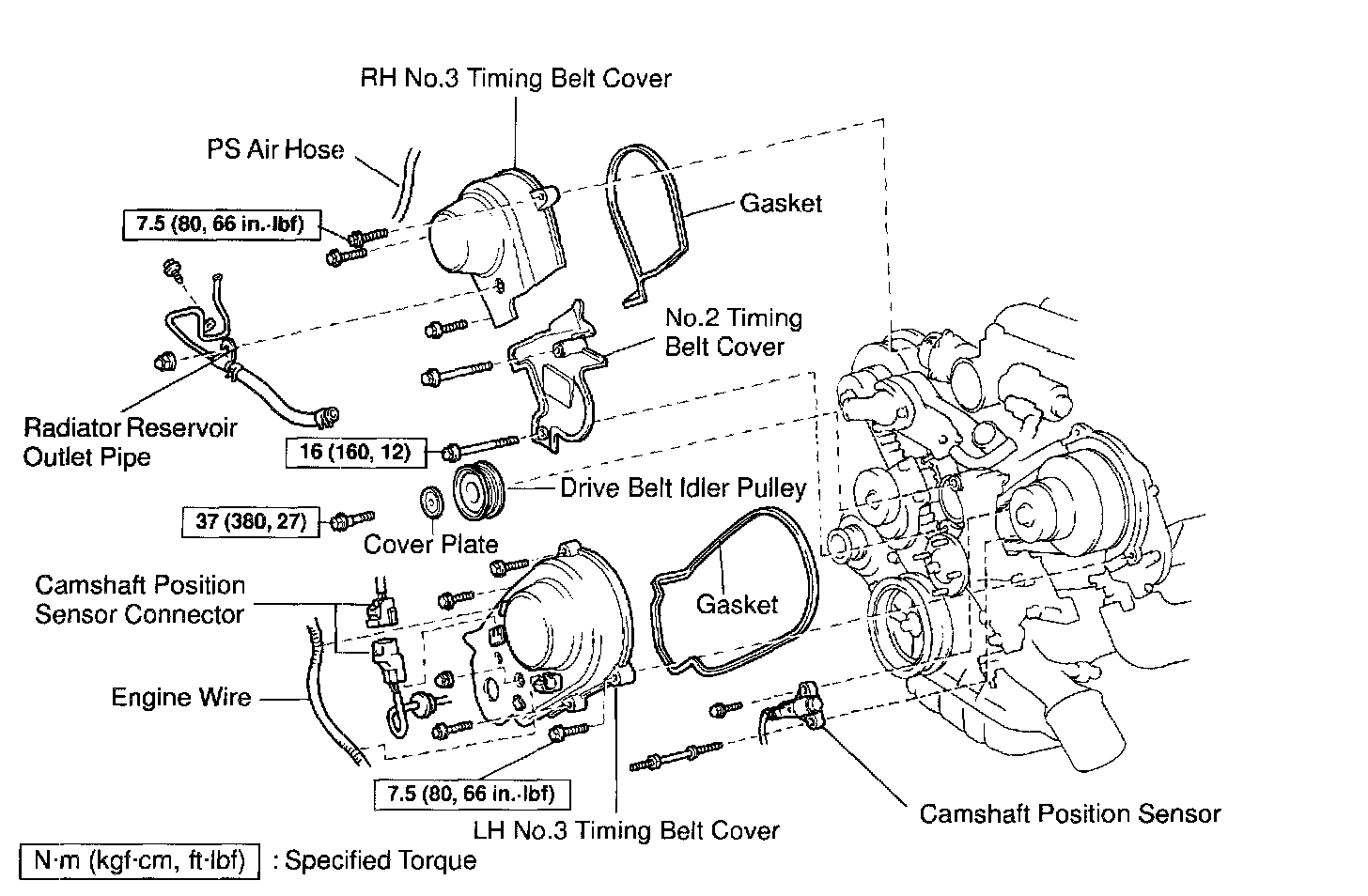

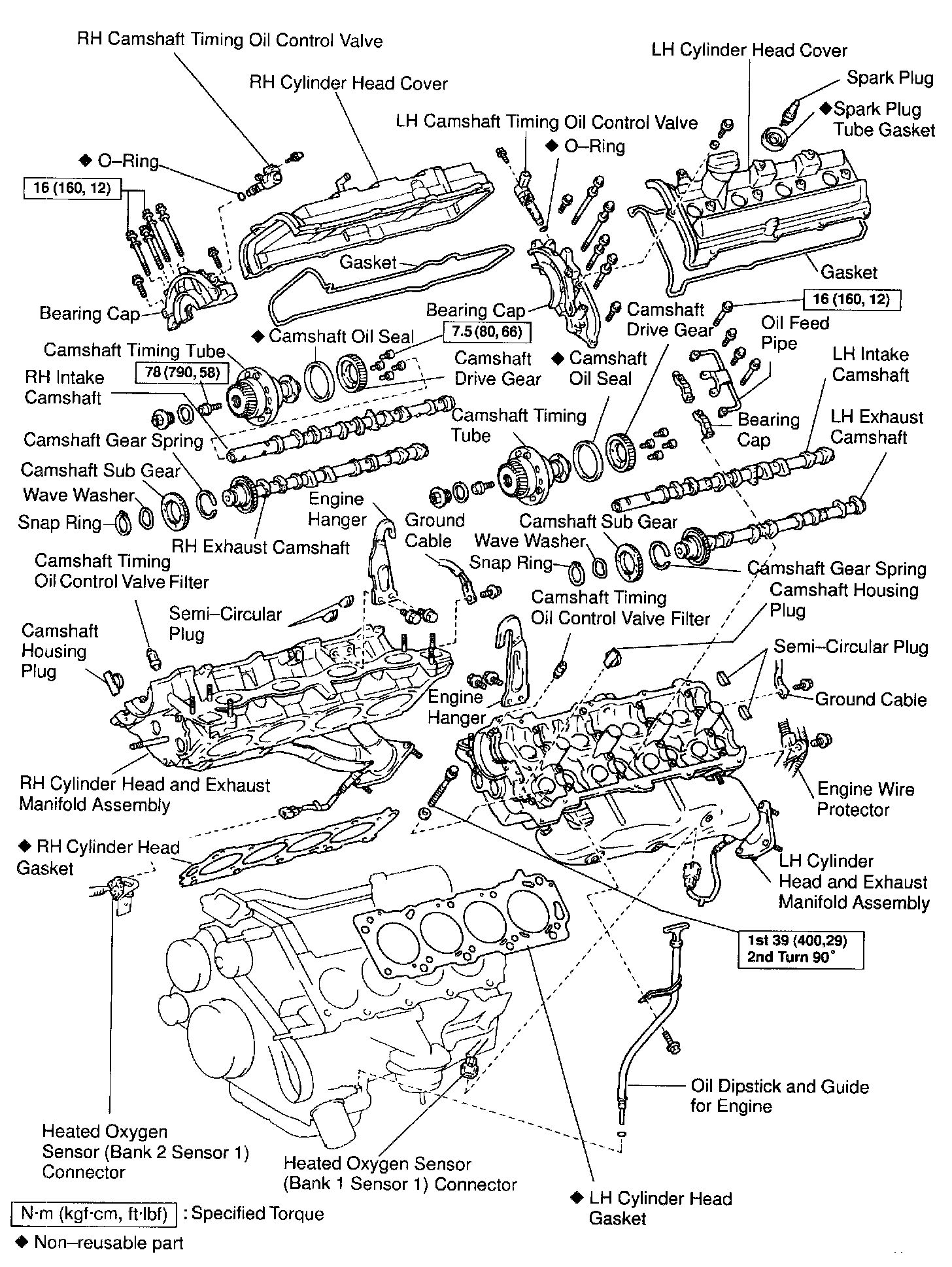

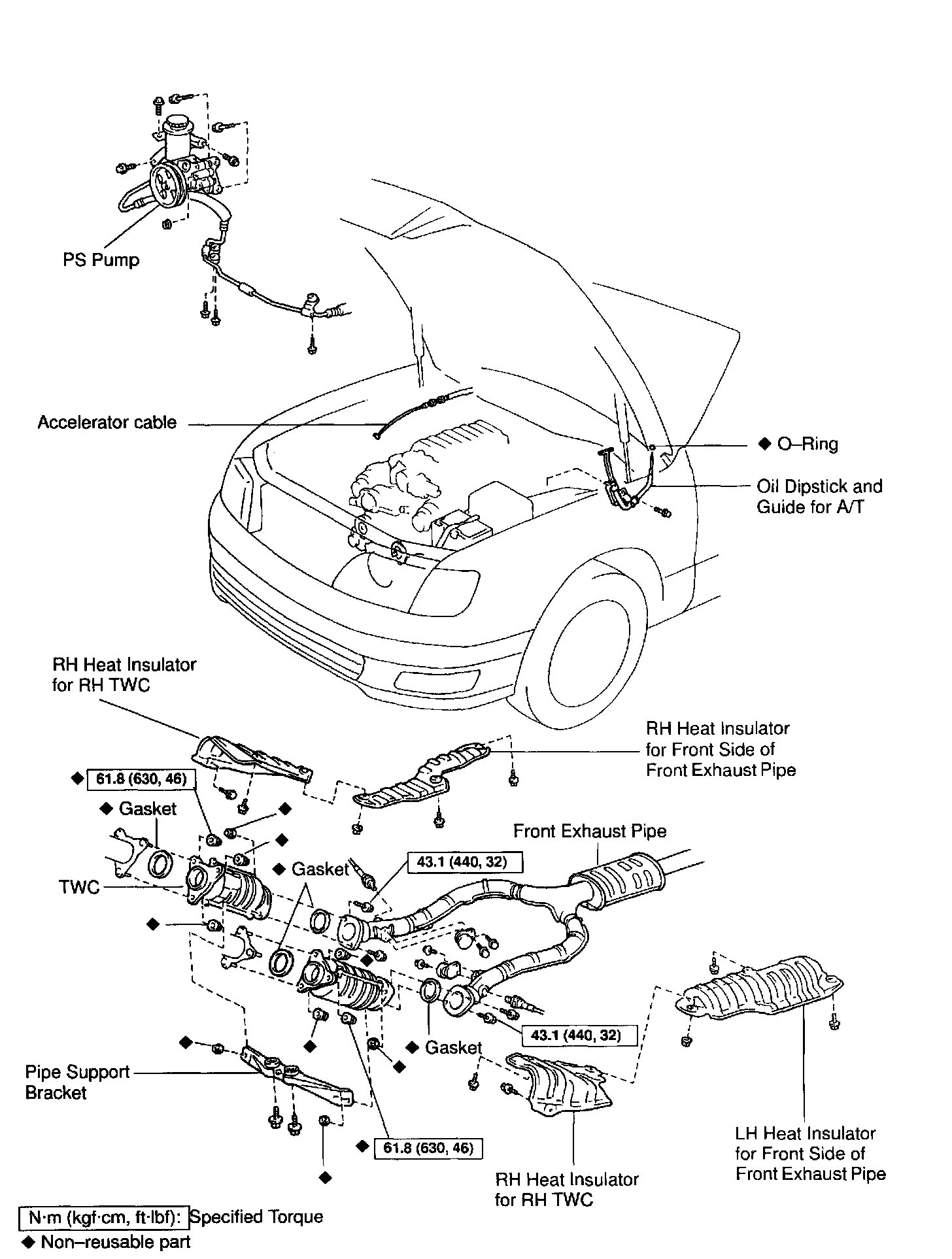

Cylinder Head Overhaul Exploded Views
