GS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram
ECM Cover And Connectors:

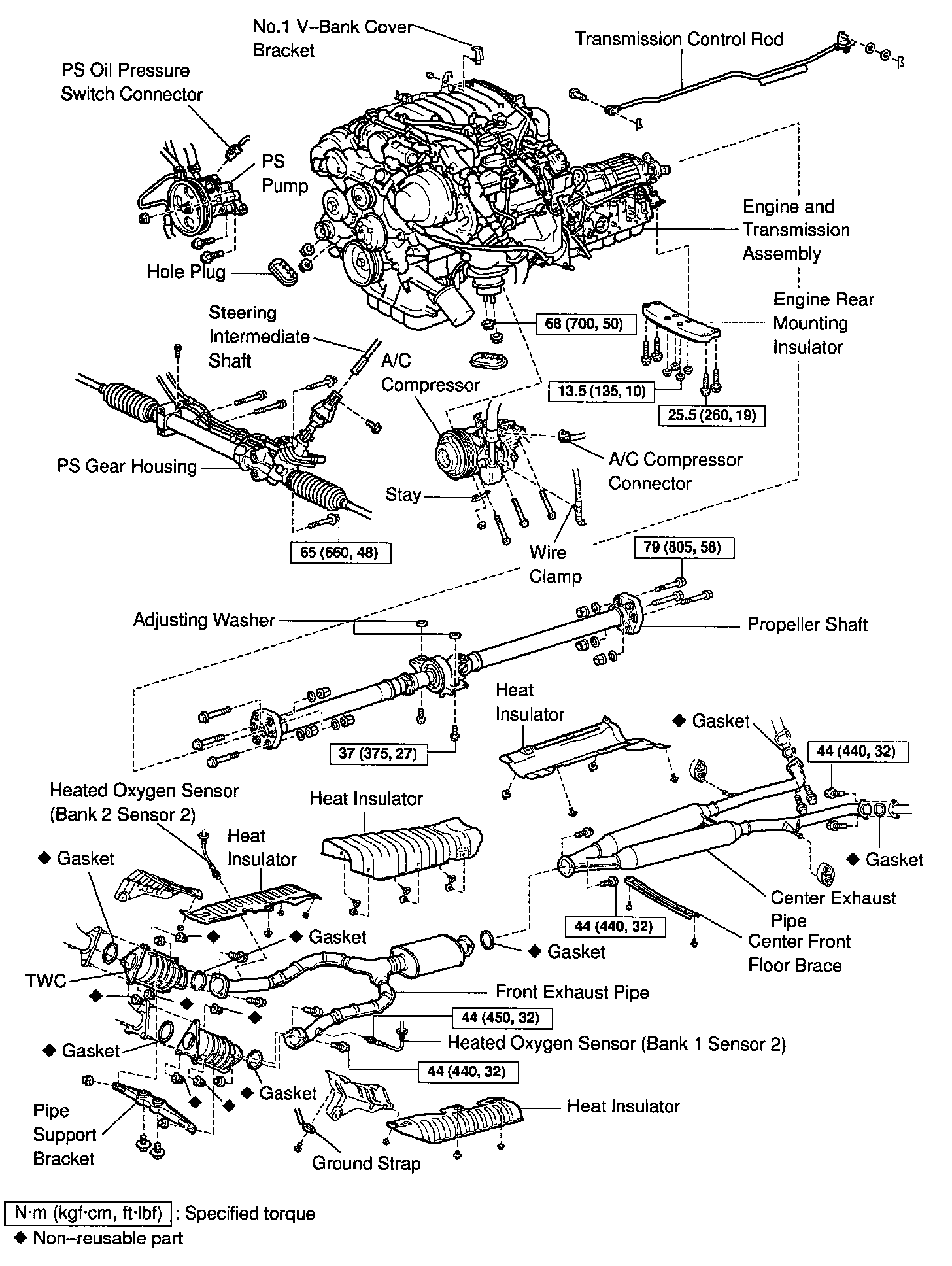

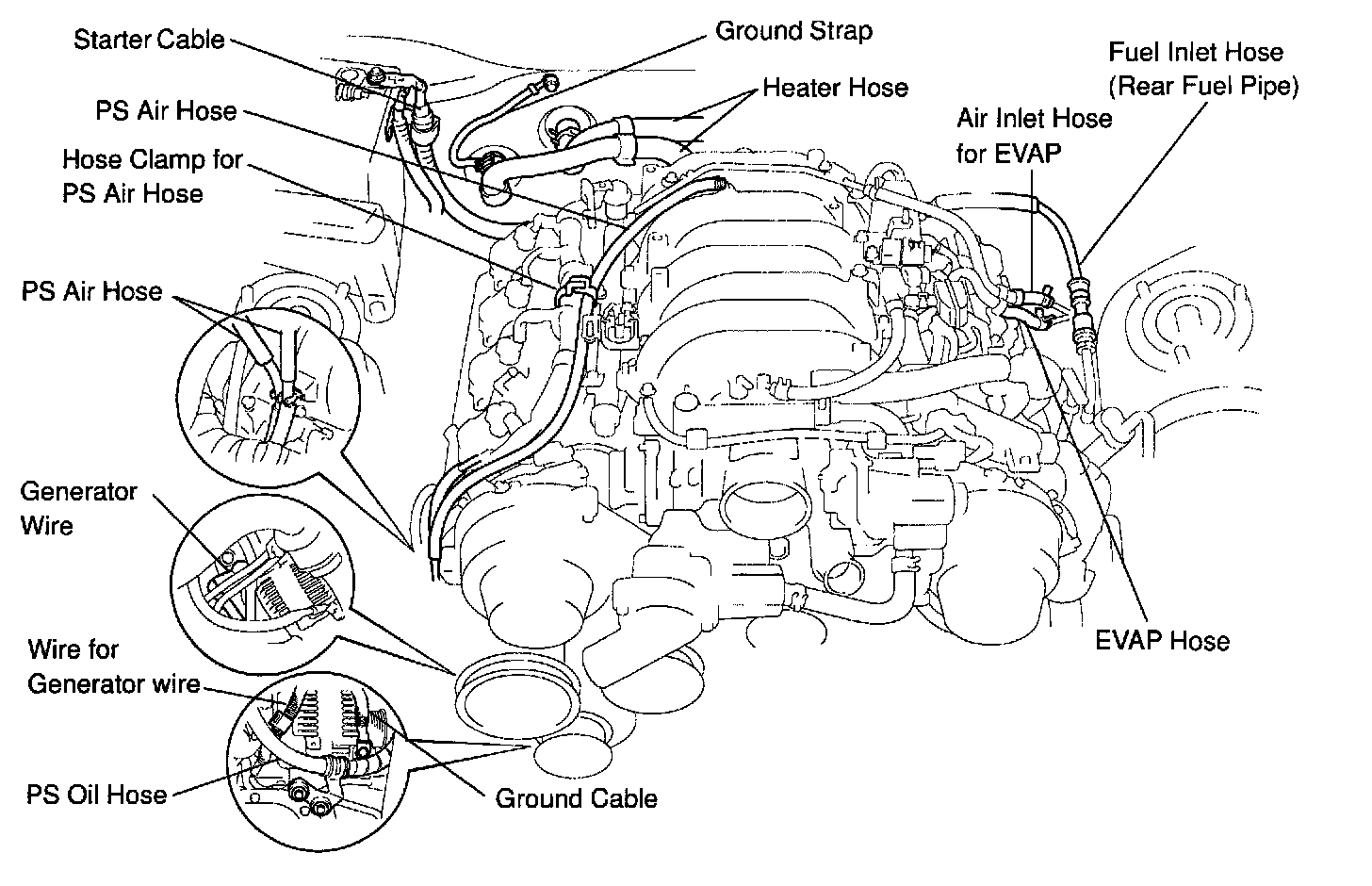

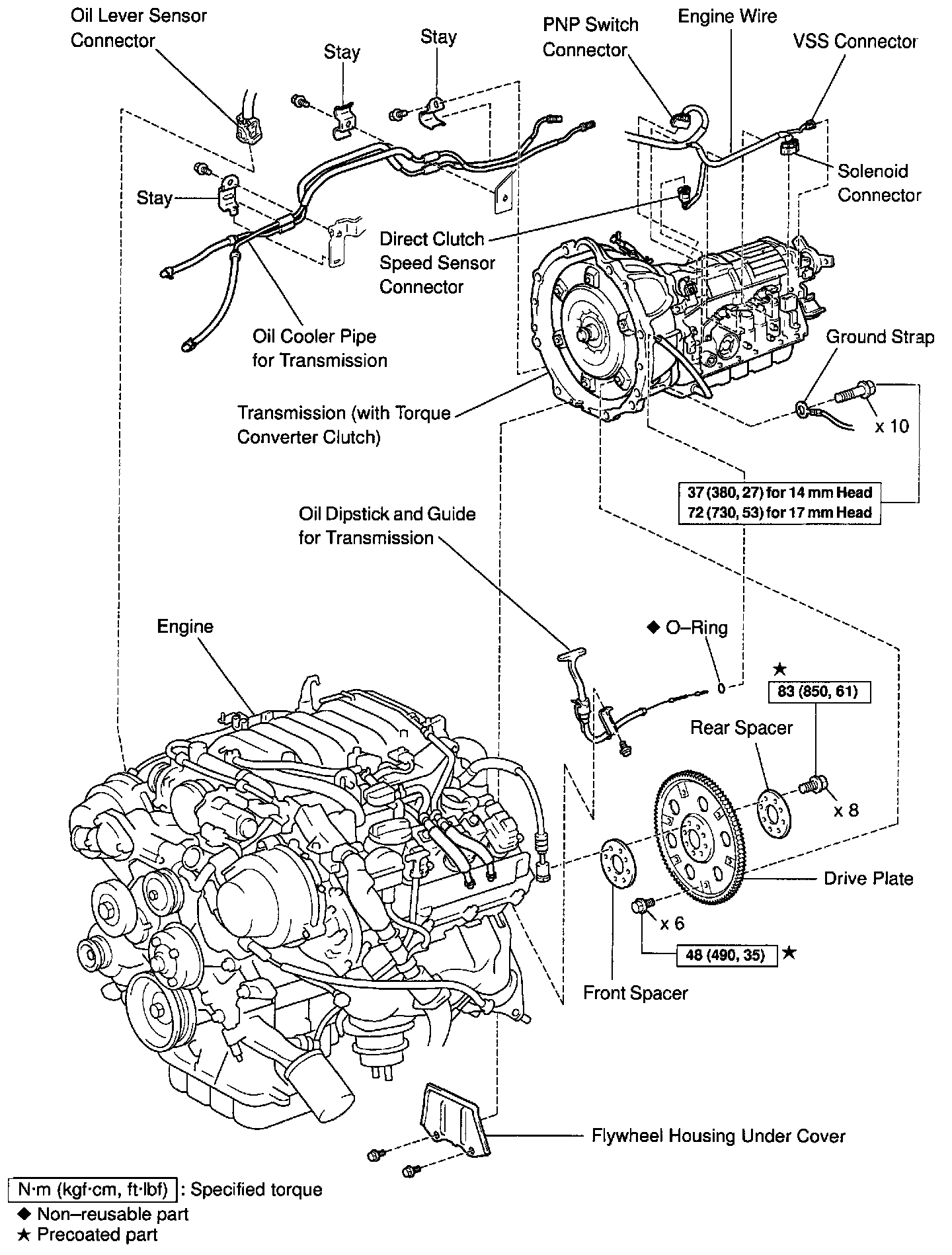

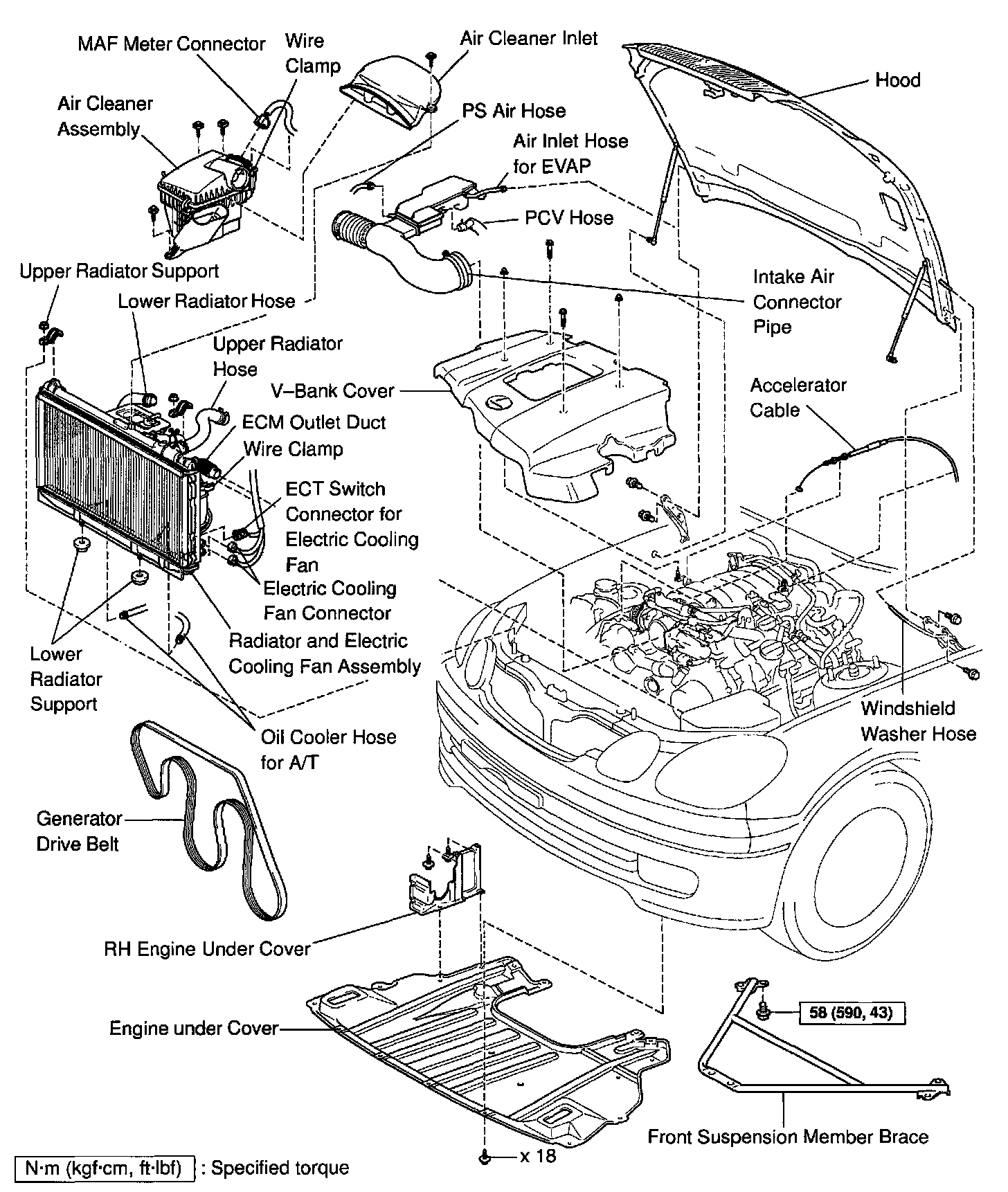

ENGINE UNIT COMPONENTS
