Home
>>
Lexus
>>
1999
>>
ES 300 V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

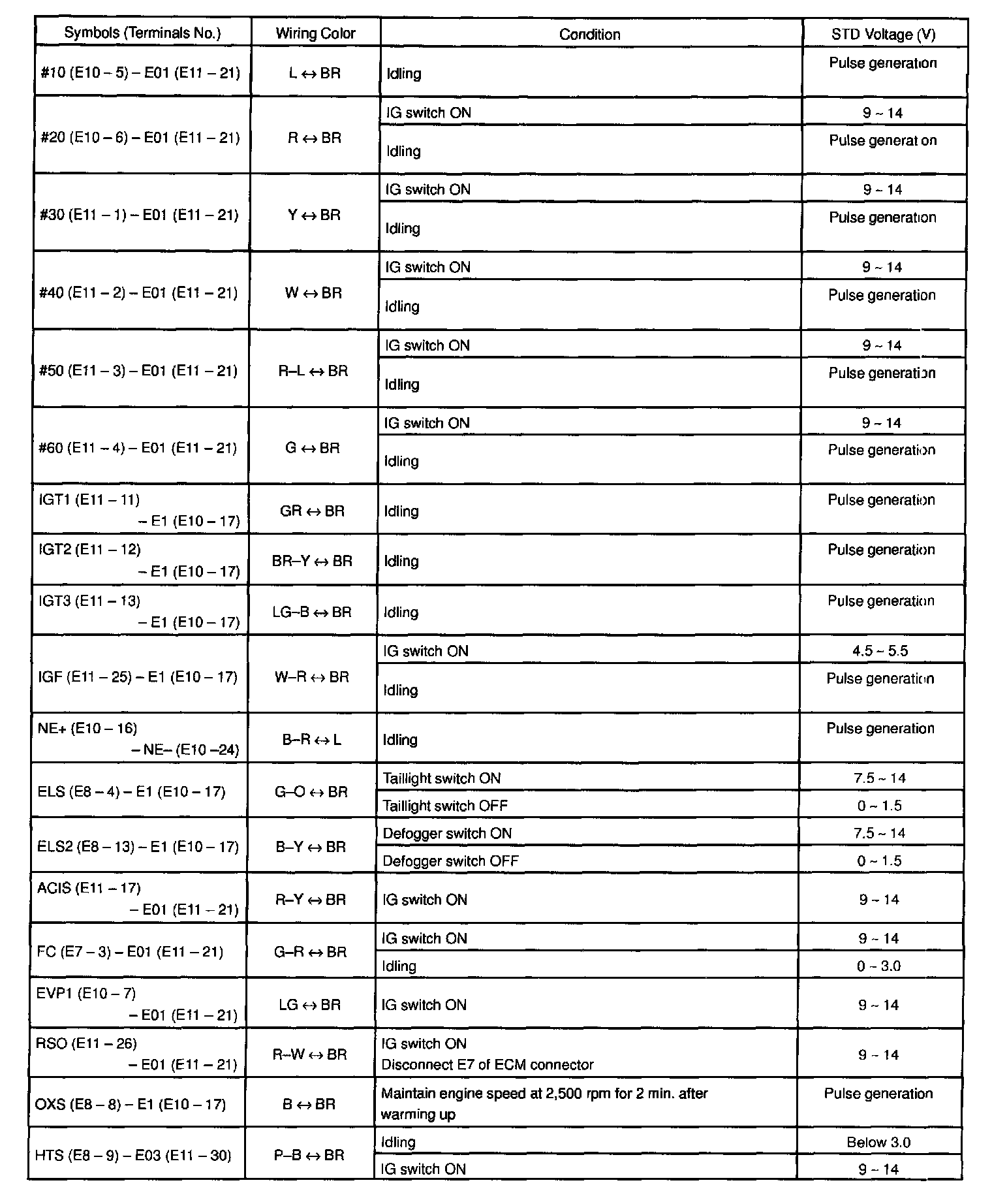

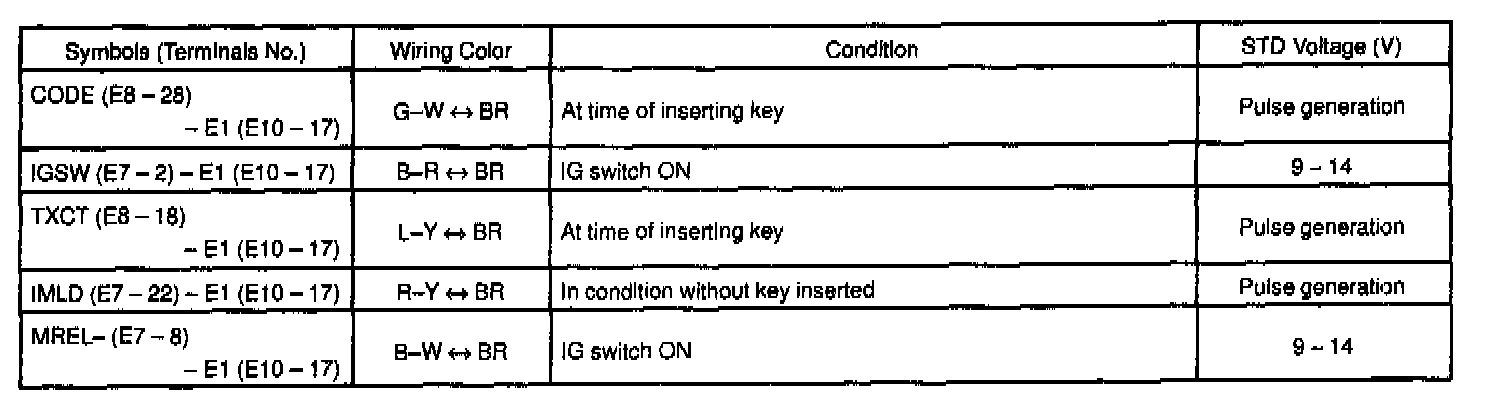

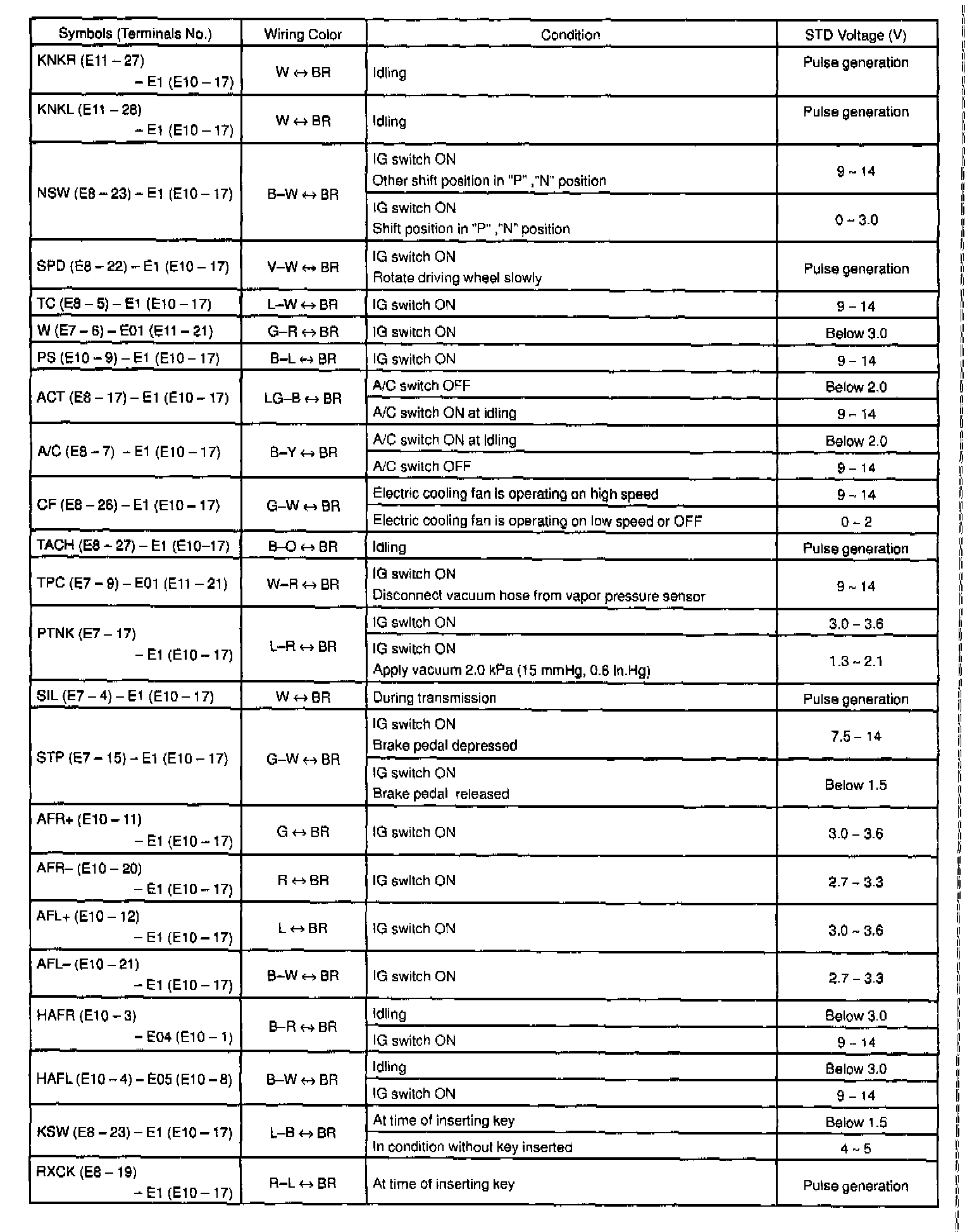

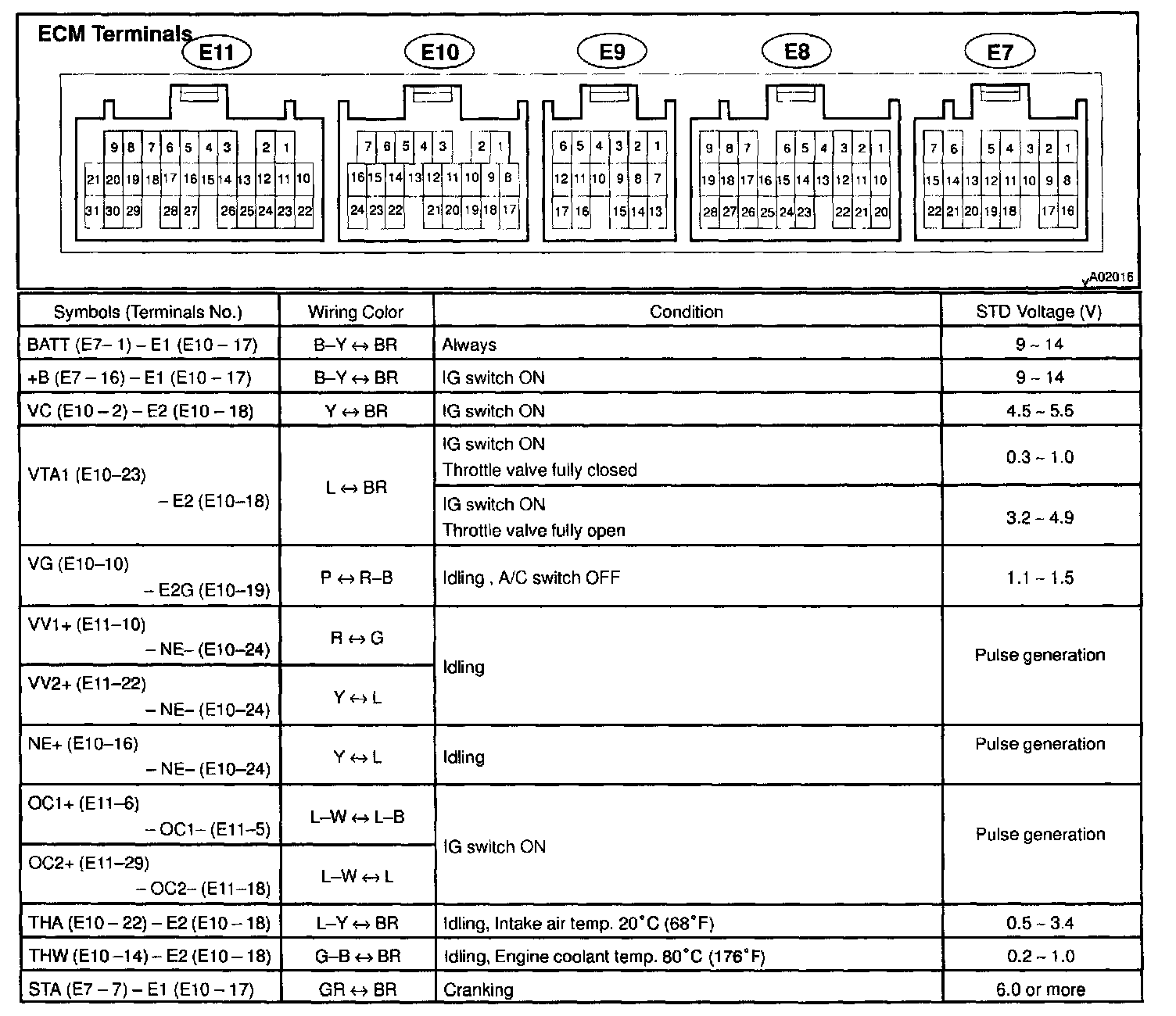

ECM Pin out Values
