System Specifications

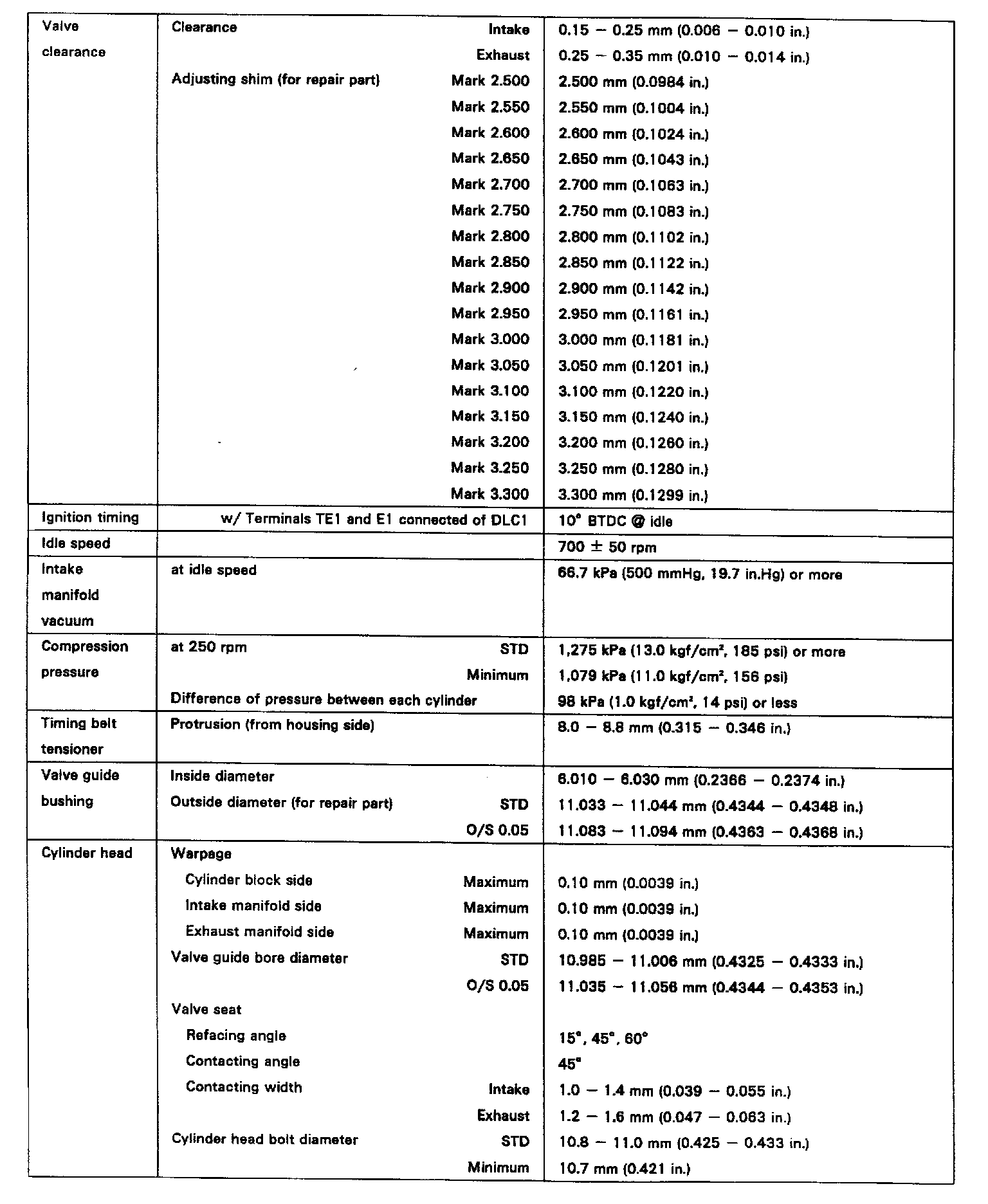

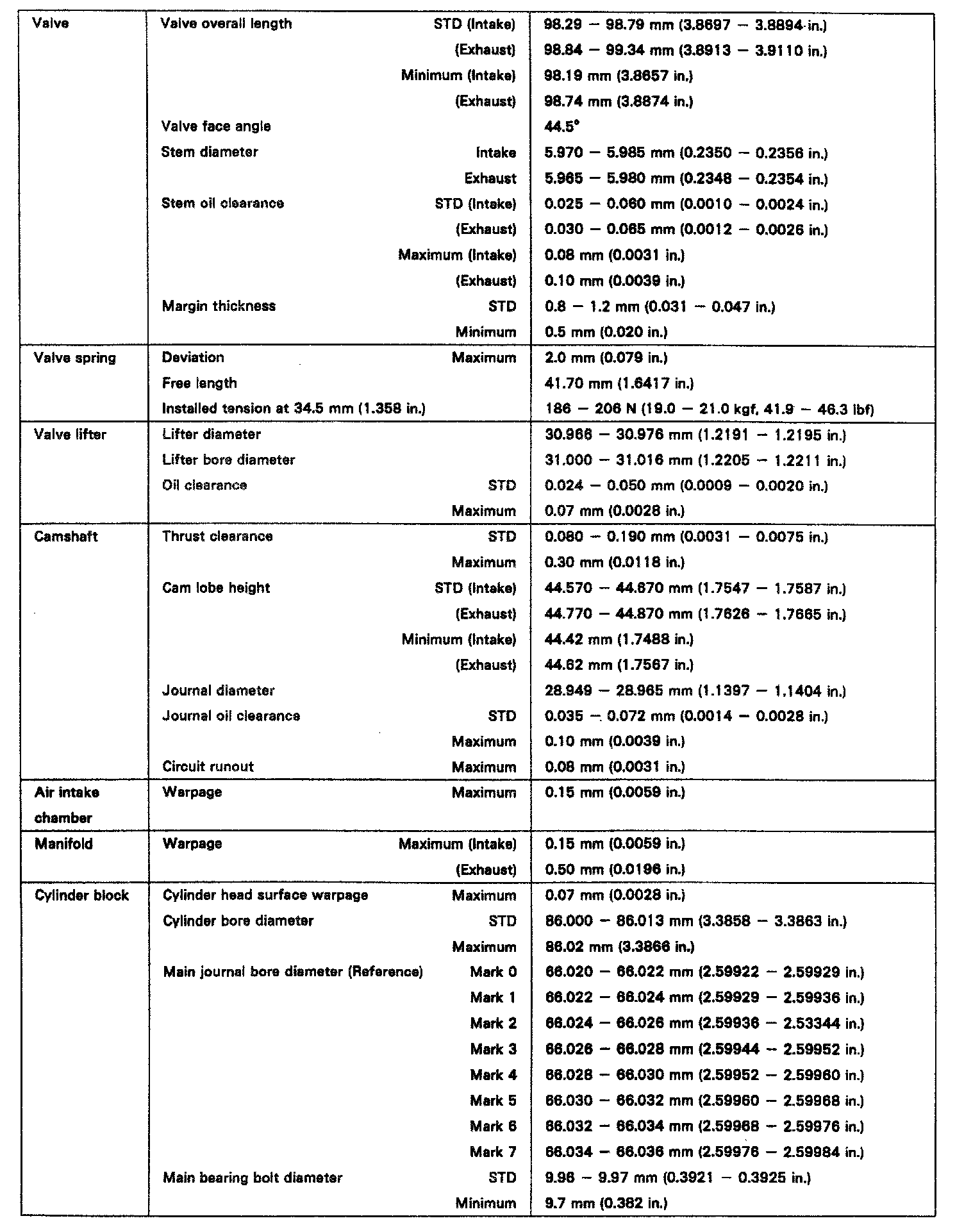

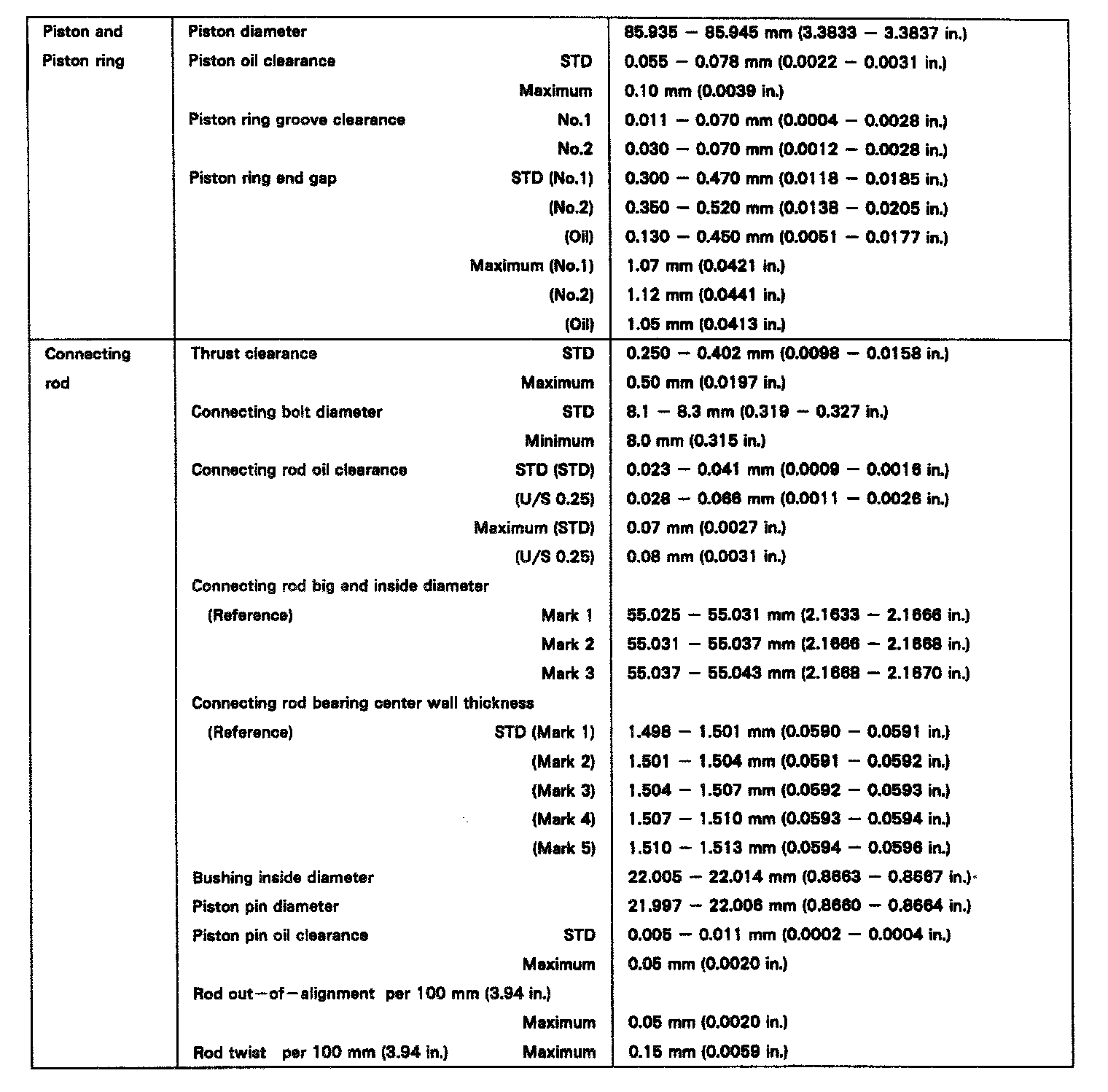

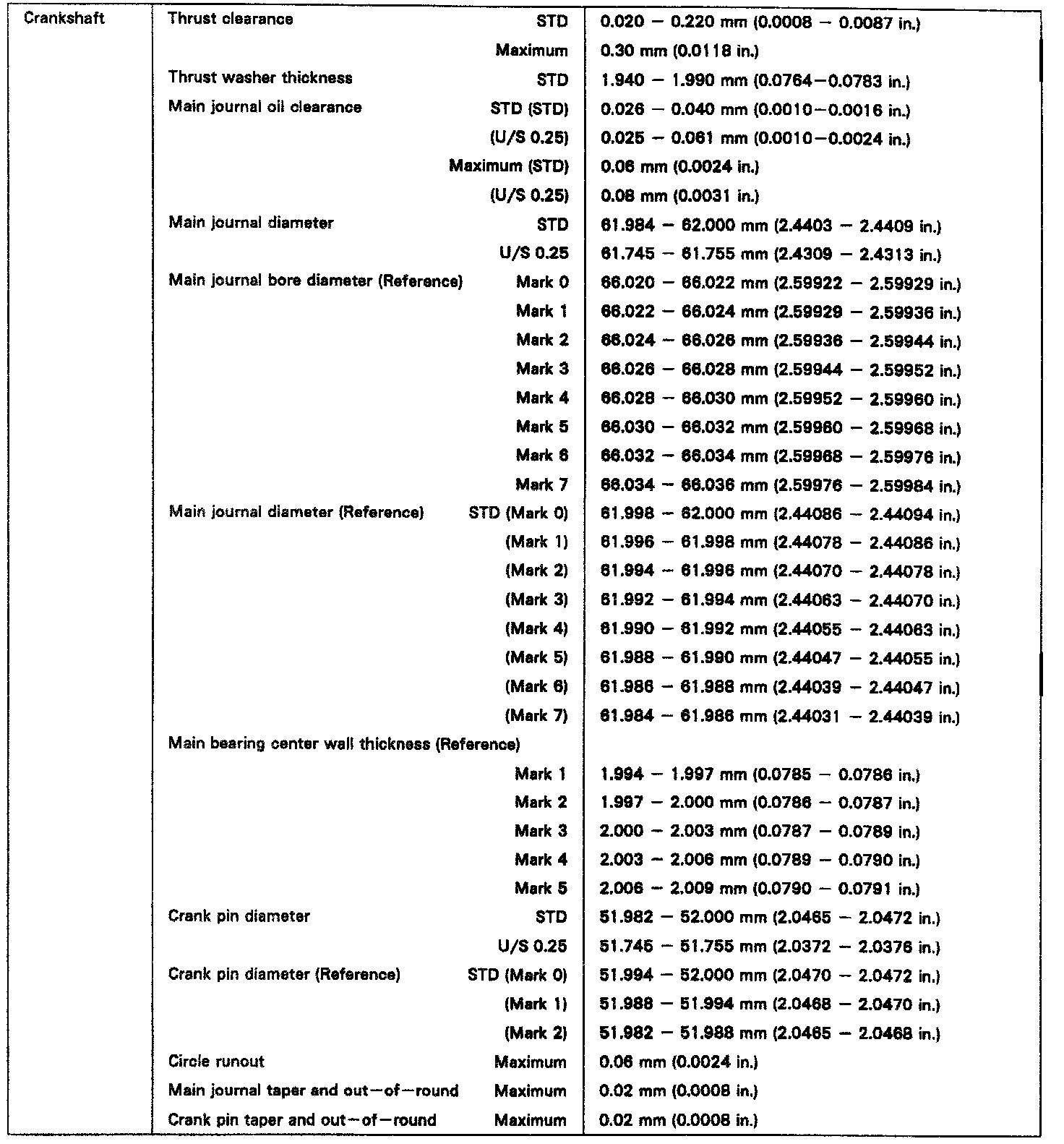

ENGINE SPECIFICATIONS

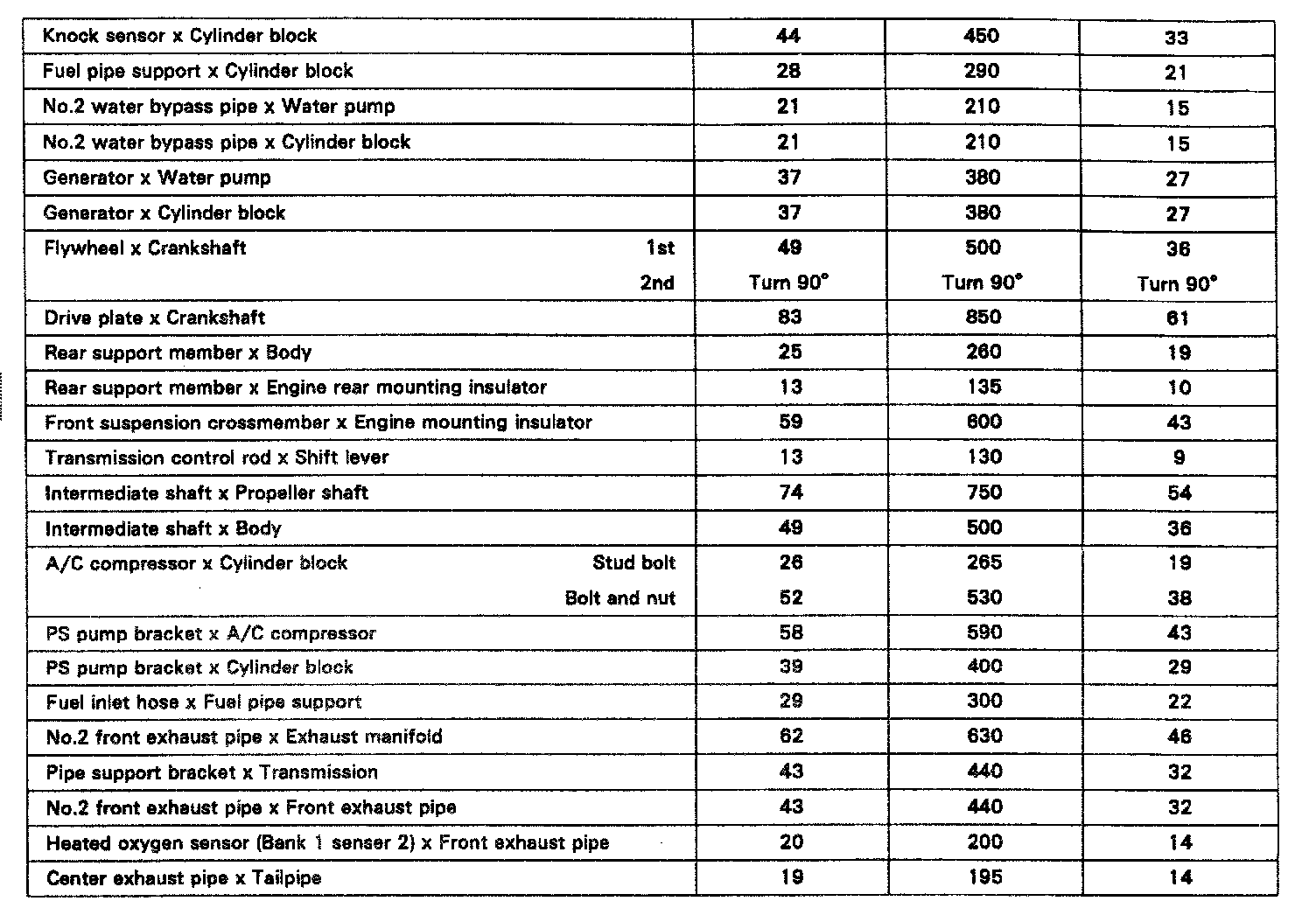

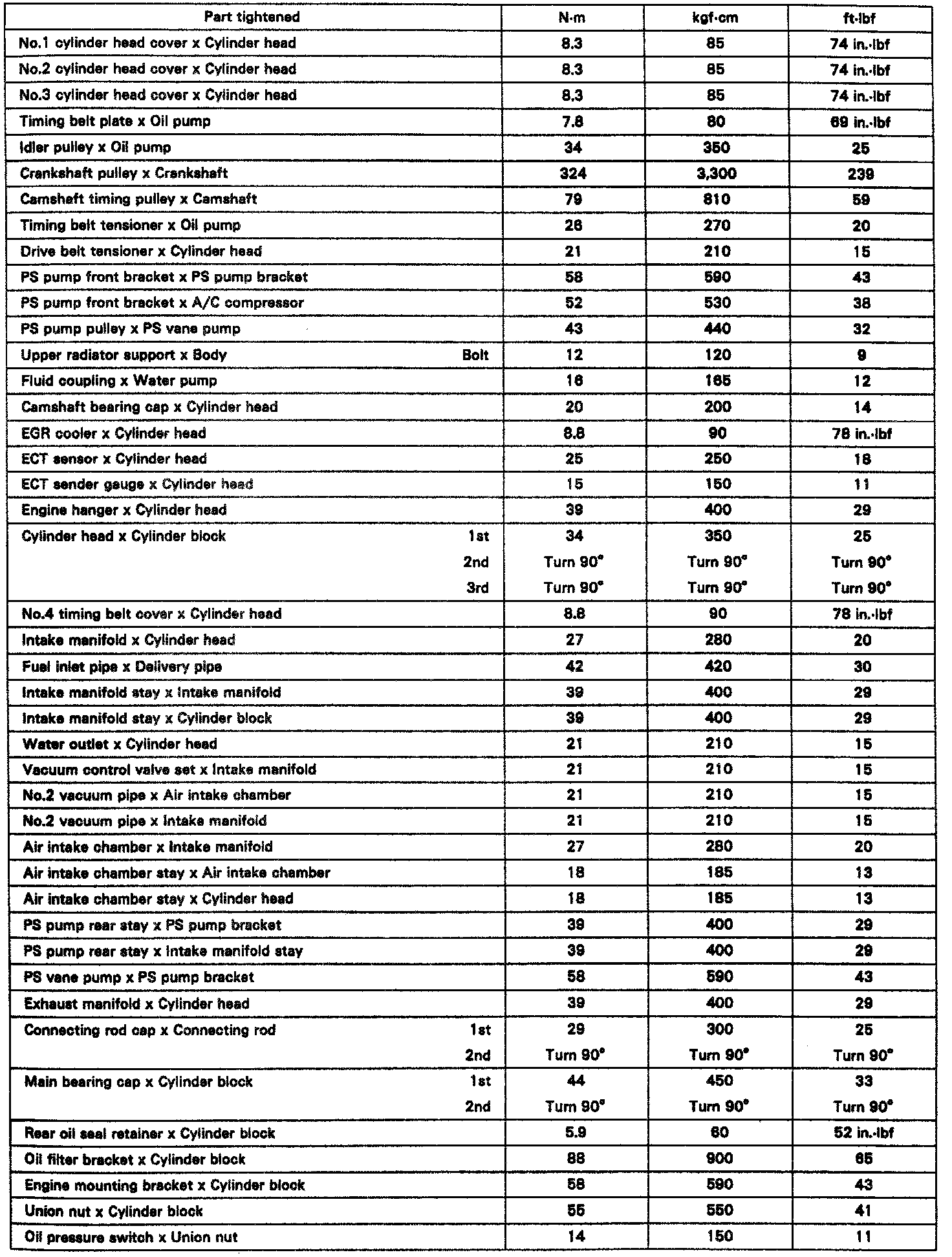

TIGHTENING SPECIFICATIONS

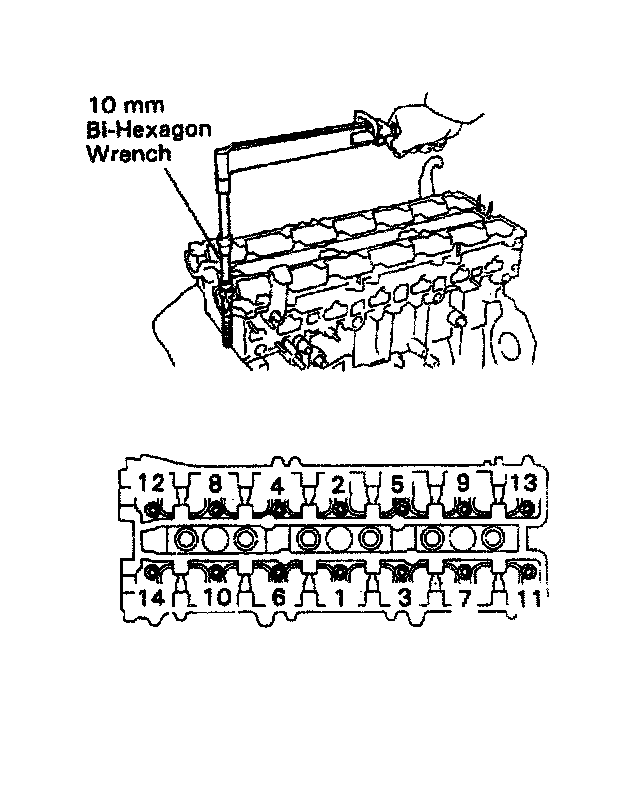

CYLINDER TIGHTENING SEQUENCE





CAM TIGHTENING SEQUENCE

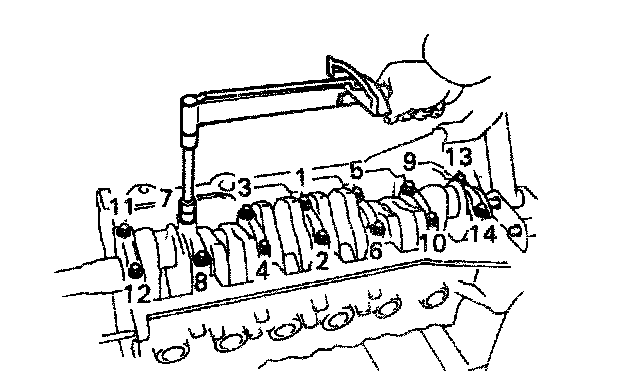

MAIN BEARING TIGHTENING SEQUENCE

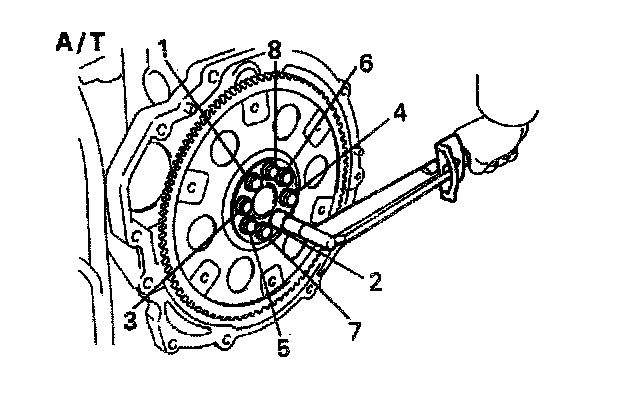

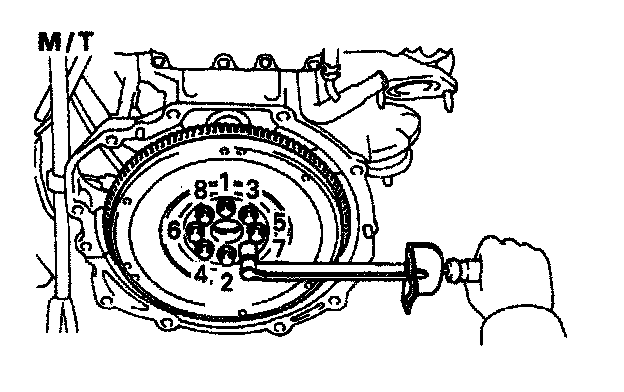

FLYWHEEL TIGHTENING SEQUENCE
