Electronic Brake Control Module
Electronic Brake Control Module

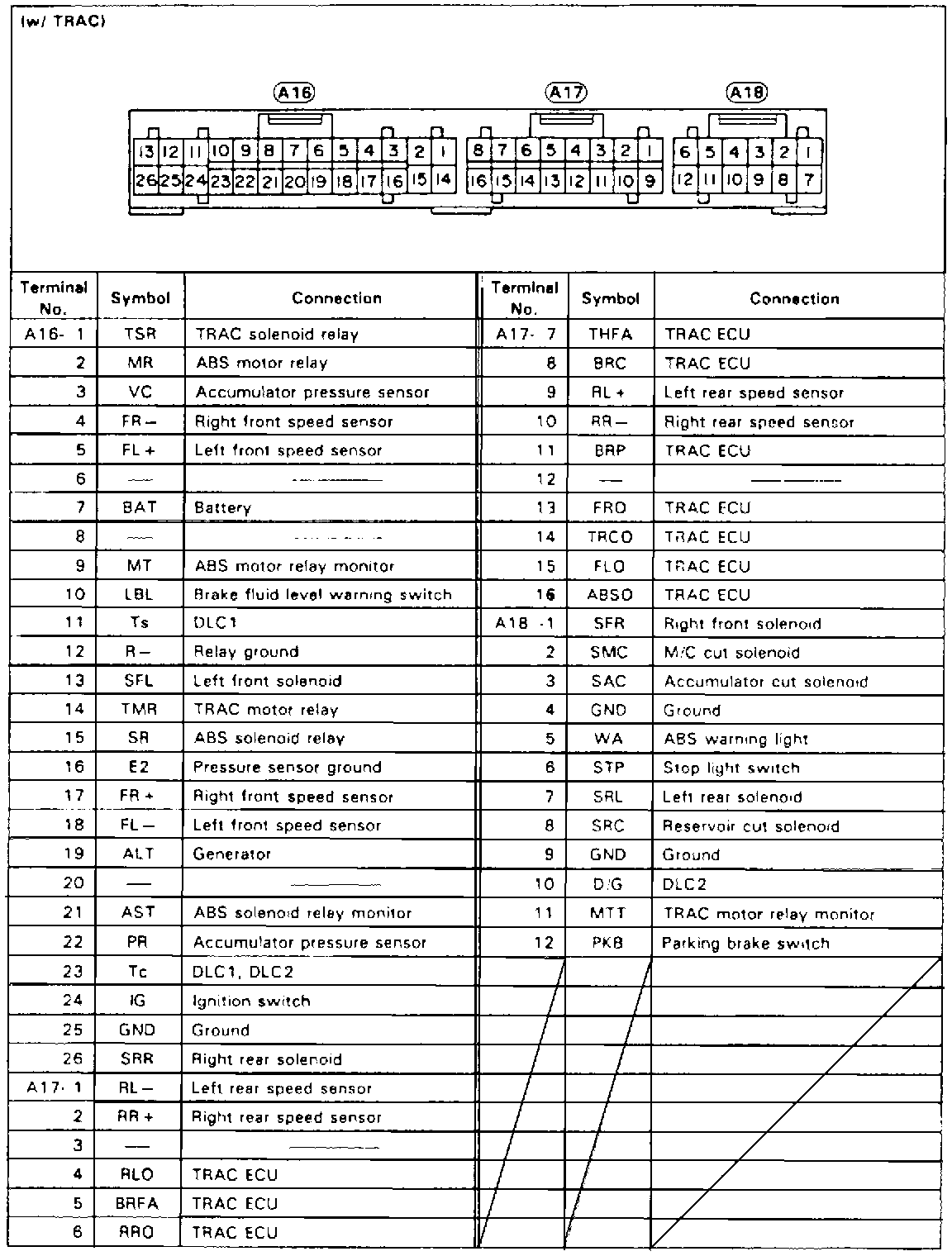

Fig. 24 ABS & TRAC ECU Terminal Identification:
