Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

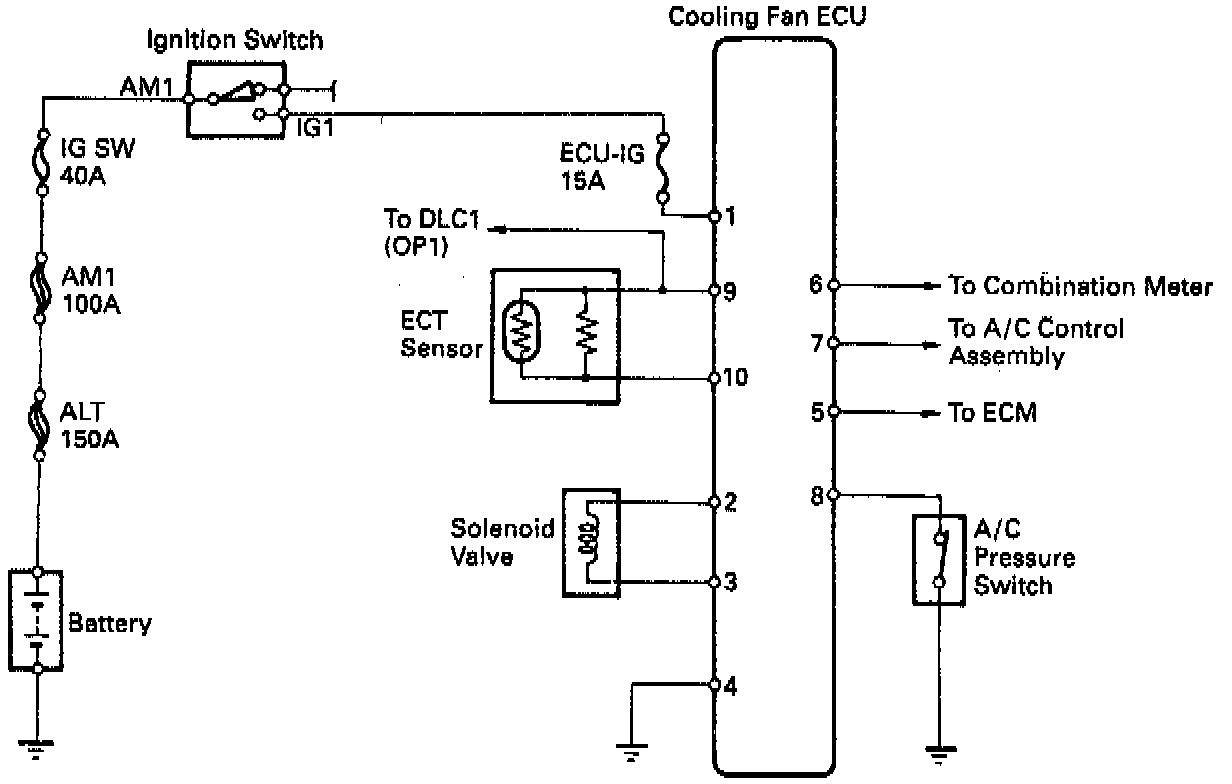

Electronic Cooling Fan System:
