Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lexus
>>
1992
>>
LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Engine Compartment
Engine Compartment

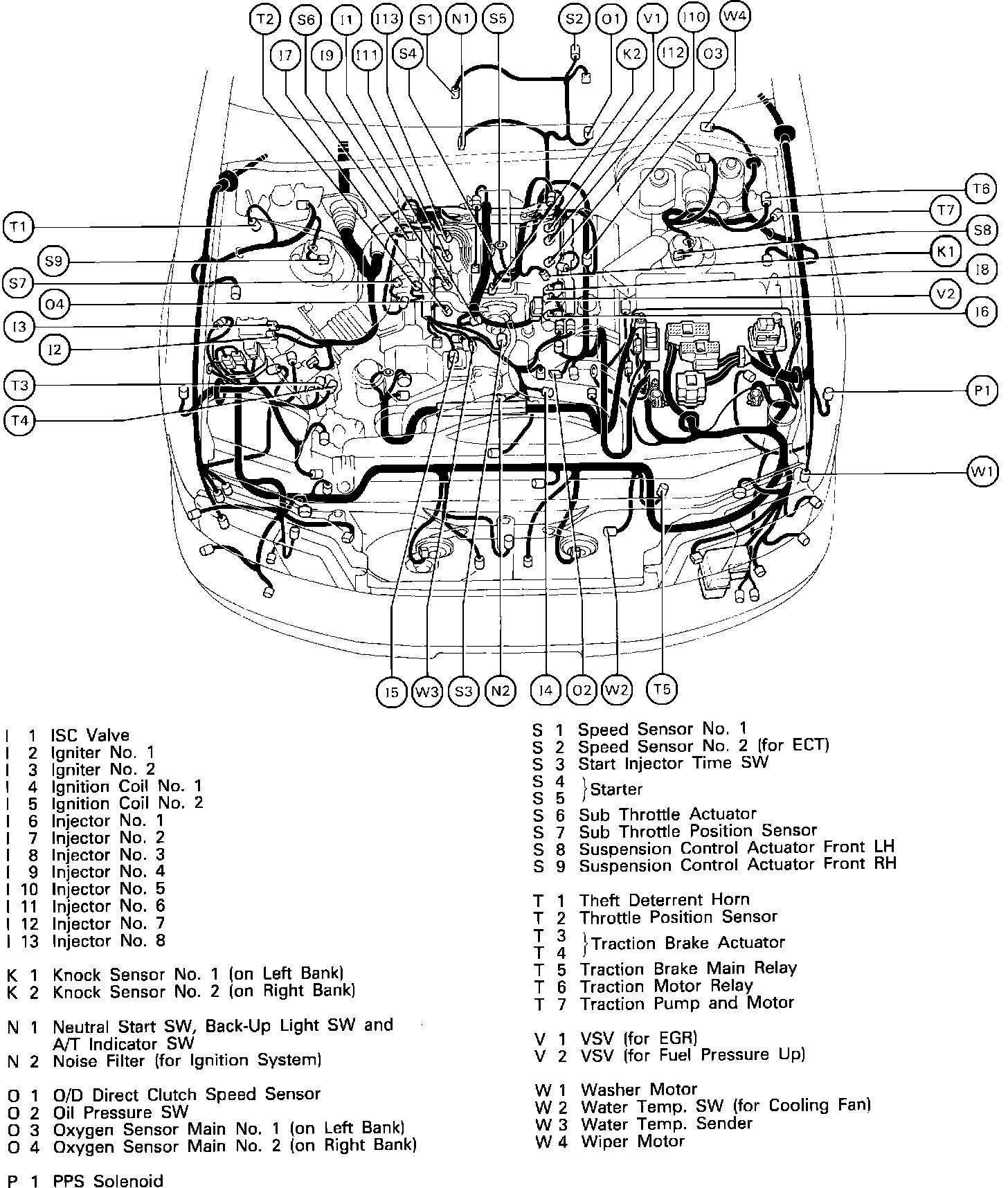

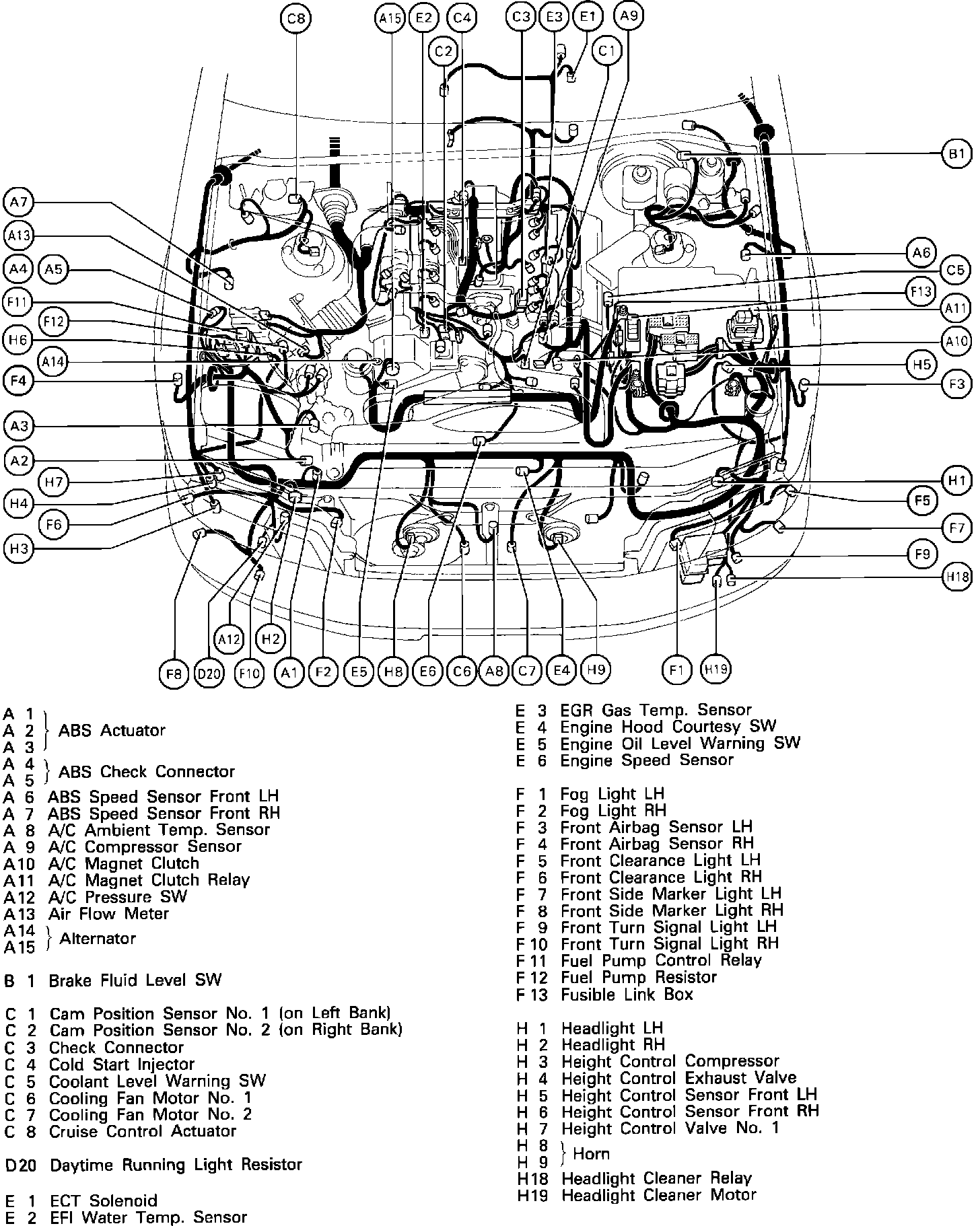

Component Location - Engine Compartment:
Component Location - Engine Compartment:
