Home >> Lexus >> 1990 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> Part 1

Part 1

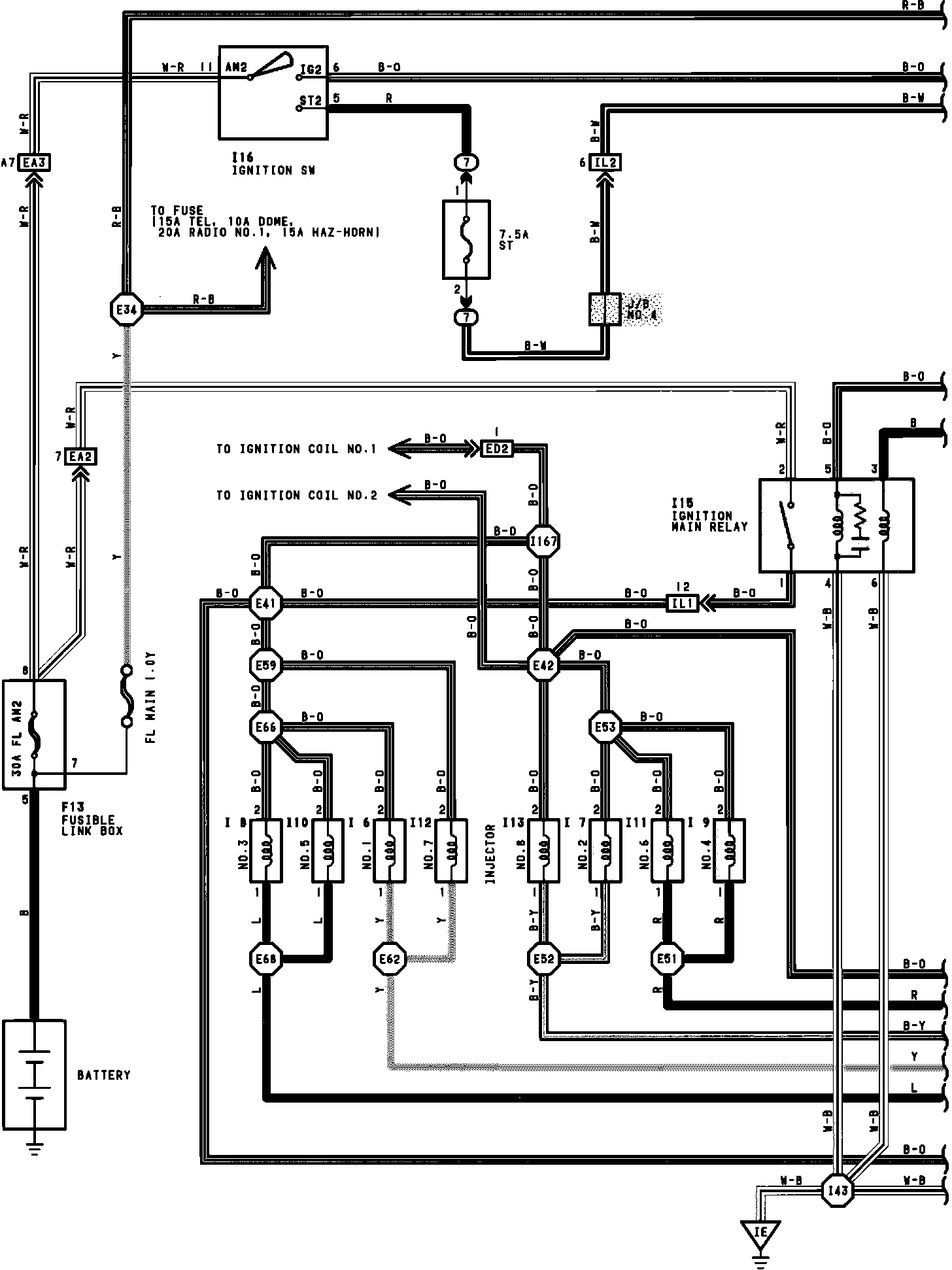

Engine Controls:
