Installation

3UR-FE BATTERY / CHARGING: GENERATOR: INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

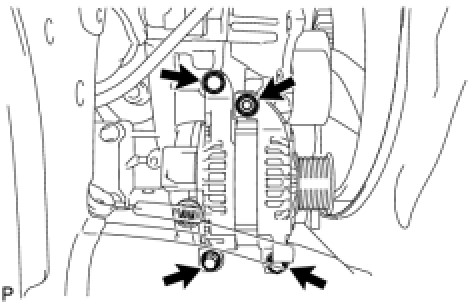

(a) Install the generator with the 3 bolts and nut.
Torque: 43 Nm (438 kgf-cm, 32 ft-lbf)

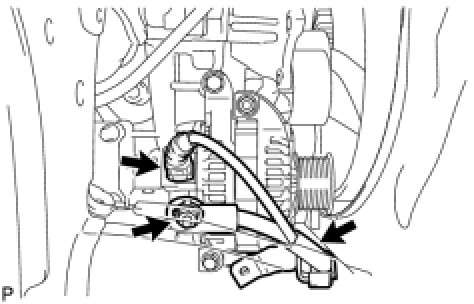

(b) Connect the generator connector.
(c) Connect the generator wire with the nut.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
(d) Install the terminal cap.
(e) Install the harness bracket to the generator with the bolt.
Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)
2. CONNECT OIL COOLER PIPE ASSEMBLY Installation

3. CONNECT VANE PUMP ASSEMBLY [1][2]Installation

4. INSTALL AIR CLEANER ASSEMBLY Installation

5. INSTALL AIR CLEANER HOSE ASSEMBLY Installation

6. INSTALL FRONT FENDER APRON SEAL FRONT RH Installation

7. INSTALL FAN AND GENERATOR V BELT Installation

8. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Installation

9. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation

10. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

13. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

14. INSTALL ENGINE ROOM SIDE COVER LH Installation

15. INSTALL ENGINE ROOM SIDE COVER RH Installation
