Installation

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: CRAWL SWITCH: INSTALLATION

1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (CRAWL SWITCH)

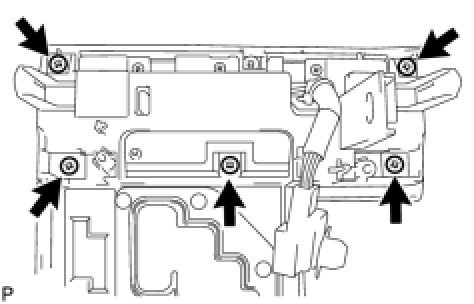

(a) Install the integration control and panel to the position indicator housing with the 5 screws.
(b) Connect the connector.
2. INSTALL LOWER POSITION INDICATOR HOUSING Reassembly

3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

4. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Installation

5. INSTALL PARKING BRAKE HOLE COVER Installation

6. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

8. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH Installation

9. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Installation

10. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Installation

11. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
