Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Interrupt Connector/Switch
>>

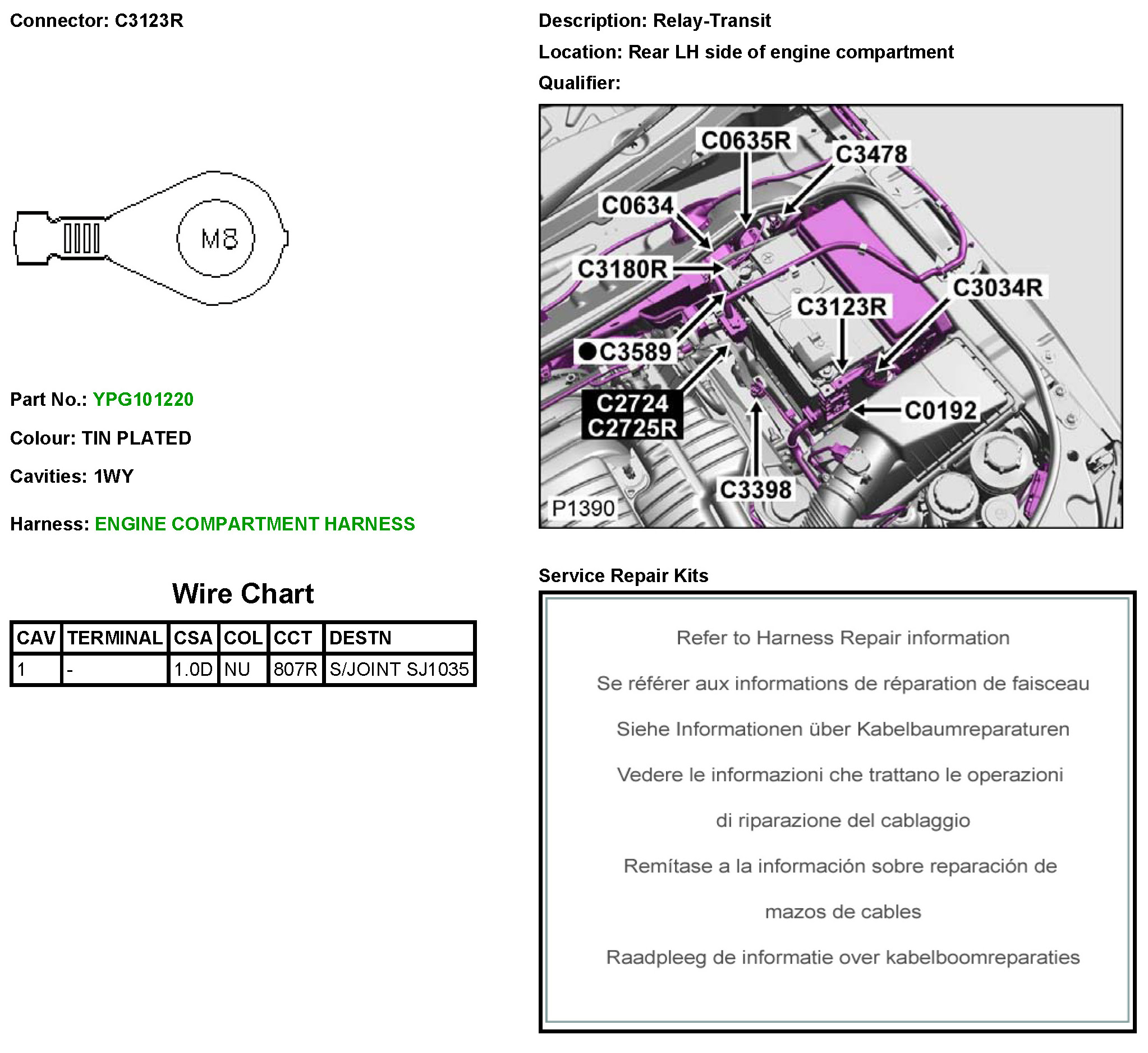

C3123R Relay-Transit
C3123R Relay-Transit
C3123R
