Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>

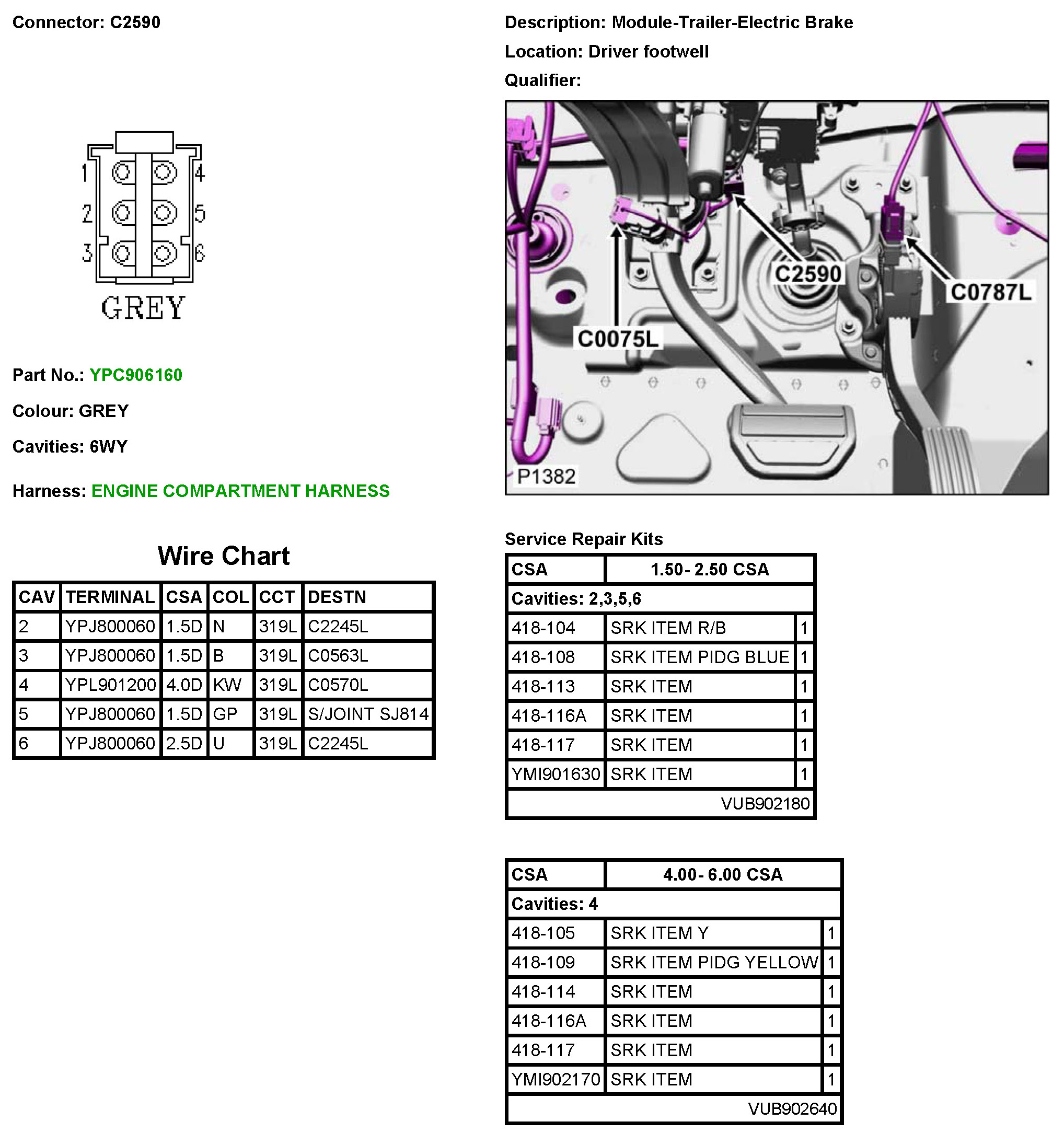

C2590 Module-Trailer-Electric Brake
C2590 Module-Trailer-Electric Brake
C2590
