Home
>>
Land Rover
>>
2012
>>
Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Battery Control Module
>>

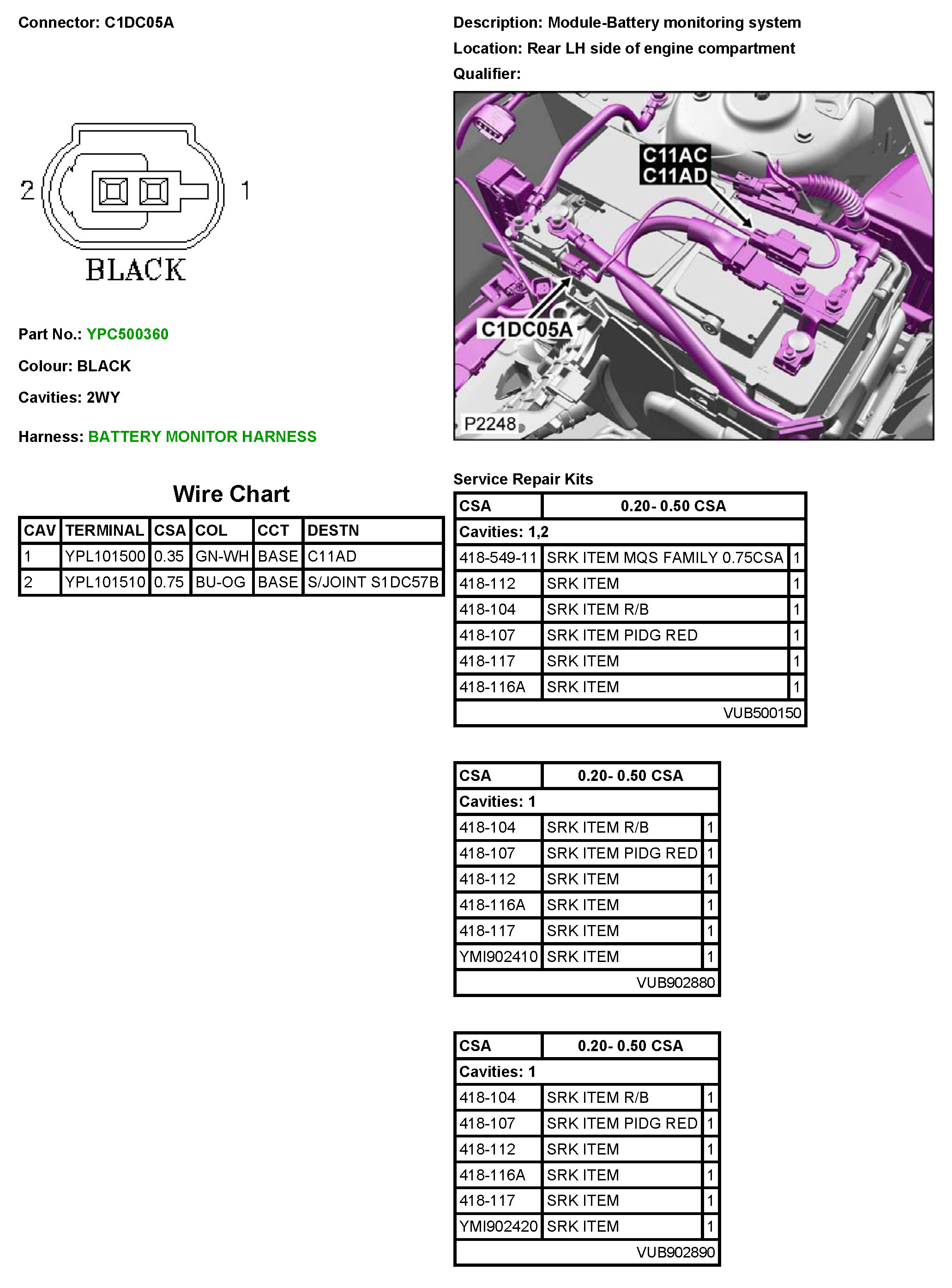

C1DC05A Module-Battery Monitoring System
C1DC05A Module-Battery Monitoring System
C1DC05A
