Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Camshaft Position Sensor
>>
Diagrams
>>

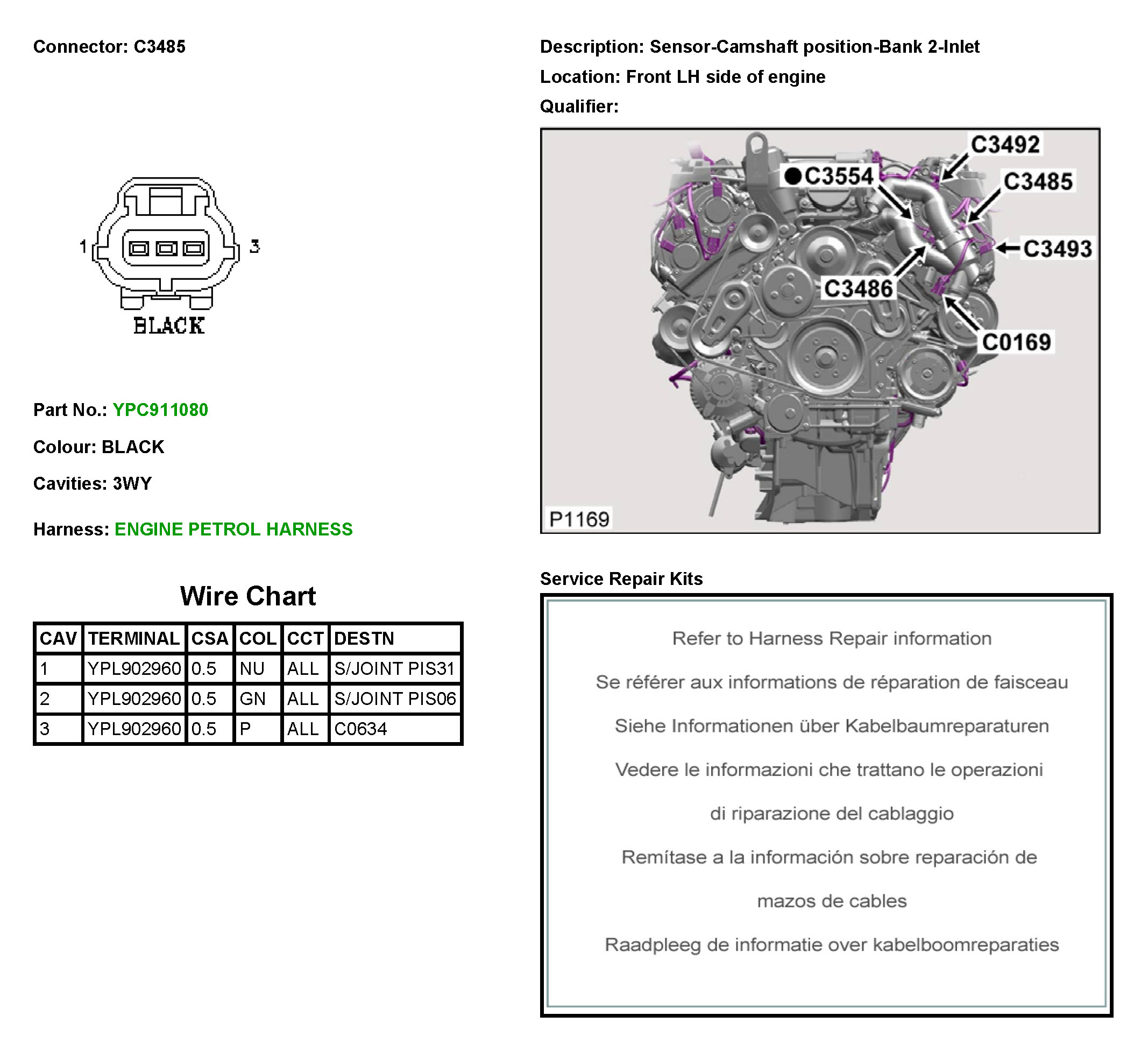

C3485 Sensor-Camshaft Position-Bank 2-Inlet
C3485 Sensor-Camshaft Position-Bank 2-Inlet
C3485
