Home
>>
Land Rover
>>
2009
>>
Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

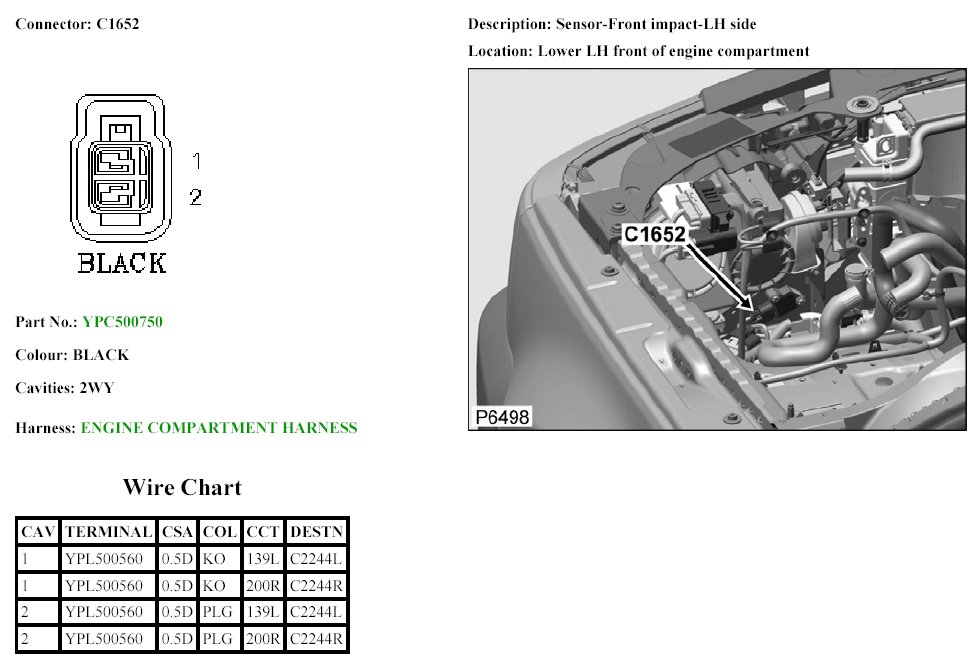

Sensor-Front Impact-LH Side
Sensor-Front Impact-LH Side
Sensor-Front Impact-LH side
C1652:
