Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
>>
Sensor-Pressure-Mat
Sensor-Pressure-Mat

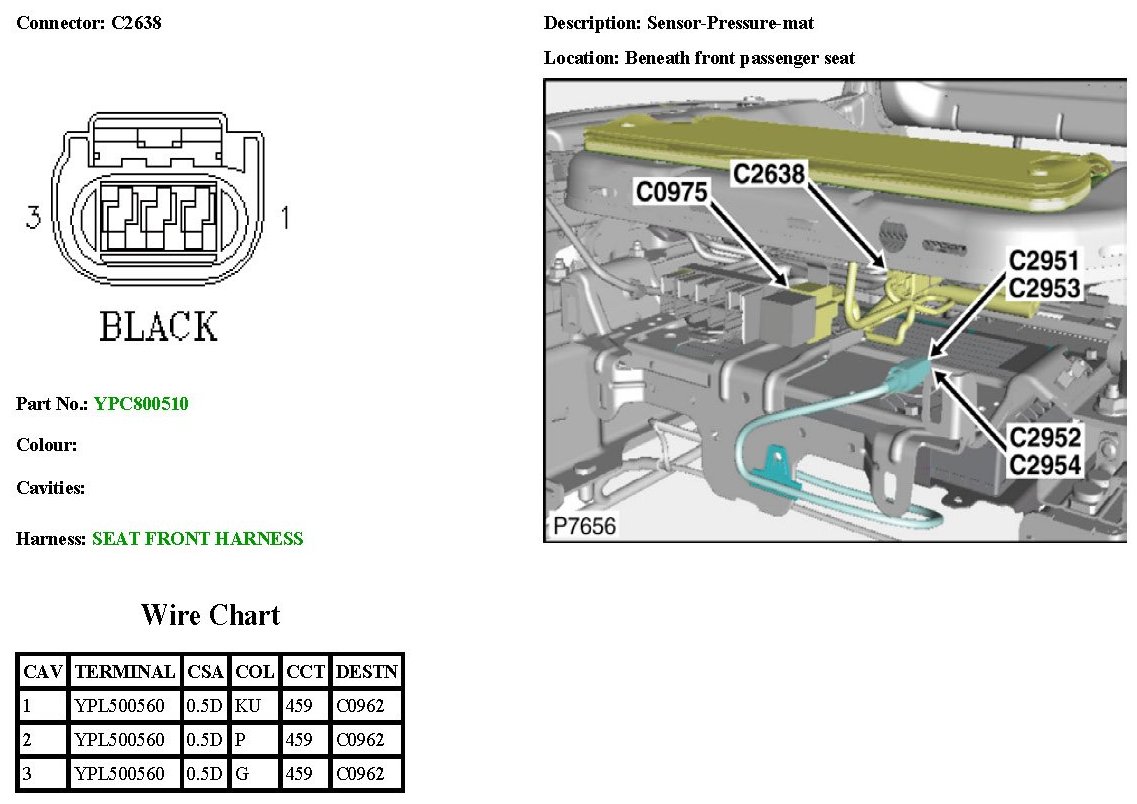

C2638:

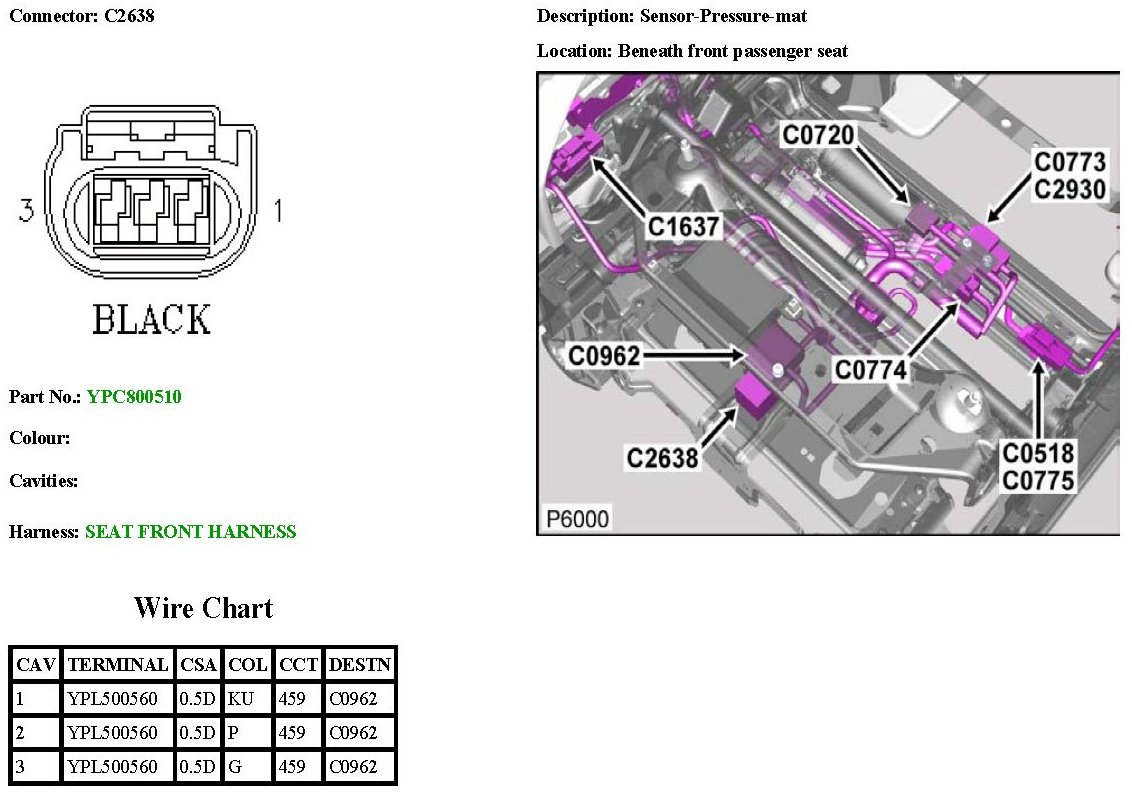

C2638:

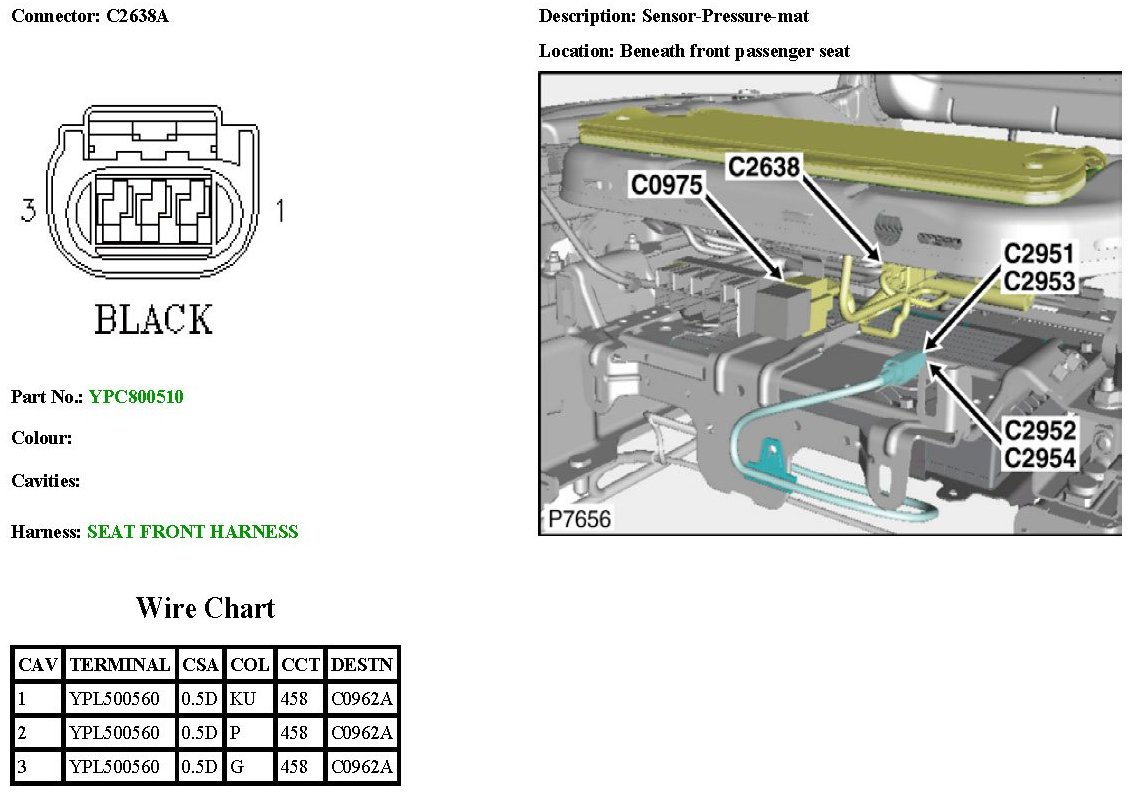

C2638A:
