Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
>>
Sensor-Occupancy-Detector
Sensor-Occupancy-Detector

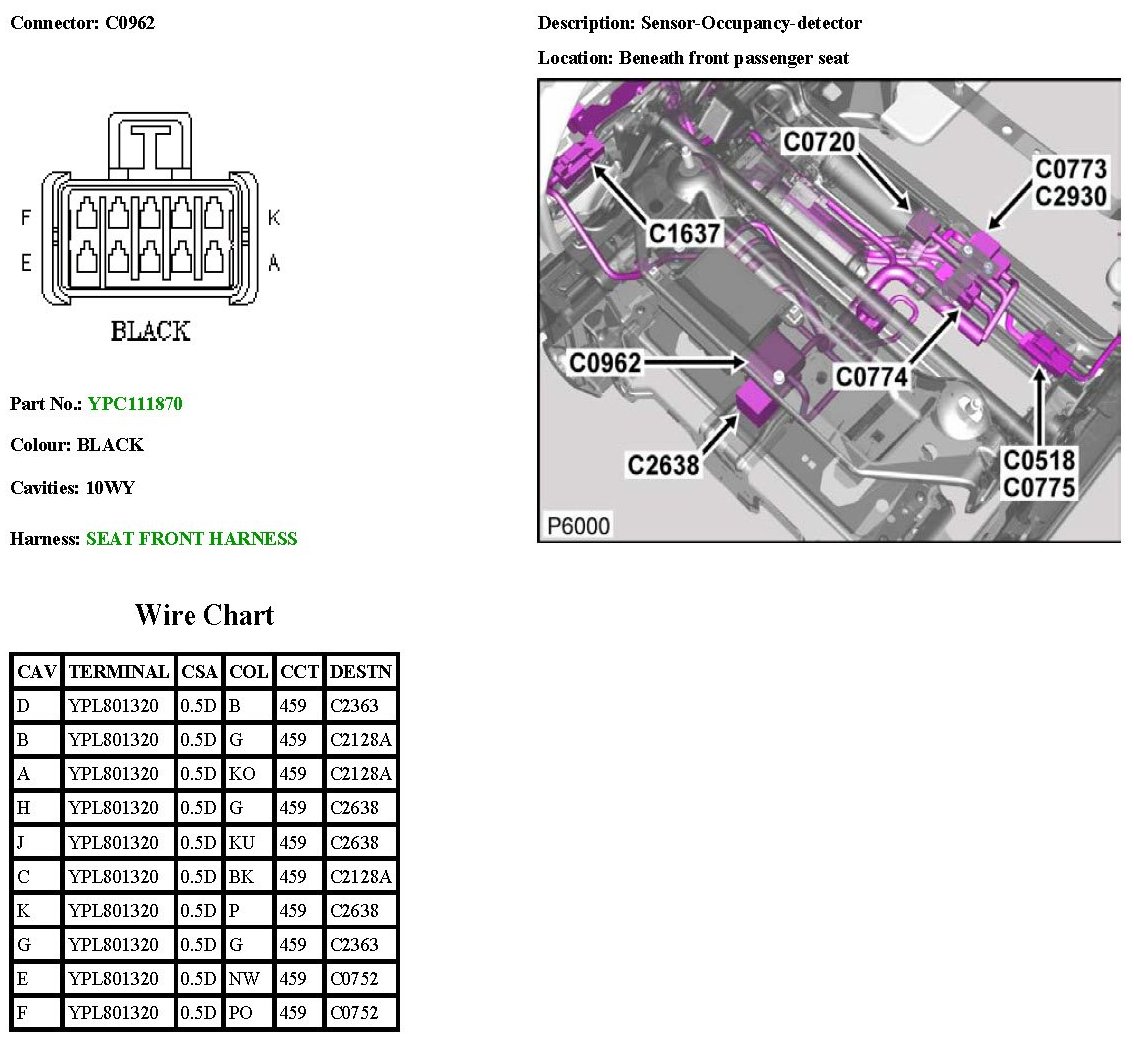

C0962:

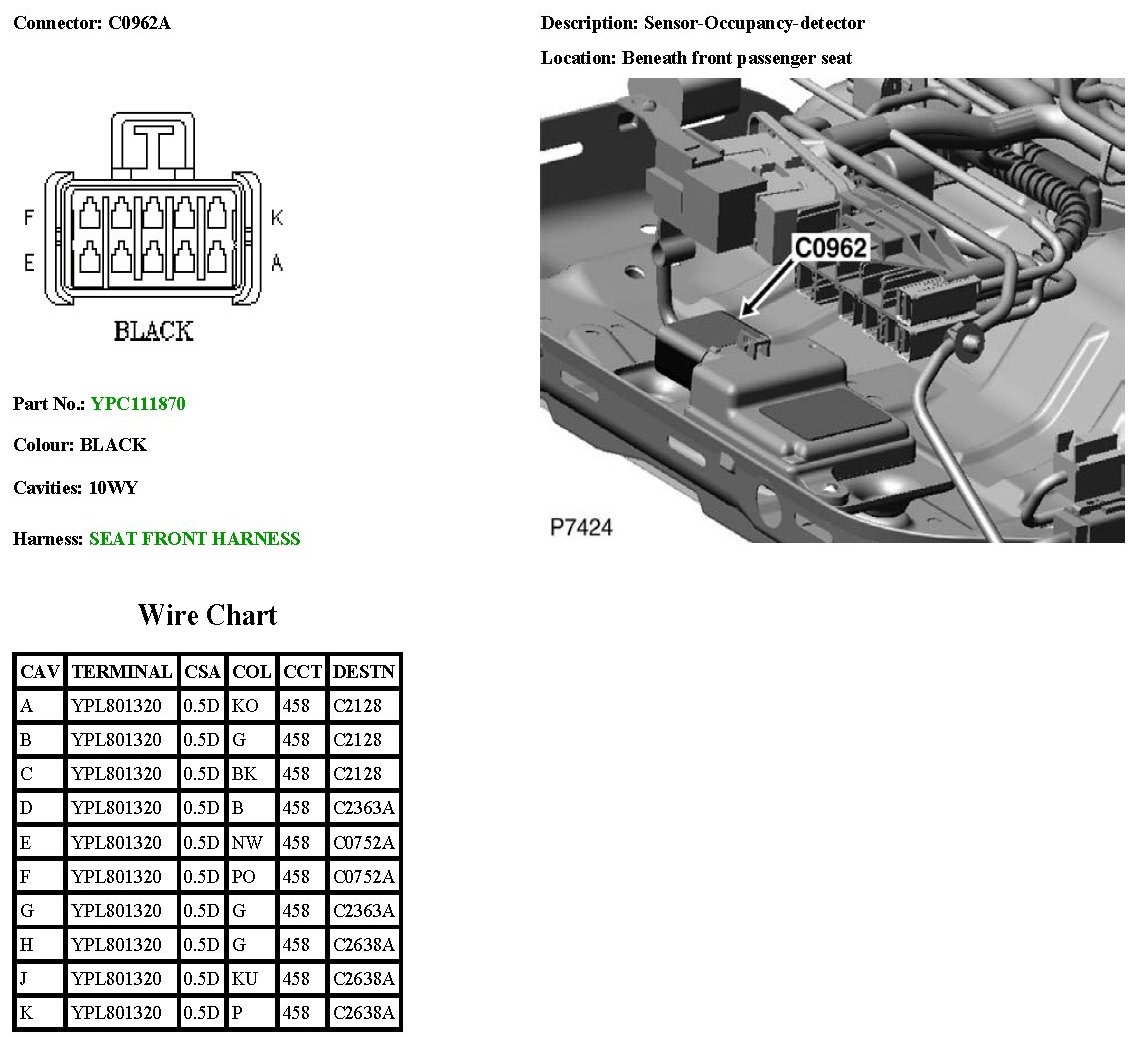

C0962A:
