Electronic Throttle Actuator: Specifications





Specification

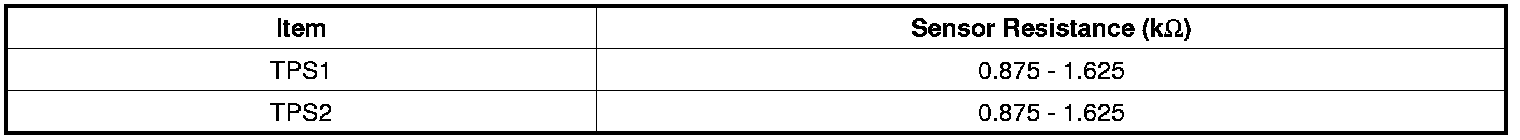

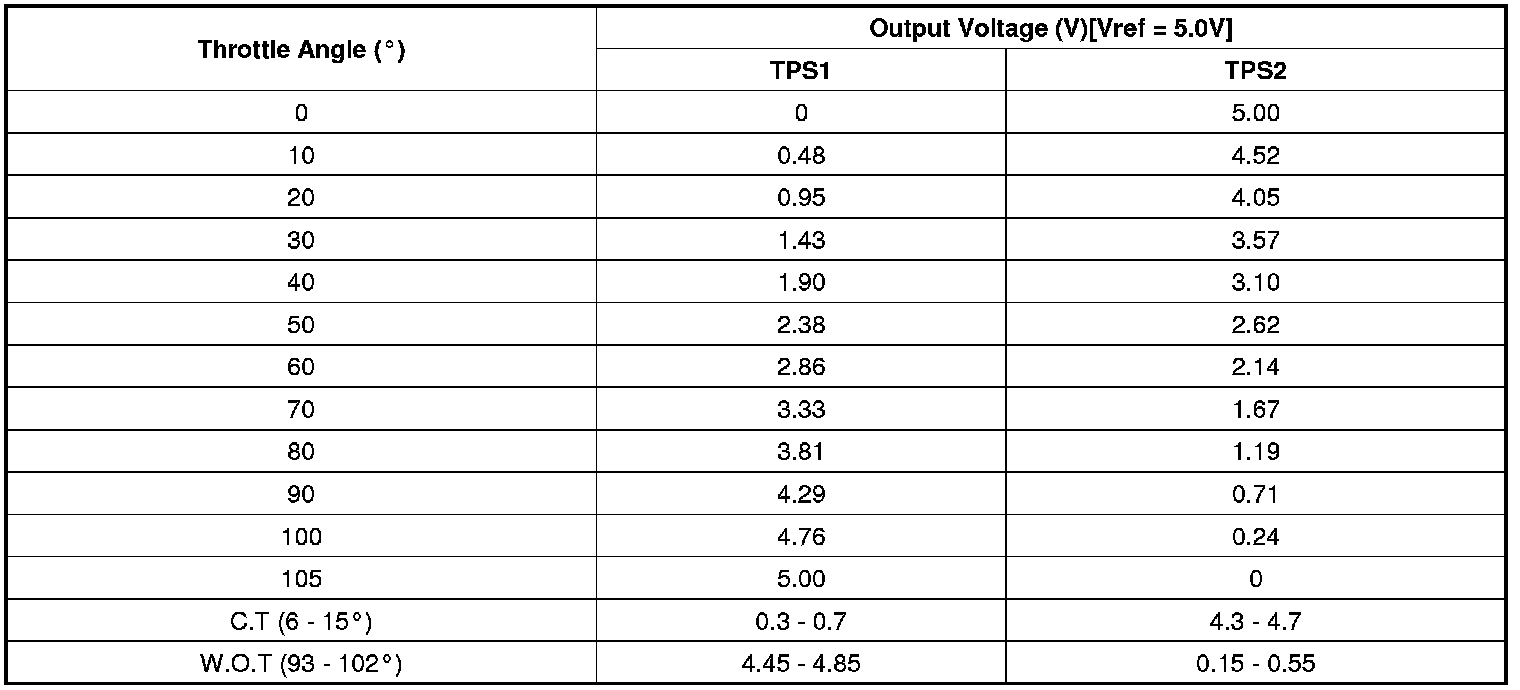

[Throttle position sensor]














[ETC motor]
