Home >> Kia Truck >> 2007 >> Sedona V6-3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Control Panel

Control Panel

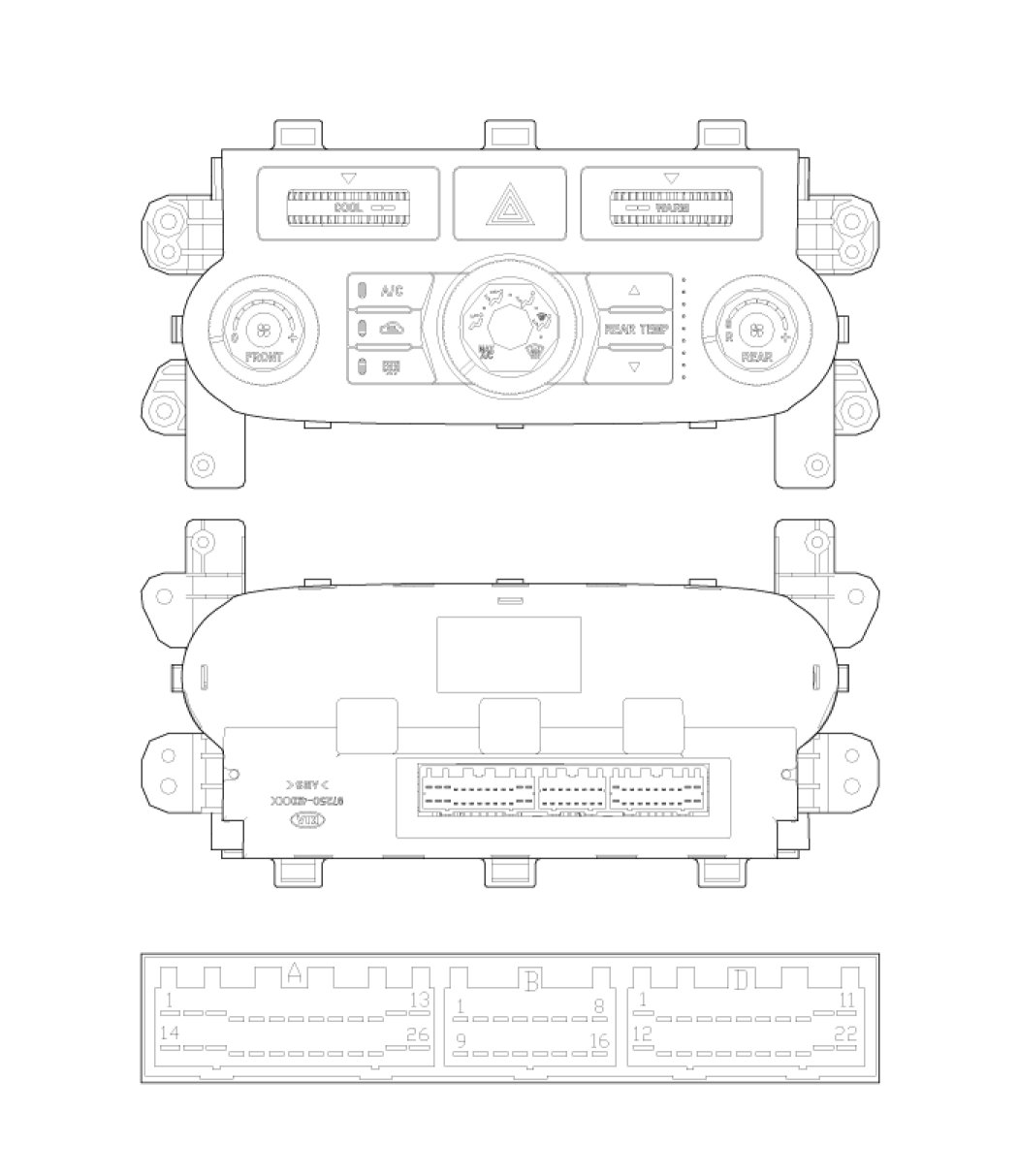

COMPONENT

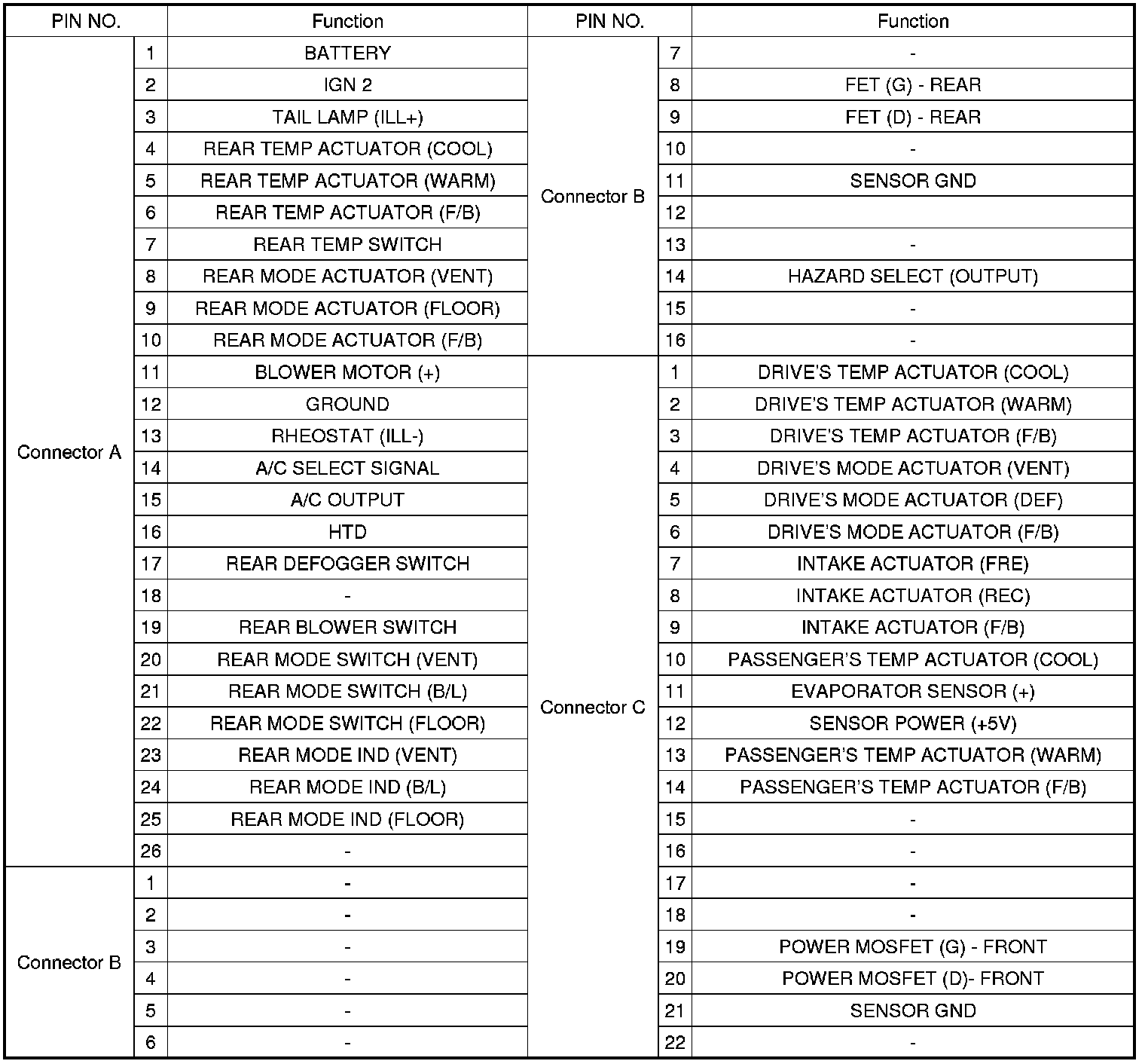

CONNECTOR PIN FUNCTION
