Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Kia Truck
>>
2003
>>
Sedona V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Automatic Transaxle
Automatic Transaxle

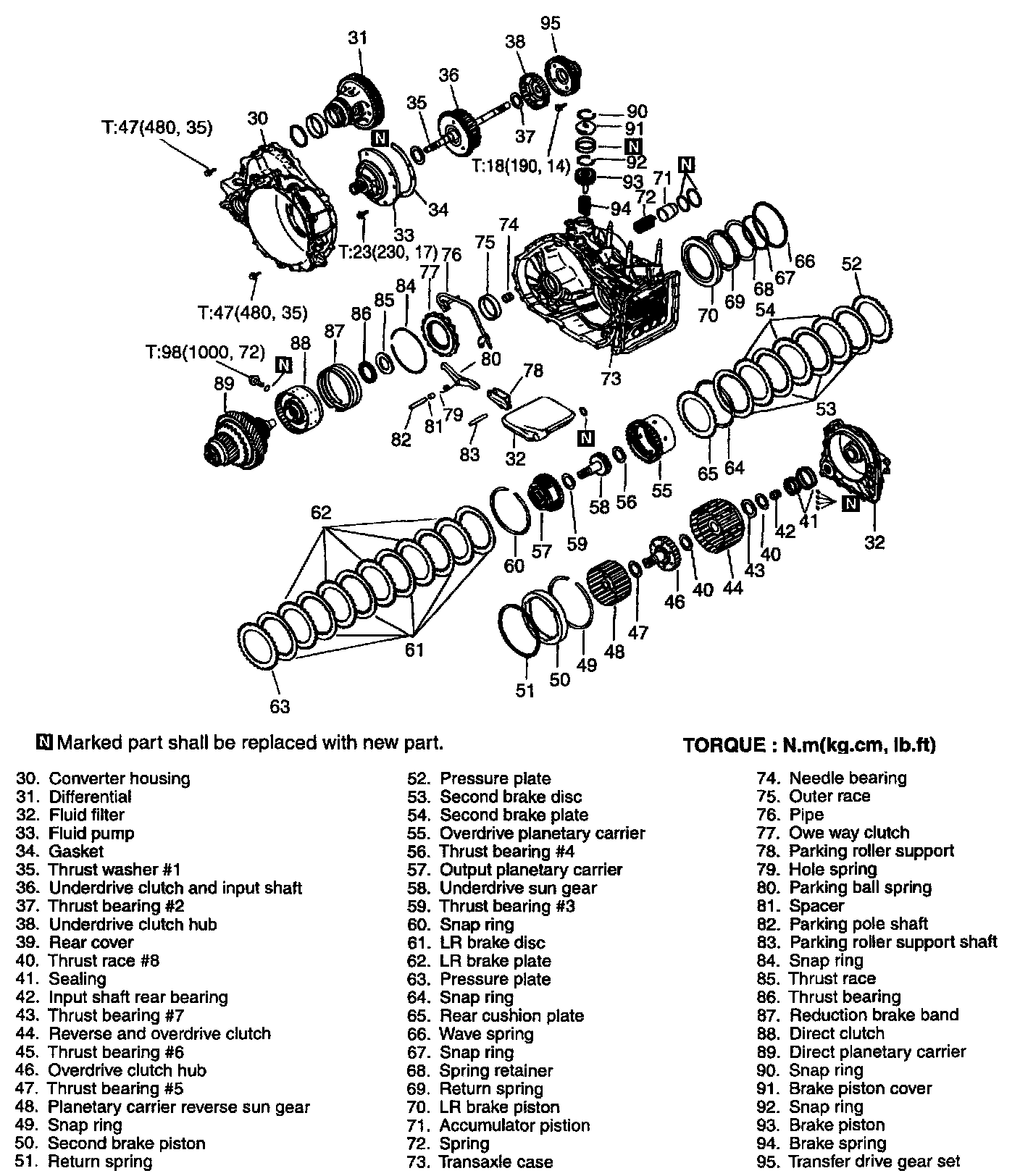

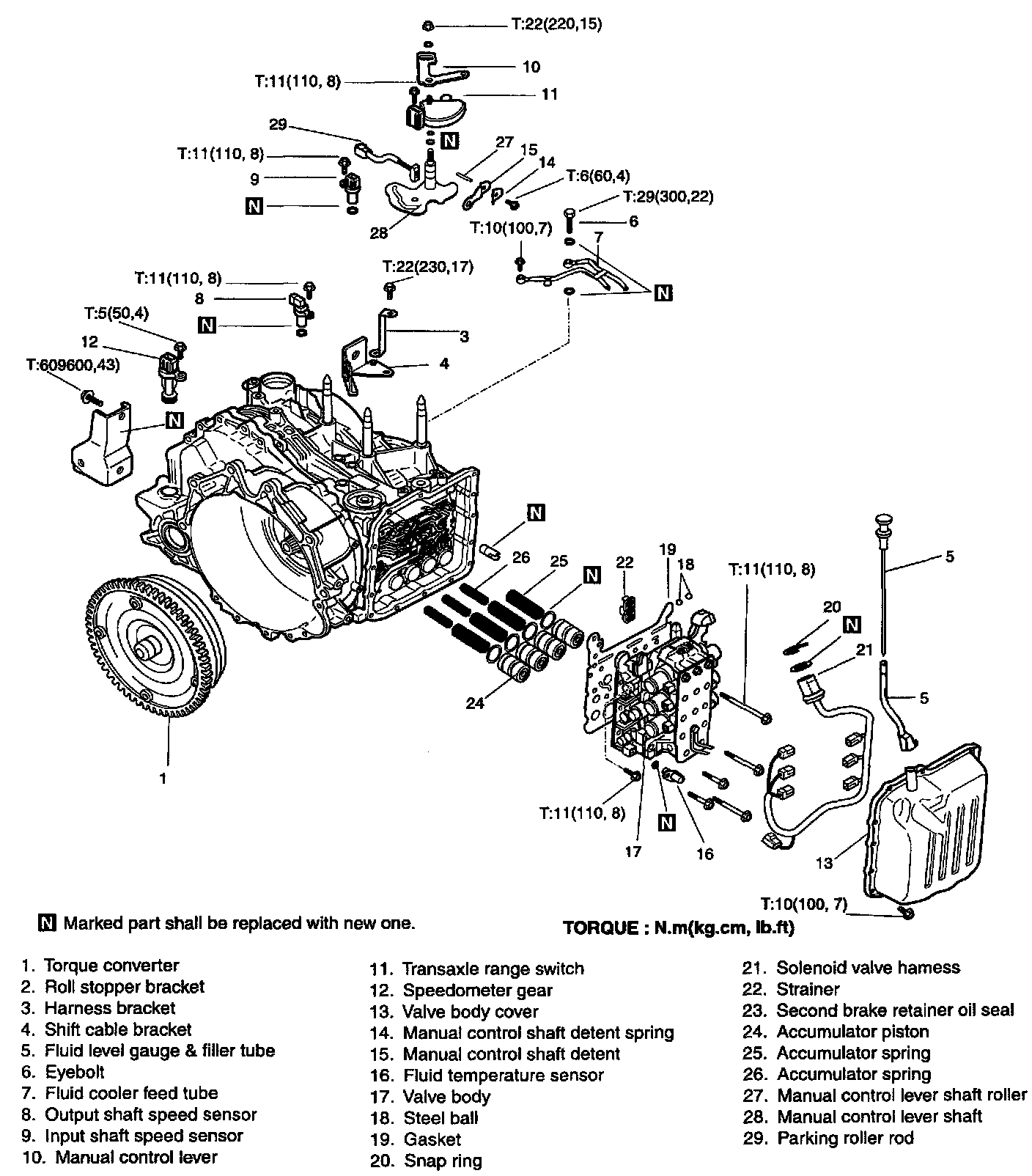

AUTOMATIC TRANSAXLE
COMPONENTS
