Kia Truck
>>
2002
>>
Sedona LX V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
Harness Locations
>>

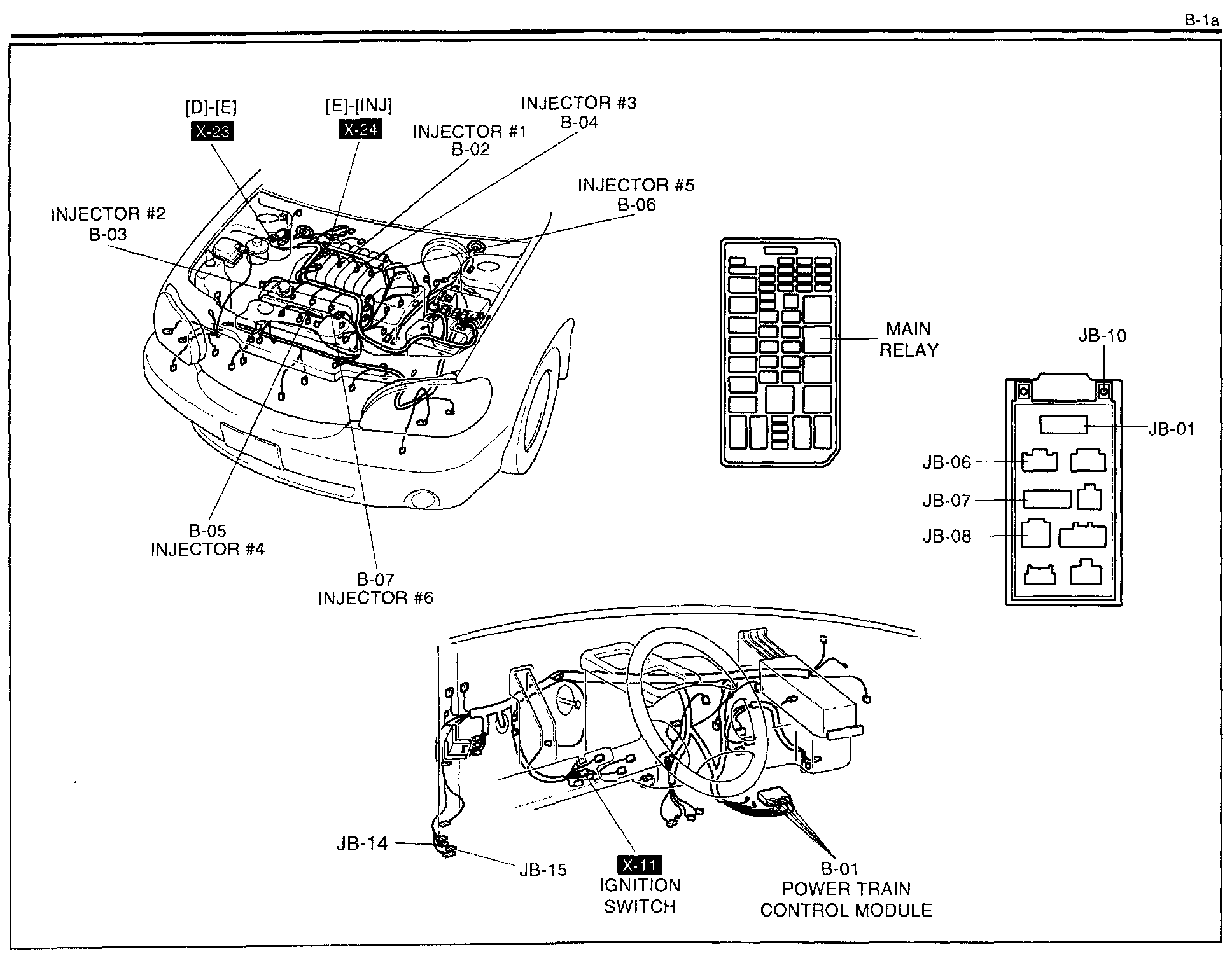

B-1a - Powertrain Control System (PCM)
B-1a - Powertrain Control System (PCM)
B-1a - Power Train Control System (PCM) Harness/Connector Symbols:
