B-1J - Powertrain Control System (PCM)
B-1J - Powertrain Control System (PCM)

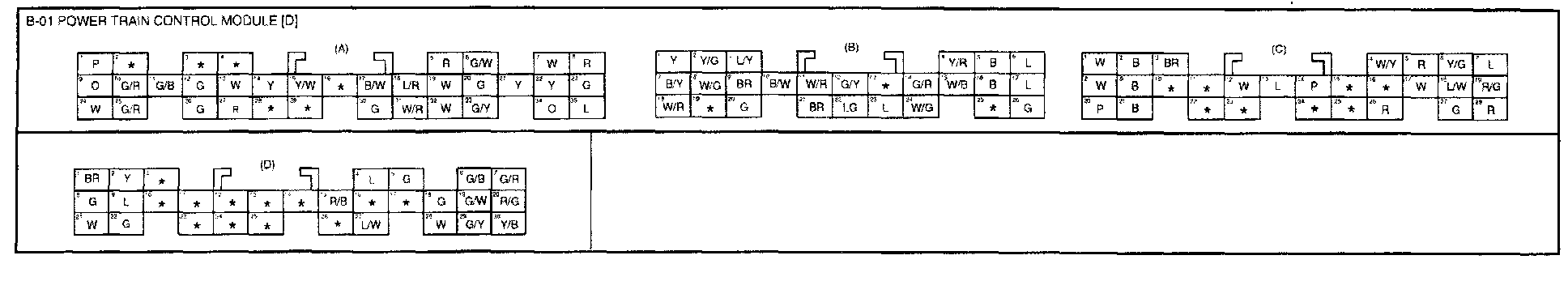

B-1j - Power Train Control System (PCM) Connectors:
