Connector Locations

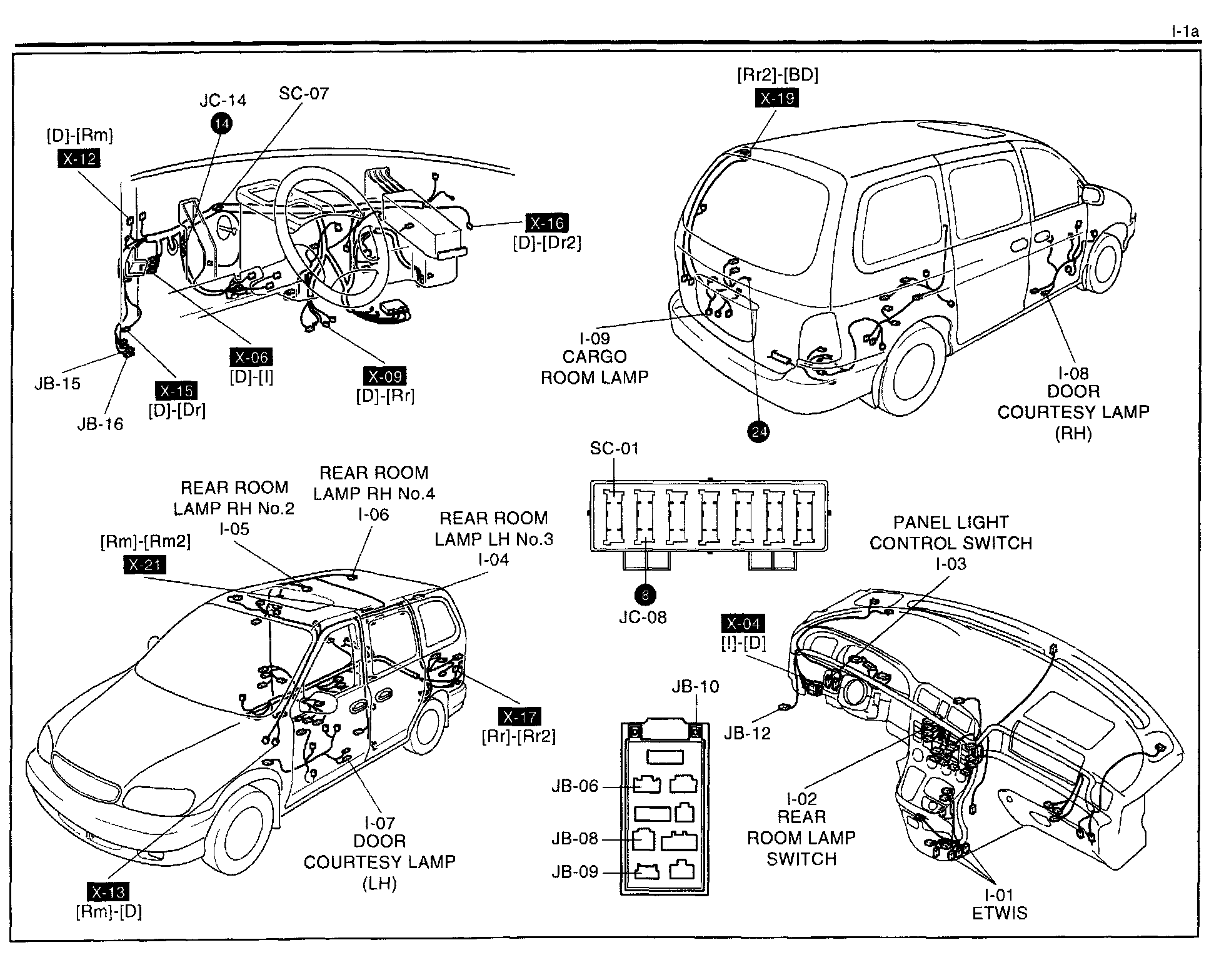

I-1a - ETWIS, Rear Room Lamp, Cargo Room Lamp Harness/Connector Symbols:

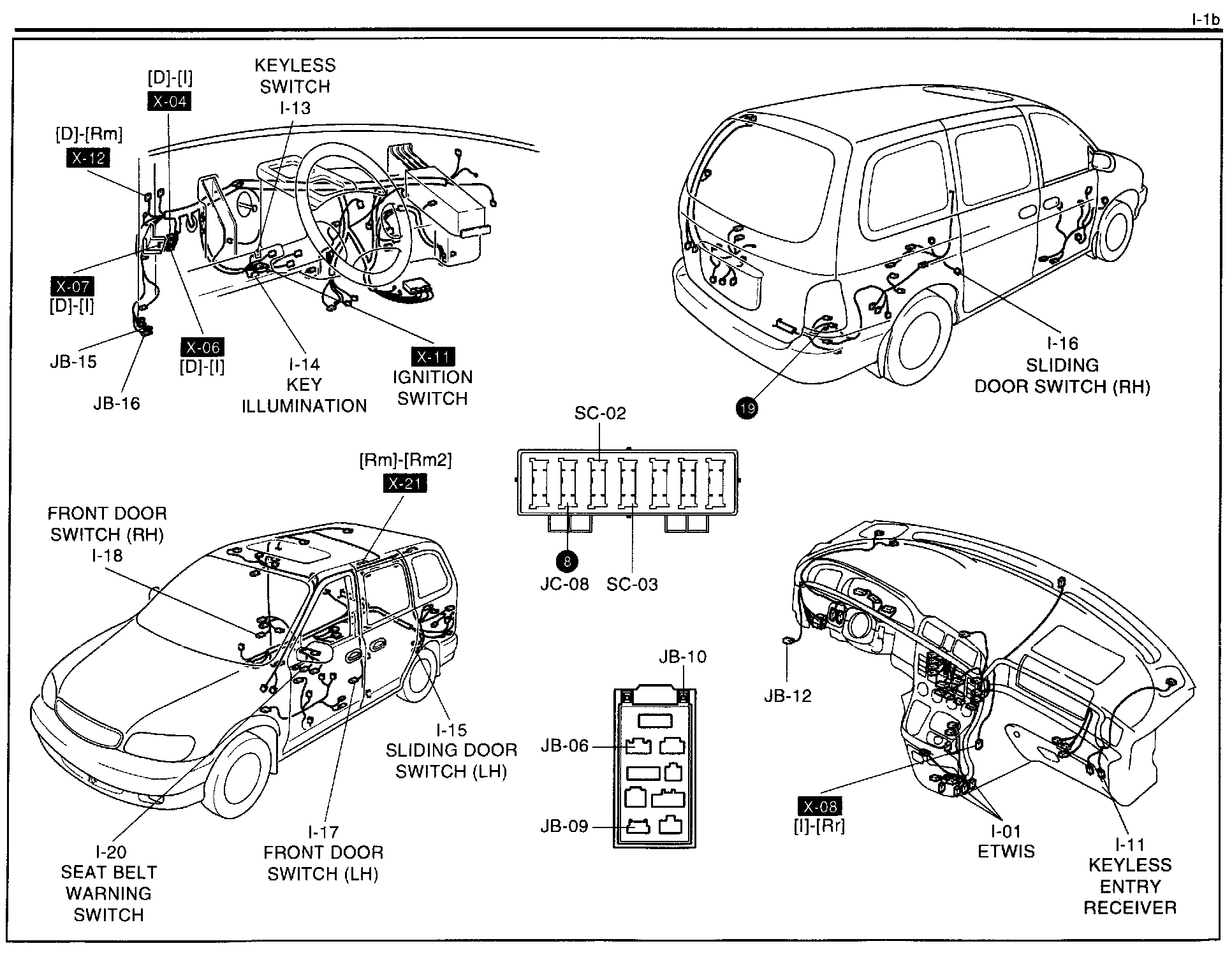

I-1b - ETWIS, Keyless Entry System Harness/Connector Symbols:

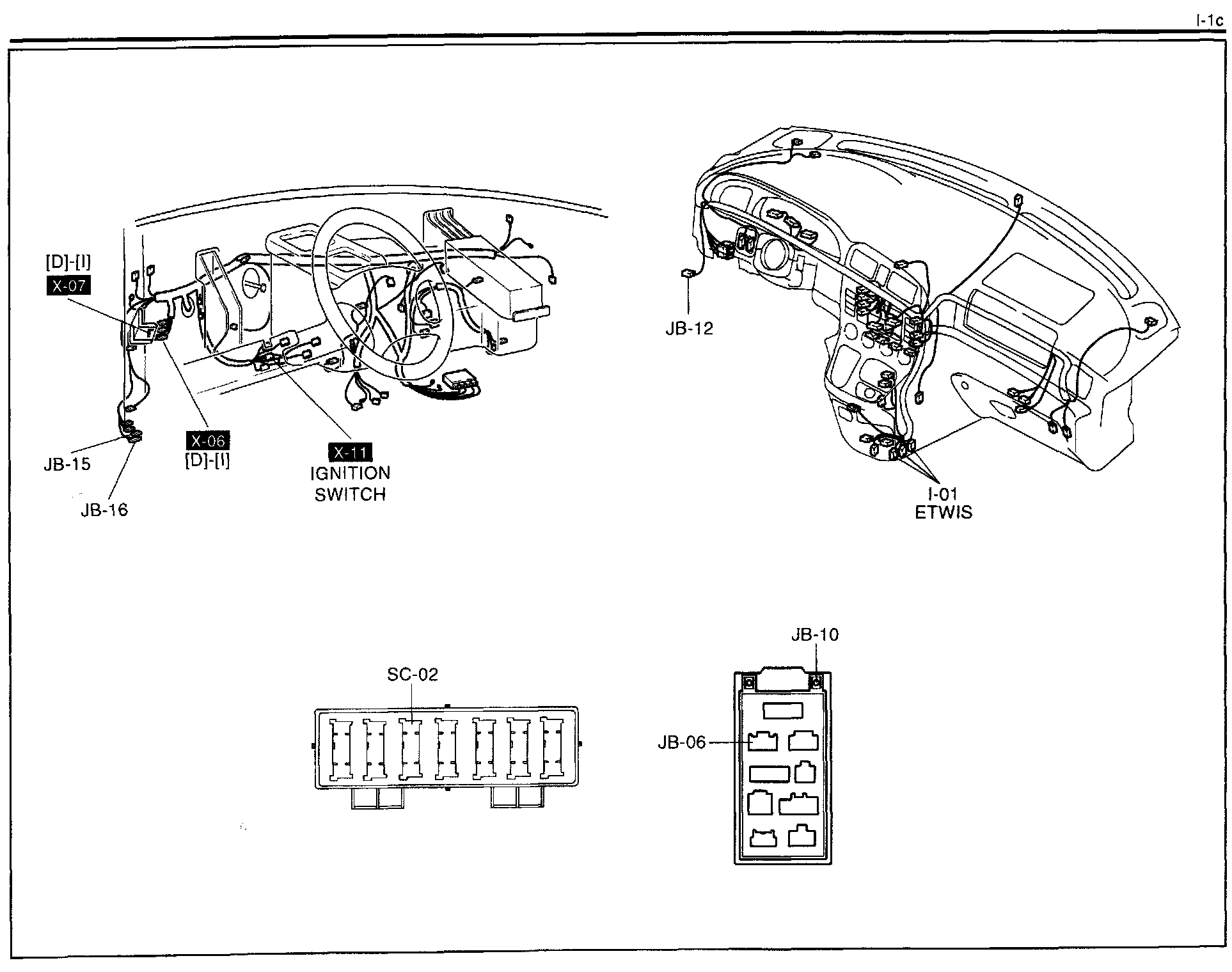

I-1c - ETWIS Harness/Connector Symbols:
