Jeep Truck
>>
2006
>>
Commander 4WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Accelerator Pedal Position Sensor
Accelerator Pedal Position Sensor

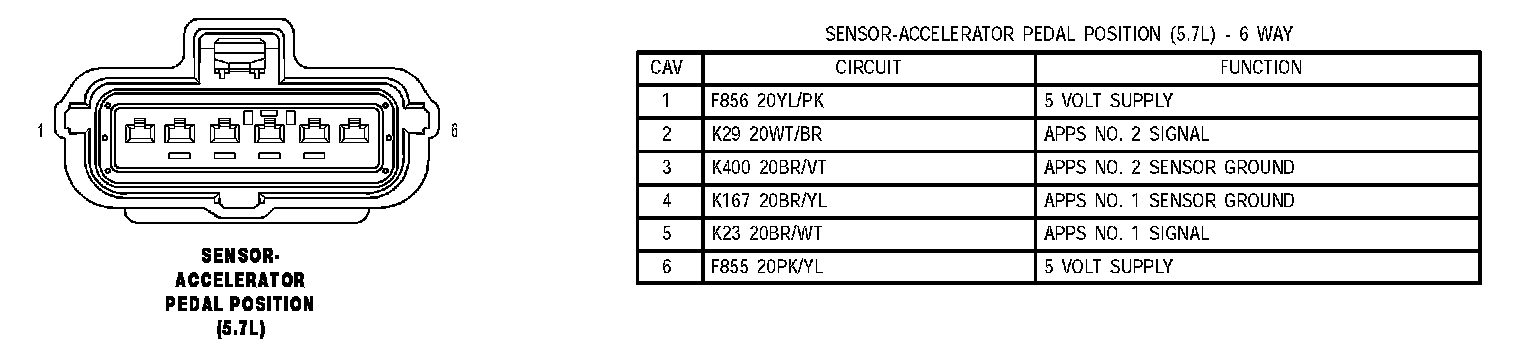

Sensor Accelerator Pedal Position (5.7L):
