Home
>>
Jeep Truck
>>
2005
>>
Liberty 2WD L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Body Control Module
Body Control Module

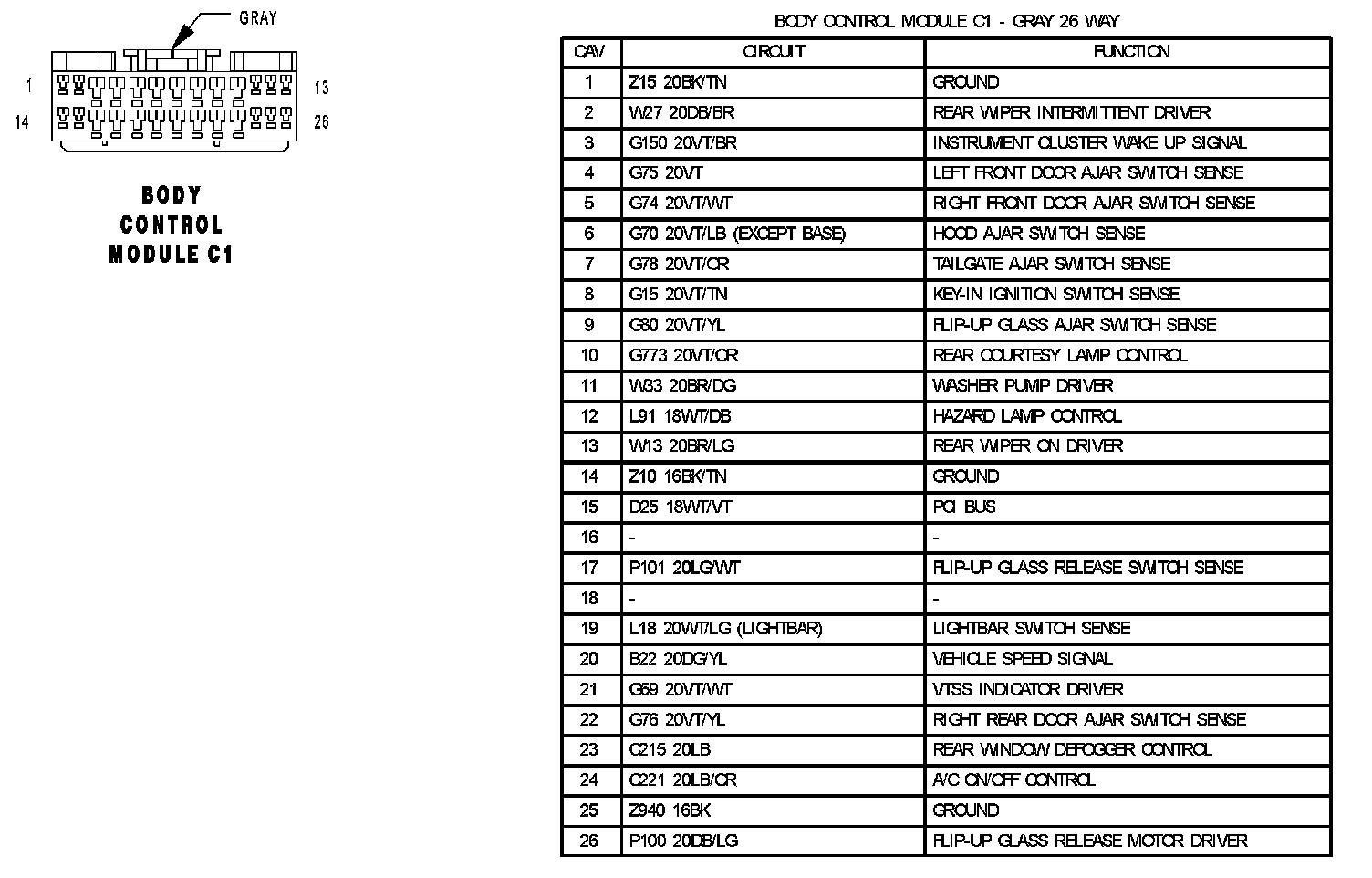

Body Control Module C1:

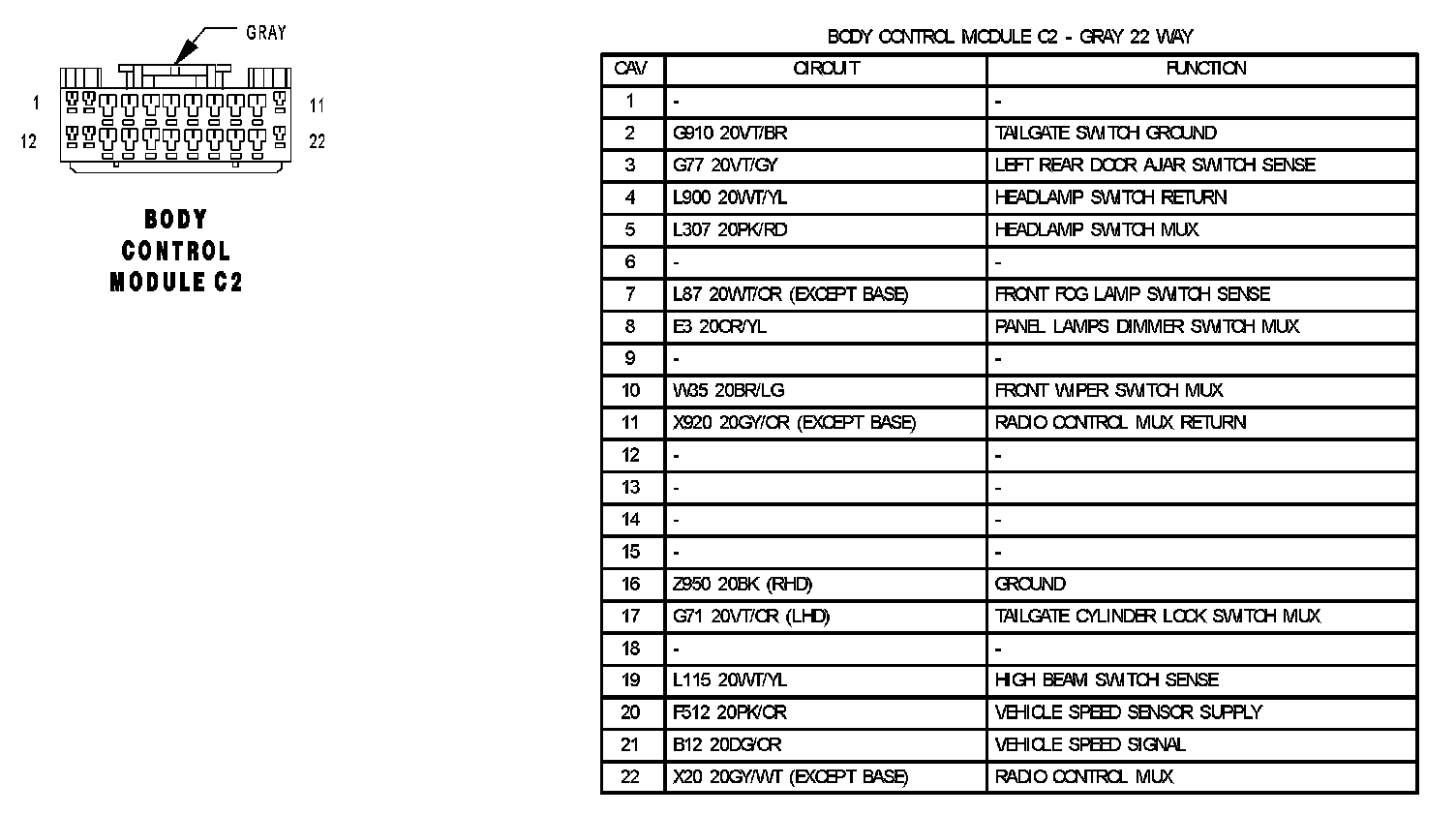

Body Control Module C2:
