Jeep Truck
>>
2004
>>
Wrangler L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
>>
Connector Locations
Connector Locations

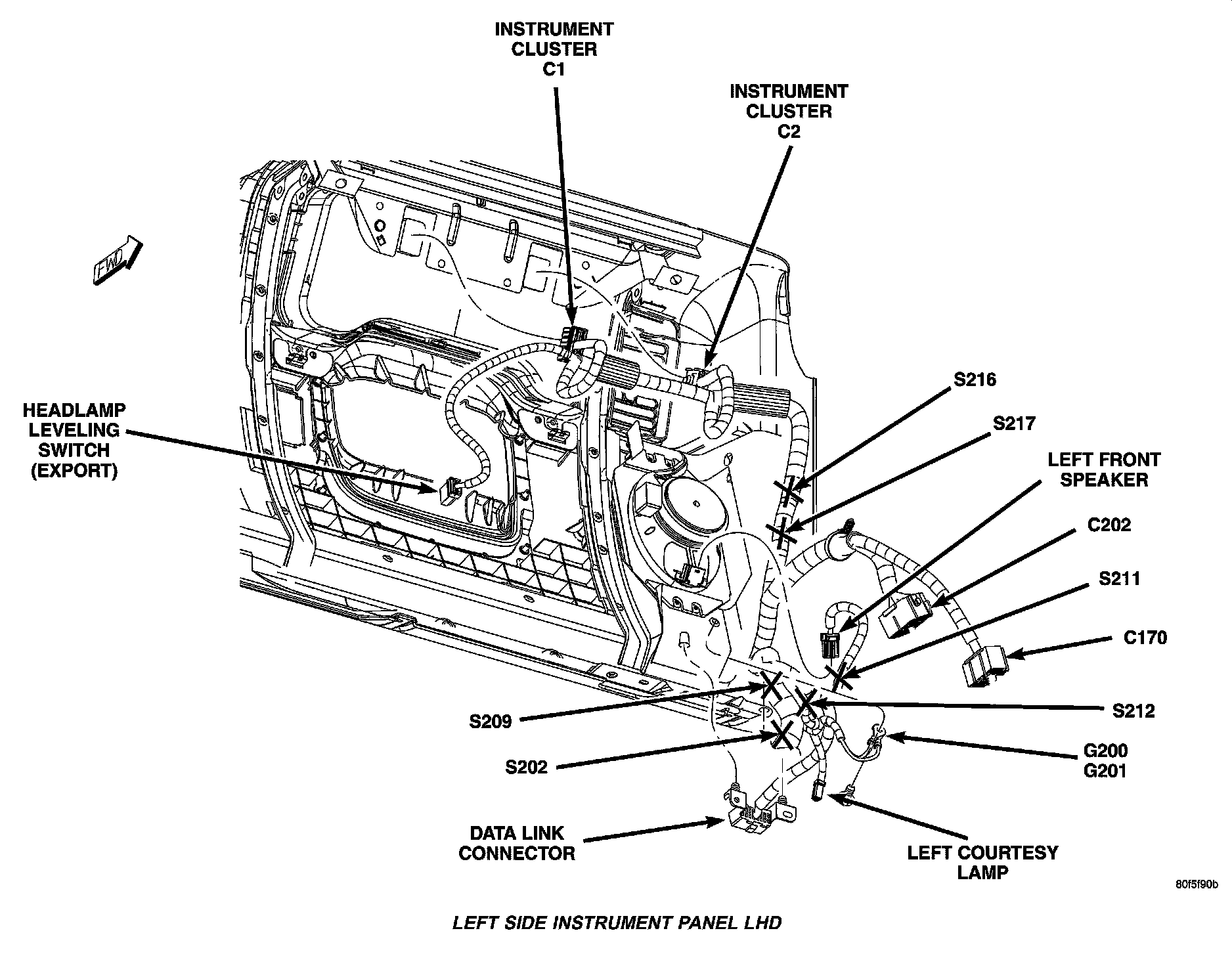

Left Side Instrument Panel LHD:

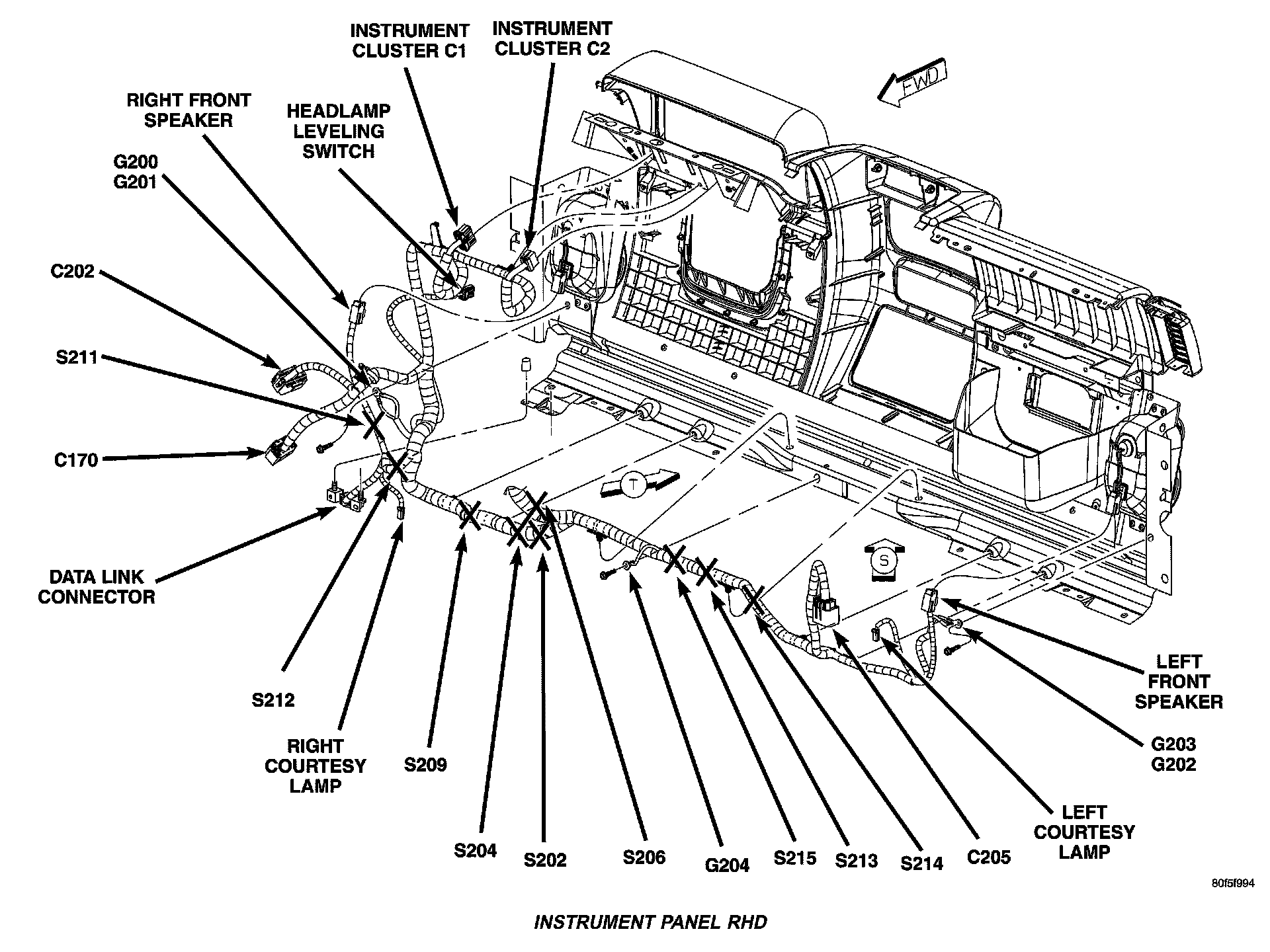

Instrument Panel RHD:
