Jeep Truck
>>
2004
>>
Wrangler L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

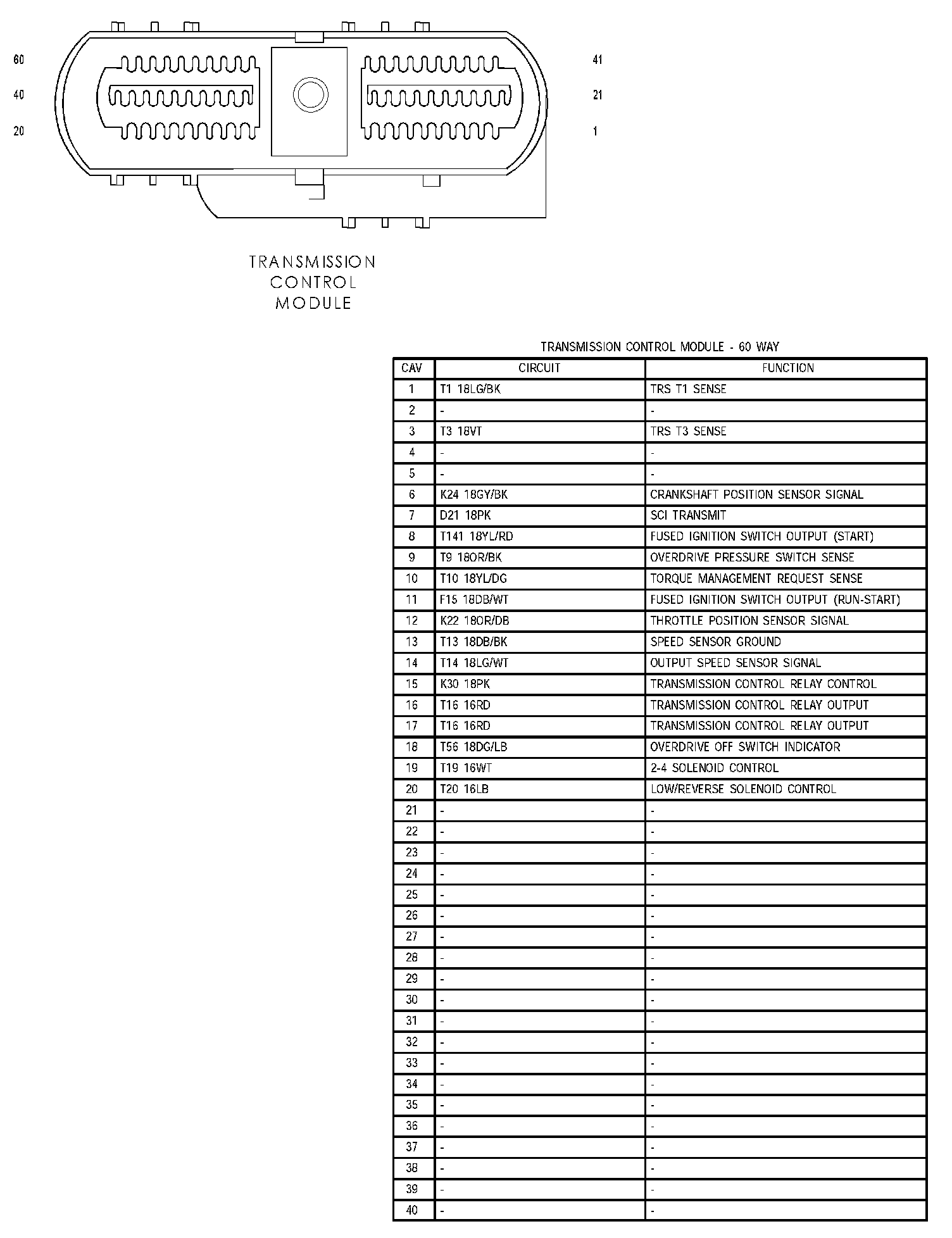

Transmission Control Module:

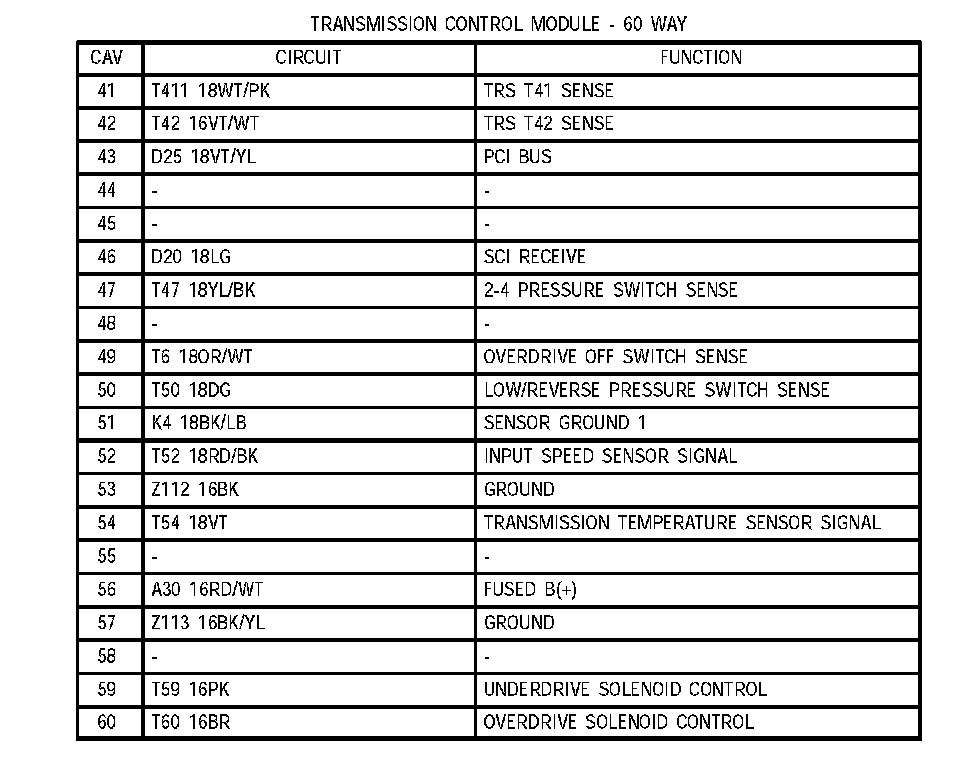

Transmission Control Module Part2:
