Hood Ajar Circuit Short to Ground (If Equipped)
Hood Ajar Circuit Short to Ground (If Equipped)

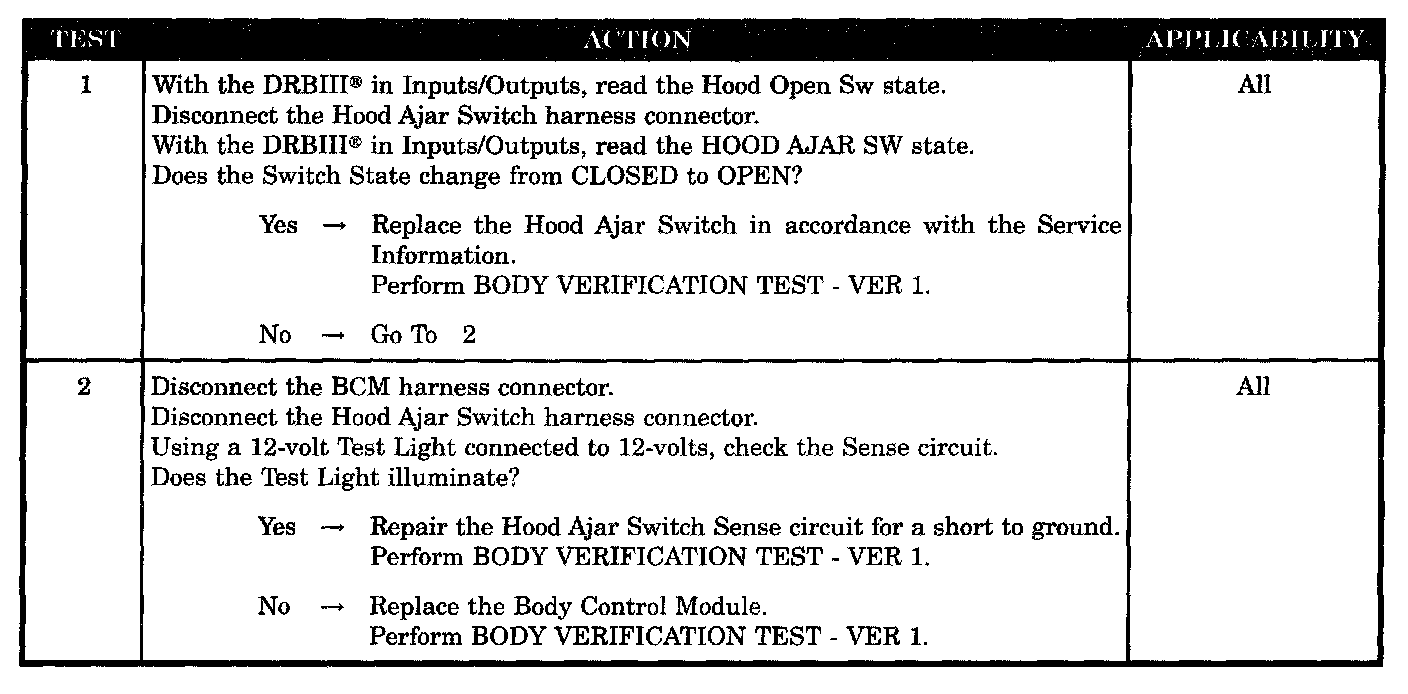

Test 1 - 2:
SYMPTOM
HOOD AJAR CIRCUIT SHORT TO GROUND (IF EQUIPPED)
POSSIBLE CAUSES
-
Hood ajar switch short to ground
-
Hood ajar switch sense circuit, short to ground
-
BCM
, short to ground
