Jeep Truck
>>
2003
>>
TJ (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Locations
>>
Connector Locations
Connector Locations

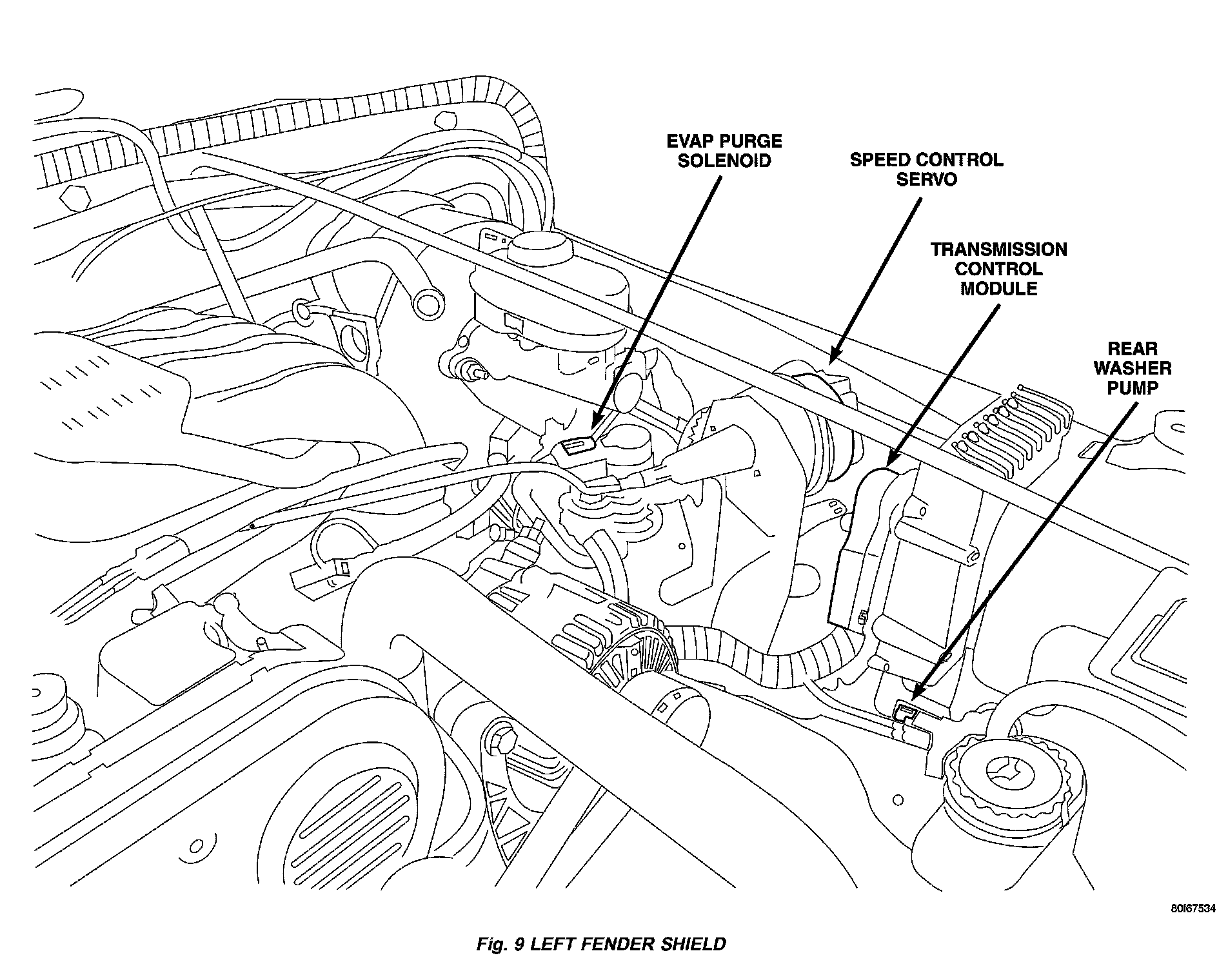

Fig.9 Left Fender Shield:
