Jeep Truck
>>
2003
>>
TJ (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Power Steering Pressure Switch
>>
Locations
>>
Connector Locations
Connector Locations

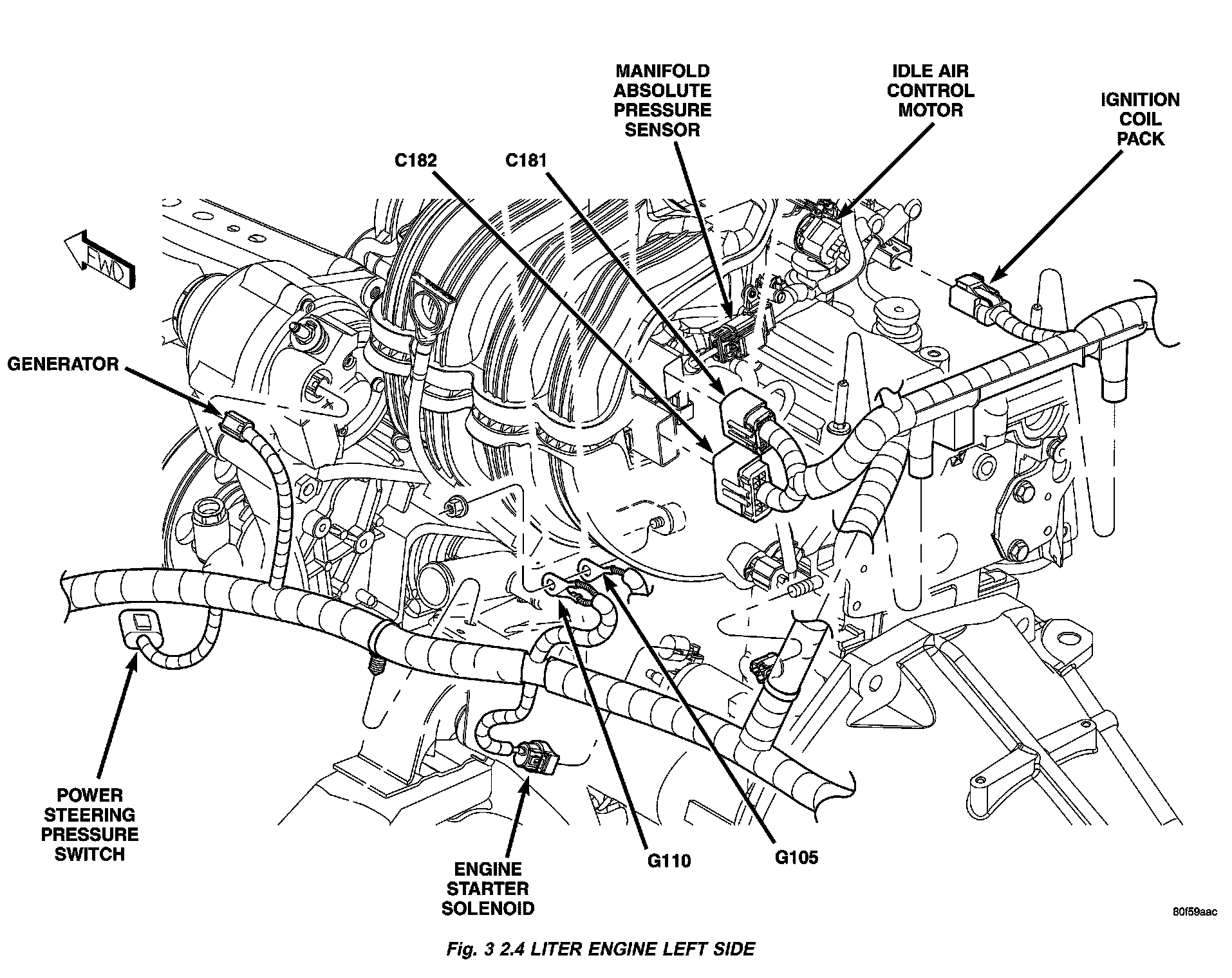

Fig.3 2.4L Engine Left Side:
