Home
>>
Jeep Truck
>>
2003
>>
Liberty 4WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Connector Locations
Connector Locations

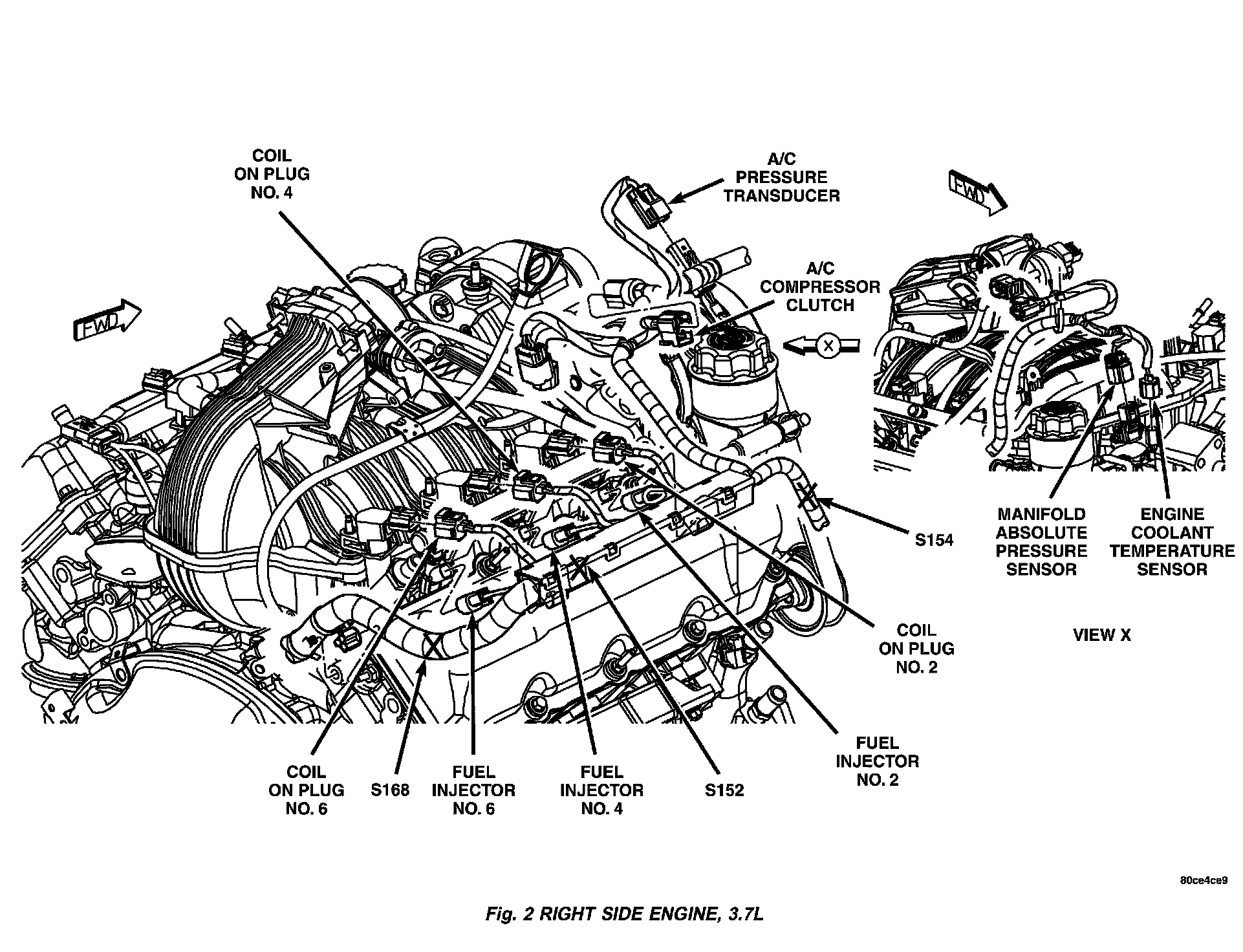

Fig. 2 Right Side Engine, 3.7L:
